ILF 33/44/55 Installation Manual
Rev 1.1 32

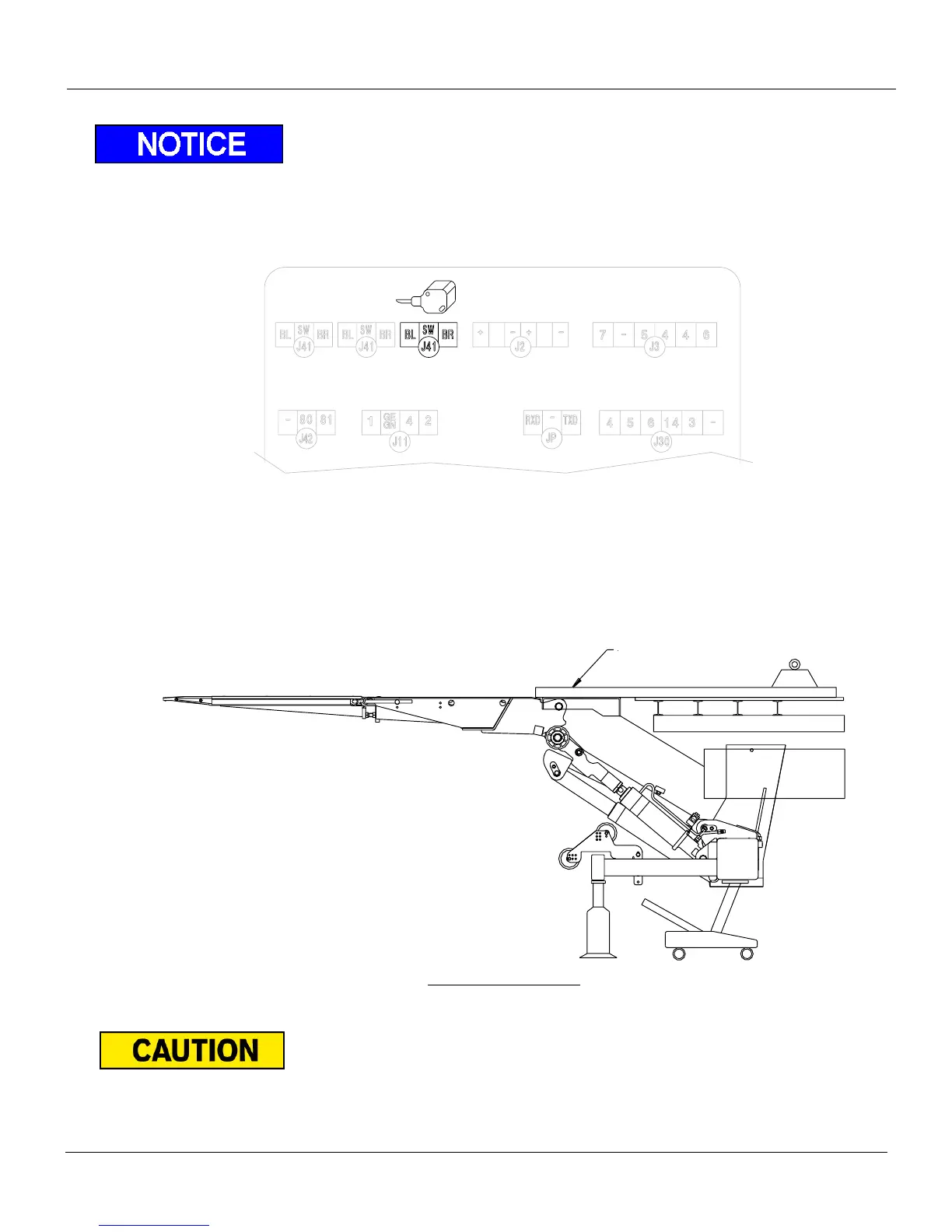

To adjust the tilt cylinder during installation, disconnect the B-15 sensor at J41 on the control board.
Remember to reconnect the B-15 sensor back into J41 on the control board after any
adjustments are done
.
4. After completion of the electrical installation, Raise platform to be flush with the 3” channels. If the
platform is not flush, the mount tube will need to be adjusted, remove tack welds and make
adjustments to get the platform to be flush. If the platform is leveled with the 3” channels, proceed
with completing the installation.
Supported Mount Frame
Be extremely cautious when testing. Remember that the Liftgate is only tack welded in place,
DO NOT APPLY A LOAD. Do not power up against the bed extension.
