2.1 Analog Output Unit
■

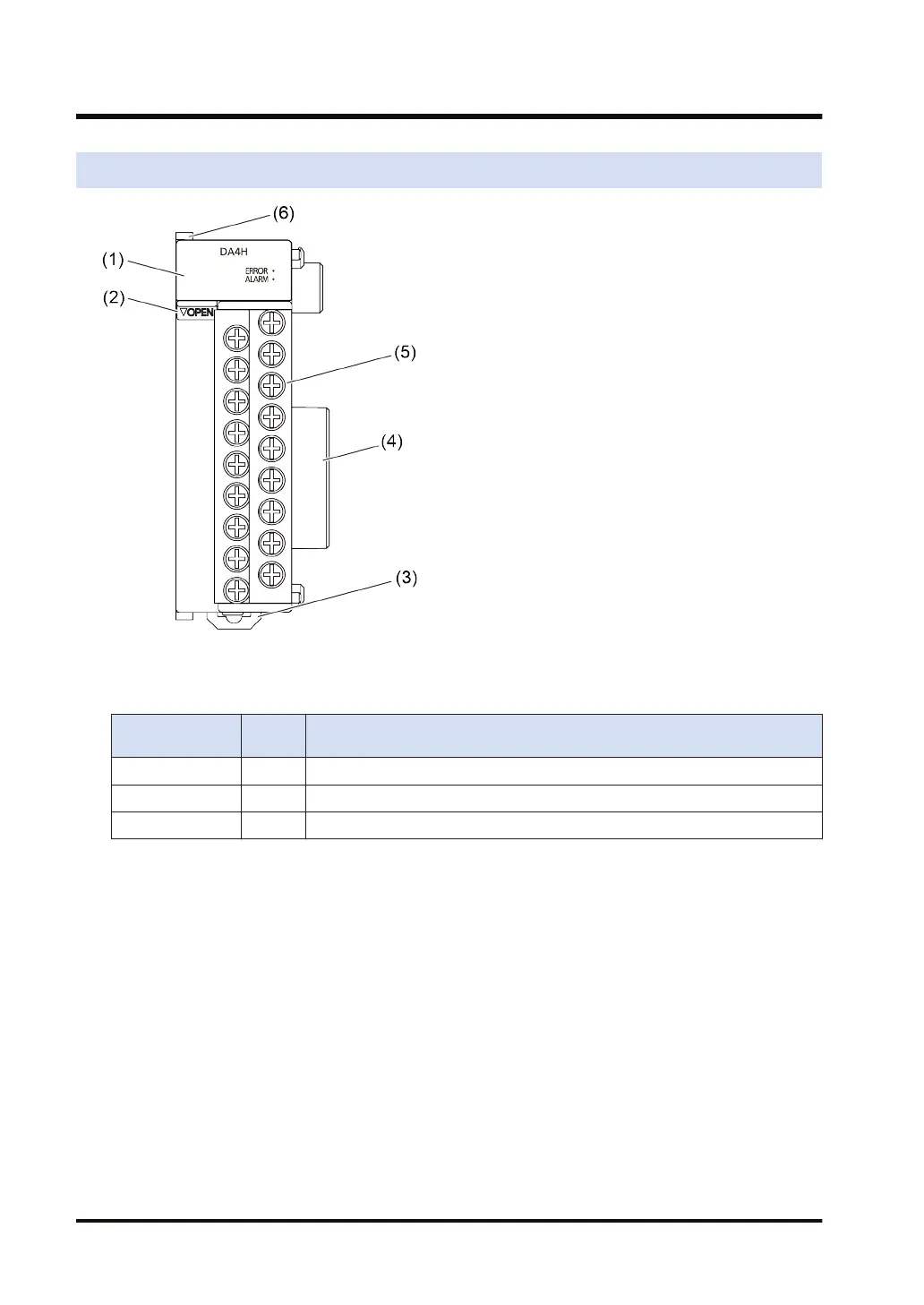

Names and functions of parts
(1) Operation monitor LEDs
LED name LED
color
Contents
- Blue Lit when the CPU unit is turned on.
ERROR Red Lit if the configuration settings are beyond the allowable range.
ALARM Red Lit if the hardware has an error.
(2) Terminal block release lever
To remove the analog output terminal block, push the release lever downward.
(3) DIN rail attachment lever
This lever is used to fix the unit to the DIN rail.
(4) Unit connector
Connects with I/O units and high-function units.
(5) Analog output terminal block
The terminal block is removable. Remove the terminal block before wiring. Solderless
terminals for M3 can be used.
(6) Fixing hook
This hook is used to fix two or more units to be connected.
2.1 Analog Output Unit
2-2 WUME-FP7AOH-03
