Panasonic AFP7DA4H - Voltage Range; Voltage Output Range: -10 to +10 V (0.32 MV, 1;62,500)

5.1 Voltage Range

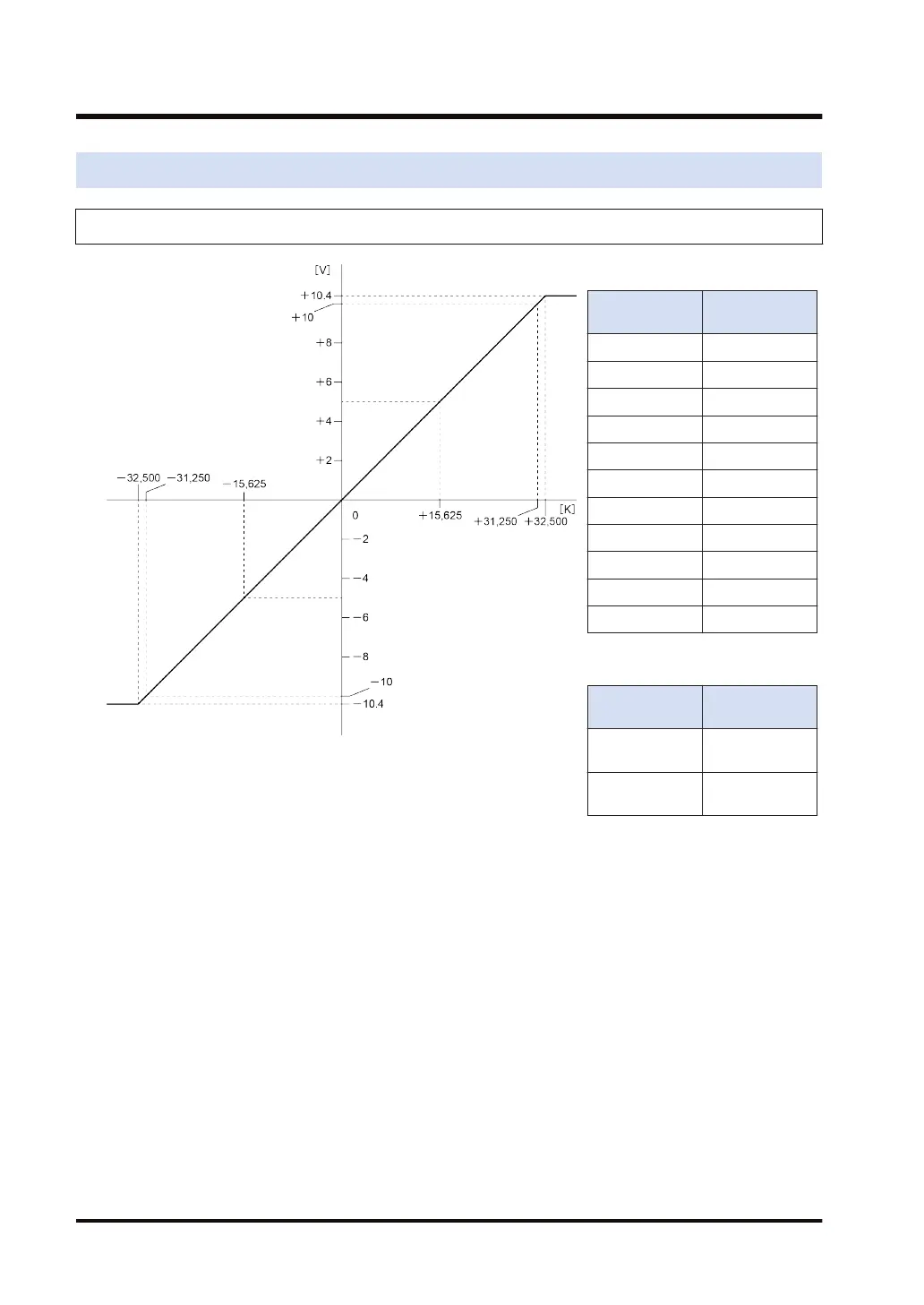

5.1.1 Voltage Output Range: -10 to +10 V (0.32 mV, 1/62,500)
Output range: -10 to +10 V
Digital input
value (K)
Analog output
value (V)
+31,250 +10
+25,000 +8
+18,750 +6
+12,500 +4
+6,250 +2
0 0
-6,250 -2
-12,500 -4
-18,750 -6
-25,000 -8
-31,250 -10
When exceeding the rated
range
Digital input
value
Analog output
value
+32,500 or
more
Output at +10.4
V
-32,500 or less Output at -10.4
V
5.1 Voltage Range
5-2 WUME-FP7AOH-03
