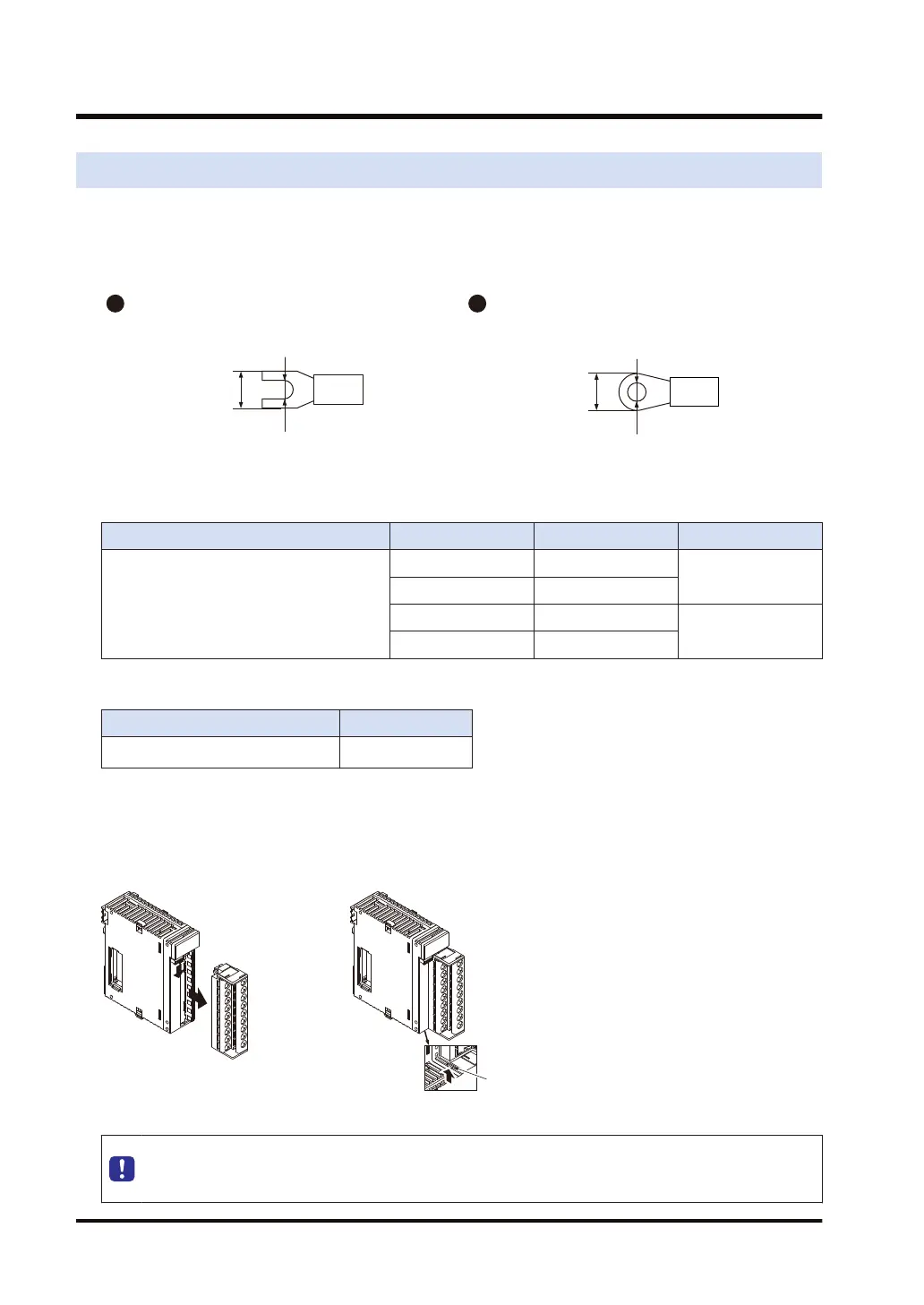

3.1 Wiring of Terminal Block
■
Suitable solderless terminals/wires
M3 terminal screws are used for the terminal. The following suitable solderless terminals are
recommended for the wiring to the terminals
3.2 mm or more
Fork type terminal
6 mm or less
Round type terminal
6 mm or less
3.2 mm or more
■
Suitable solderless terminals
Manufacturer Shape Part no. Suitable wires
J.S.T. Mfg Co., Ltd.
Round type 1.25-MS3
0.25 to 1.65 mm
2
Fork type 1.25-B3A
Round type 2-MS3
1.04 to 2.63 mm
2
Fork type 2-N3A
■
Suitable wires
Suitable wires Tightening torque
AWG22 to 14 (0.3 mm
2
to 2.0 mm
2
)
0.5 to 0.6 N∙m
■
Connection to the terminal block
Remove the terminal block before beginning the wiring operations.
To remove the terminal block, push downward the release lever located at the top of the
terminal block.
Lock button
<Bottom of unit>
● Install the terminal block by inserting it all the way to its original position and pressing the
lock button on the bottom of the unit. Then confirm that the terminal block is securely
attached and cannot be removed.
3.1 Wiring of Terminal Block
3-2 WUME-FP7AOH-03
