Panasonic AFP7DA4H - Analog Output Connections; Voltage Output (-10 to +10 V, 0 to +10 V, 0 to +5 V, and +1 to +5 V); Current Output (0 to +20 Ma and +4 to +20 Ma)

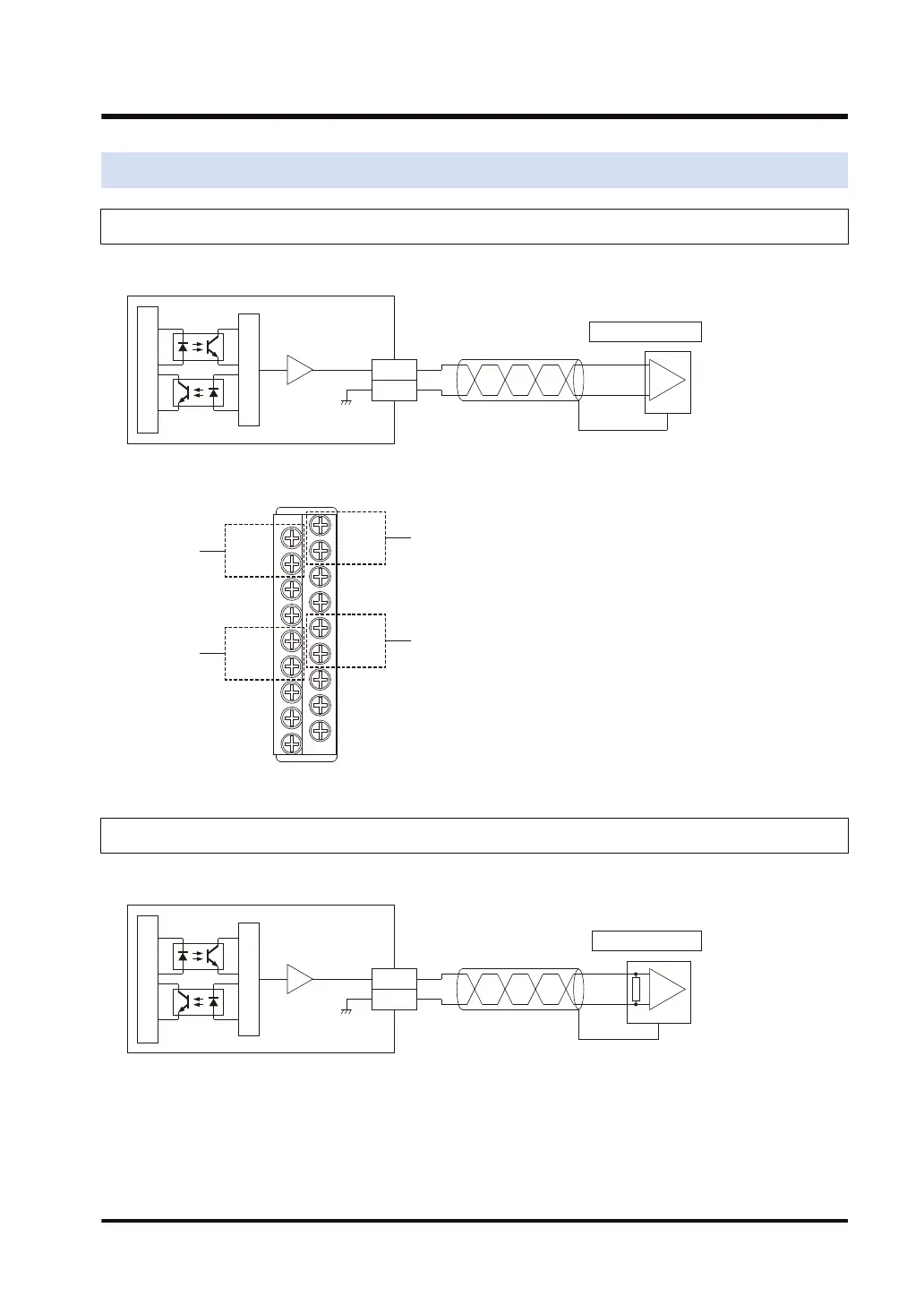

3.2 Analog Output Connections
3.2.1 Voltage Output (-10 to +10V, 0 to +10V, 0 to +5V, and +1 to +5 V)
■
Internal circuit diagram and connection diagram
OUTn
＋
－
COM
E
Internal circuit
Shield
Load equipment
D/A conversion circuit
■
Terminal layout
OUT0
COM
-
-
OUT2
COM
-
-
-
OUT1
COM
-
-
OUT3
COM
-
-
-
Output ch1
Output ch3
Output ch0
Output ch2
3.2.2 Current Output (0 to +20 mA and +4 to +20 mA)
■
Internal circuit diagram and connection diagram
OUTn
COM
＋
－
E
Load equipment
Internal circuit
Shield
D/A conversion circuit
3.2 Analog Output Connections
WUME-FP7AOH-03 3-3
