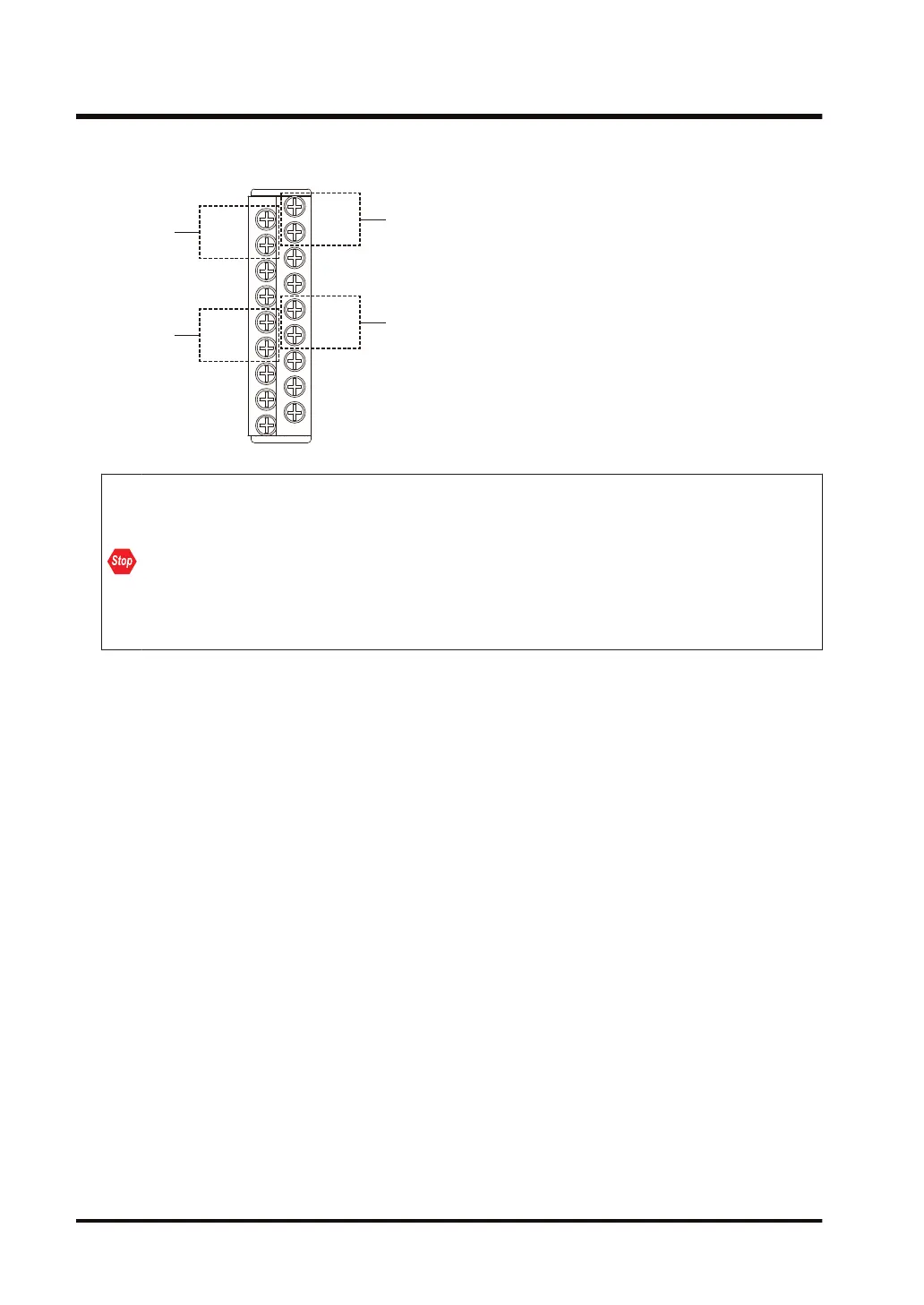

Terminal layout
OUT0
COM
-
-
OUT2
COM
-
-
-
OUT1
COM
-
-
OUT3
COM
-
-
-
Output ch1
Output ch3
Output ch0
Output ch2
● Use double-core twisted-pair shielded wires for analog output signals.
● Ground the shielding of the shielded wire on the load equipment side. However,
depending on the conditions of the external noise, it may be better to ground the shielding
externally or not to ground the shielding.
● Do not place the analog output wiring close to AC lines, high-tension lines, or load lines
other than PLC wires or bundle the analog output and other wires together.
● The NC terminals of the analog output terminal block are unused. Do not use these
terminals to relay wires because the terminals include those connected internally.
3.2 Analog Output Connections
3-4 WUME-FP7AOH-03
