6.5 Configuration by Programming
■
Overview of functions
● The FP7 analog output unit makes it possible to overwrite the configuration information by
programming.
● The configuration information is refreshed by writing "55AA" to unit memory UM 00028 after
the value is stored in the unit memory where a desired parameter is set.
● The value of unit memory UM 00028 will be set to "0" when the configuration information is
updated.
■

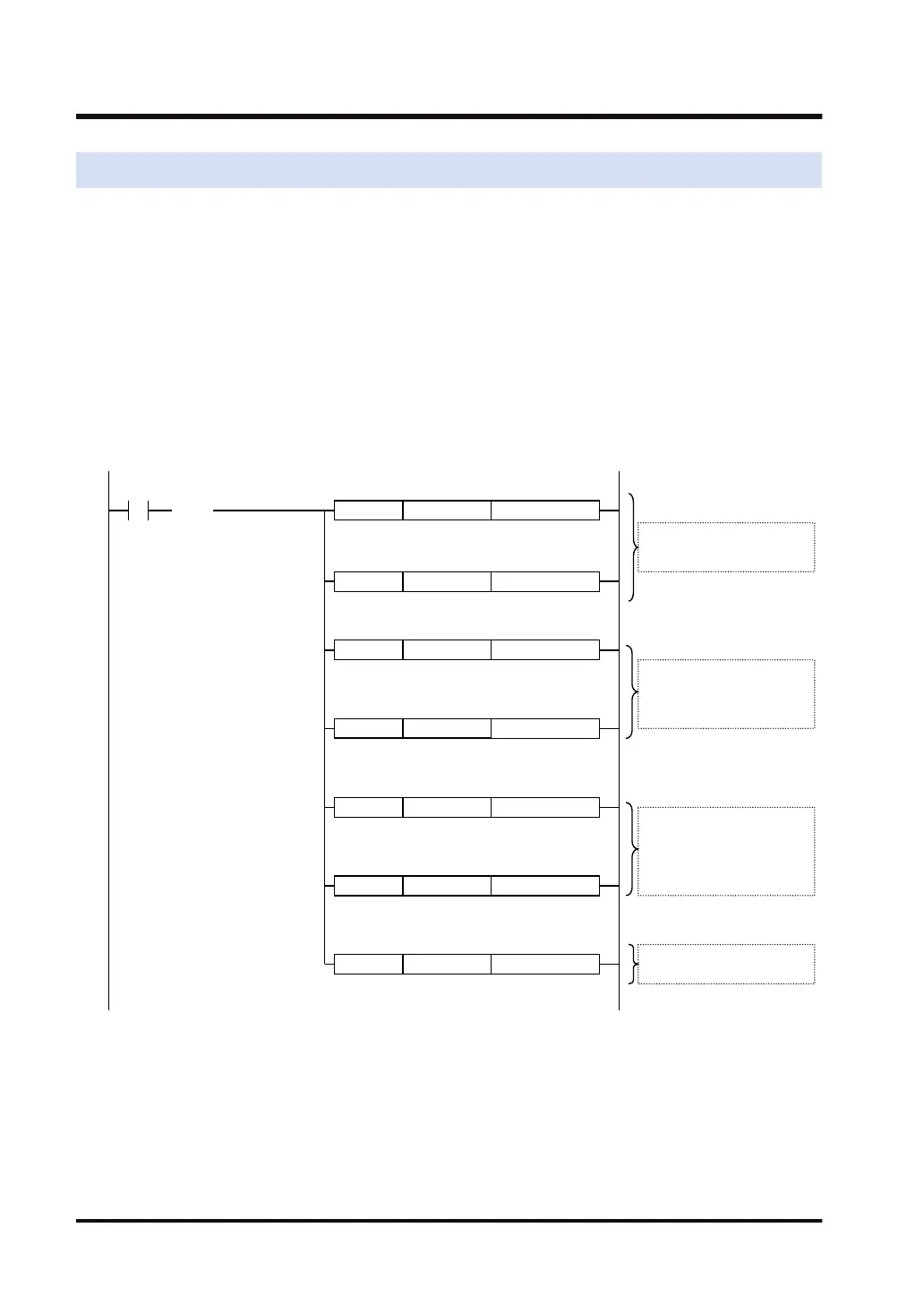

Sample program
Output processing: CH0 and CH1 are executed and CH2 and CH3 are non-executed for the
implementation output range of 0 to +20 mA.
MV.US S1: UM00108H0001
R0
Setting updating
( )DF
MV.US S1: UM00109H0010
MV.US
S1: UM00108
H0010
MV.US
S1: UM00139
H0000
MV.US S1: UM00151H0000
MV.US S1:UM00028H55AA
Setting CH2 and CH3
to non-execute
Output range:
Set CH0 to CH1 to 0
to +20 mA
Output processing:
Execute
MV.US S1: UM00118H0001
