Configuration
Name Default Setting range and description
Upper limit of upper and lower
output clipping
K0 Set the upper limit to turn ON the upper limit relay for the use of
the function of clipping upper and lower output limits.
Setting range: -32,500 to +32,500 (Specified with a signed
integer)
Lower limit of upper and lower
output clipping
K0 Set the lower limit to turn ON the lower limit relay for the use of the
function of clipping upper and lower output limits.
Setting range: -32,500 to +32,500 (Specified with a signed
integer)
■

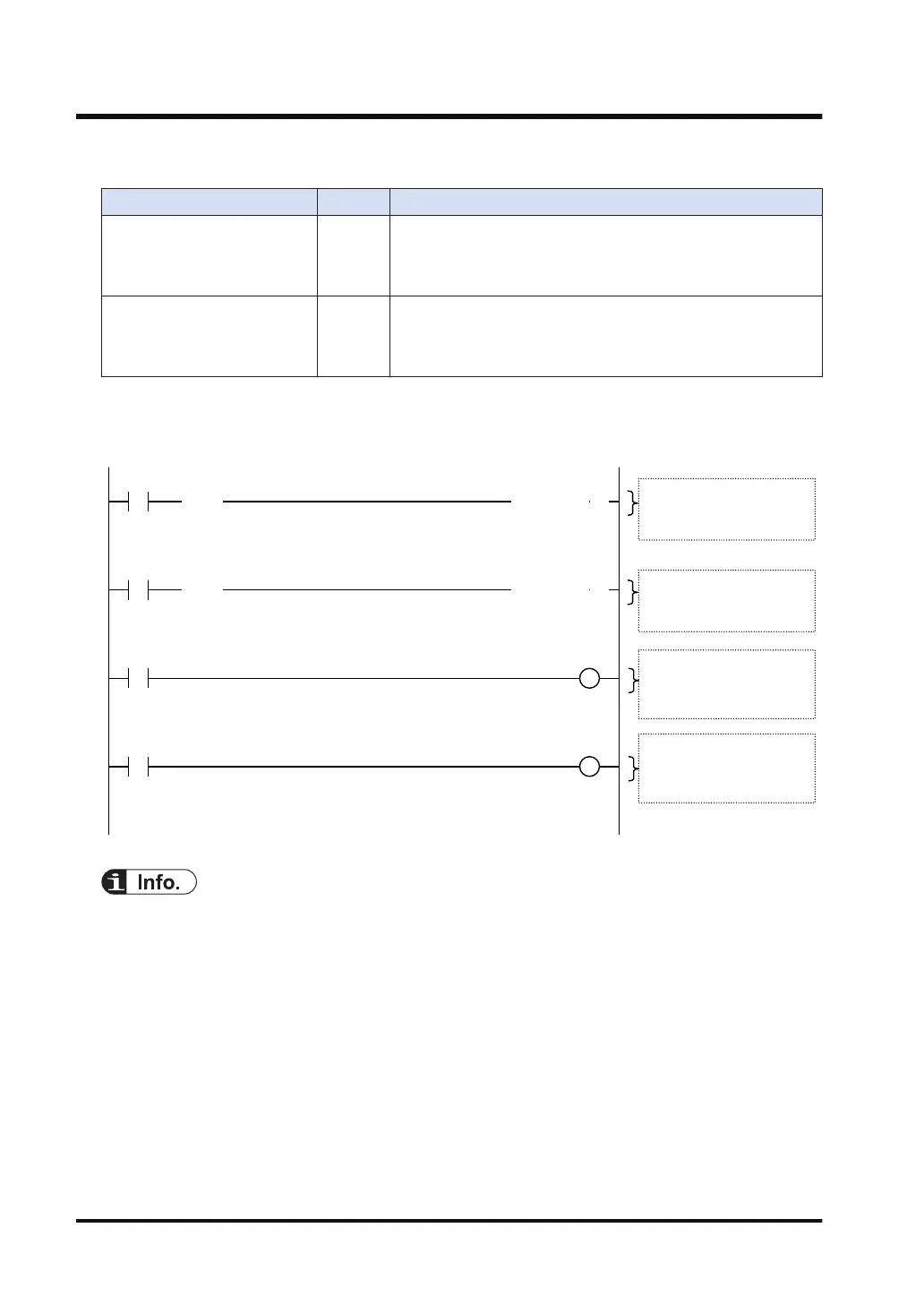

Sample program
Example) CH0 shows control examples for cases exceeding the upper and lower limits.
R1
Y110
Upper and lower
limit execution
relay
(CH0)
Turn OFF the
execution relay.
RST< >
R0 Y110
Upper and lower
limit execution
relay
(CH0)
Turn ON the execution
relay.
SET< >
X101
Y200
X102
Y201
Upper limit
relay
Lower limit
relay
(CH0)
Turn ON Y201 when
the value drops below
the lower limit.
(CH0)
Turn ON Y200 when
the value exceeds the
upper limit.
( )DF
( )DF
● Upper and lower limit settings are used to clip the output according to the resolution of the
original output range regardless of whether scale conversion is set or not.
6.3 Settings for Upper and Lower Output Clipping
