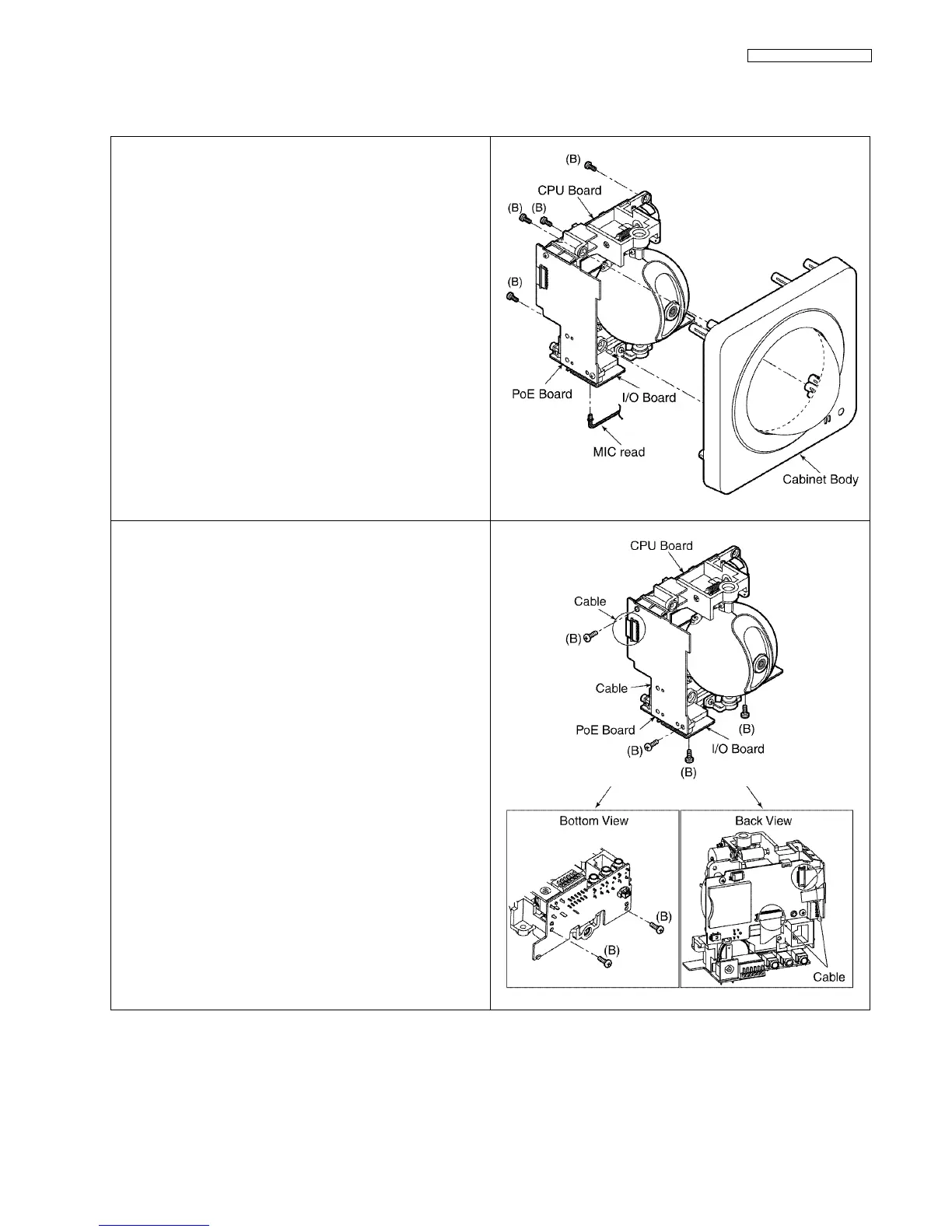

8.1.2. How To Remove I/O Board and PoE Board
• 1, 2 are the same as 8.1.1. How To Remove CPU Board (P.46).
3. Remove four Screws (B).
4. Remove MIC read.
5. Remove CPU Board, I/O Board and PoE Board.
6. Remove four Screws (B) and two Cables, and remove I/O Board and
PoE Board.
