BB-HCM511A/BB-HCM531A

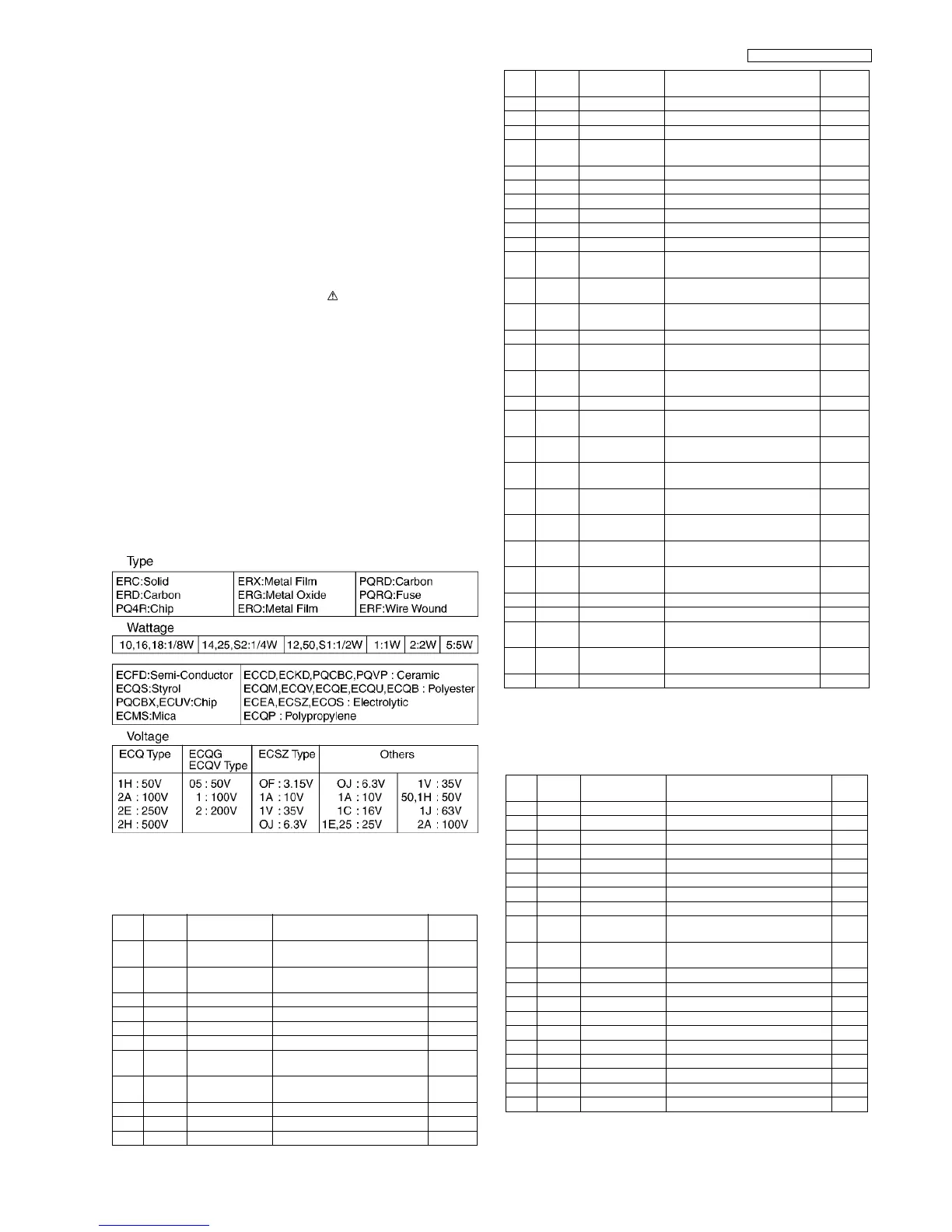

14.3. Replacement Parts List
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability depends on
the type of assembly and the laws governing parts and
product retention. At the end of this period, the assembly
will no longer be available.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example : ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF), p=µ(µF)
*Type & Wattage of Resistor
14.3.1. Cabinet and Electrical Parts
14.3.2. Accessories and Packing Materials
14.3.2.1. BB-HCM511A
Safe
ty
Ref.
No.
Part No. Part Name & Description Remarks
1 PQKF10727Y1 C A B I N E T C O V E R
(for BB-HCM511A)
PC+ABS-
V0
1 PQKF10727W1 C A B I N E T C O V E R
(for BB-HCM531A)
PC+ABS-
V0
2 PQHG10740Z R U B B E R P A R T S
3 PQHX11471Z SPACER, SHEET PET-HB
4 PQHX11472Z SPACER, SHEET PET-HB
5 PQBC10495Z P U S H B U T T O N A B S - H B
6 PQKM10741Y1 C A B I N E T B O D Y
(for BB-HCM511A)
PC+ABS-
V0
6 PQKM10741X1 C A B I N E T B O D Y
(for BB-HCM531A)
PC+ABS-
V0
7 PSMG1007Z R U B B E R P A R T S
8 PSJM1009Z BUILT-IN MICROPHONE
9 PQHR11269Z OPTIC CONDUCTIVE PARTS ABS-HB
10 PQKV10064Z1 C O V E R A B S - H B
11 PQKV10062Z C O V E R P C - H B
12 PQWQ2HCM515A PAN MOTOR UNIT
13 PQUA10016Z C H A S S I S A B S -
GF20-HB
14 PQJE10180X L E A D W I R E
15 PQJE10181X L E A D W I R E
16 PQNPA062095 S P A C E R
17 PQHR11272Z PAN GEAR POM-HB
18 PQHR11273Z SPACER, PAN CAP POM-HB
19 PQHR11270Z SPACER, EYE LOCK ABS-HB
20 PQKE10468Z1 C O V E R P C + A B S -
V0
21 PQKV10065Z1 C O V E R P C + A B S -
V0
22 PQKE10469Z1 C O V E R P C + A B S -
V0
23 PQWQ1HCM515A TILT MOTOR UNIT
24 PQGT19408Z NAME PLATE
(for BB-HCM511A)
24 PQGT19421Z NAME PLATE
(for BB-HCM531A)
25 PQQT23338Z LABEL, JACK
26 PQQT23342Z LABEL, INDOOR
(BB-HCM511A Only)
27 PQHG10744Z R U B B E R P A R T S
(BB-HCM531A Only)
28 PQHG10746Z R U B B E R P A R T S
(BB-HCM531A Only)
29 PSHX1244Z WATER SHIELD PARTS
(BB-HCM531A Only)
30 PQHG10745Z R U B B E R P A R T S
(BB-HCM531A Only)
(A) PQHV2610PJ65 TAPPING SCREW
(for BB-HCM511A)
S
(A) XTN26+10GVW TAPPING SCREW
(for BB-HCM531A)
(B) XTB2+6GFJ TAPPING SCREW
(C) XWG26D12VW W A S H E R
(D) XTB2+6GFJ TAPPING SCREW
(for BB-HCM511A)
(D) XTB2+6GVW TAPPING SCREW
(for BB-HCM531A)
Safe
ty
Ref.
No.
Part No. Part Name & Description Remar
ks
A1 PQKL10082Z1 FLEXIBLE STAND S
A2 PQME10080Z ANGLE, SAFETY WIRE
A3 XTB4+20AFJ TAPPING SCREW
A4 PQHV2610PJ65 TAPPING SCREW S
A5 XWG26D12VW WASHER
A6 XWG4F16VW WASHER
A7 PQQX15704YCD INSTRUCTION BOOK (CD-ROM) S
A8 PQQW15579Z LEAFLET
A9 PQQX15757Z INSTRUCTION BOOK,
Setup Guide
A10 PQQX15758Z INSTRUCTION BOOK, Instal-
lation Guide
A11 PQQX15756Z LEAFLET
P1 PQPK15678Z GIFT BOX
P2 PQPN11794Z ACCESSORY BOX
P3 PQPD10786Z CUSHION
P4 PQPH10097Z PACKING SHEET
P5 XZB20X30A05 PROTECTION COVER
P6 PQPD10787Z CUSHION
P7 PQPD10865Z CUSHION
Safe
ty
Ref.
No.
Part No. Part Name & Description Remarks
