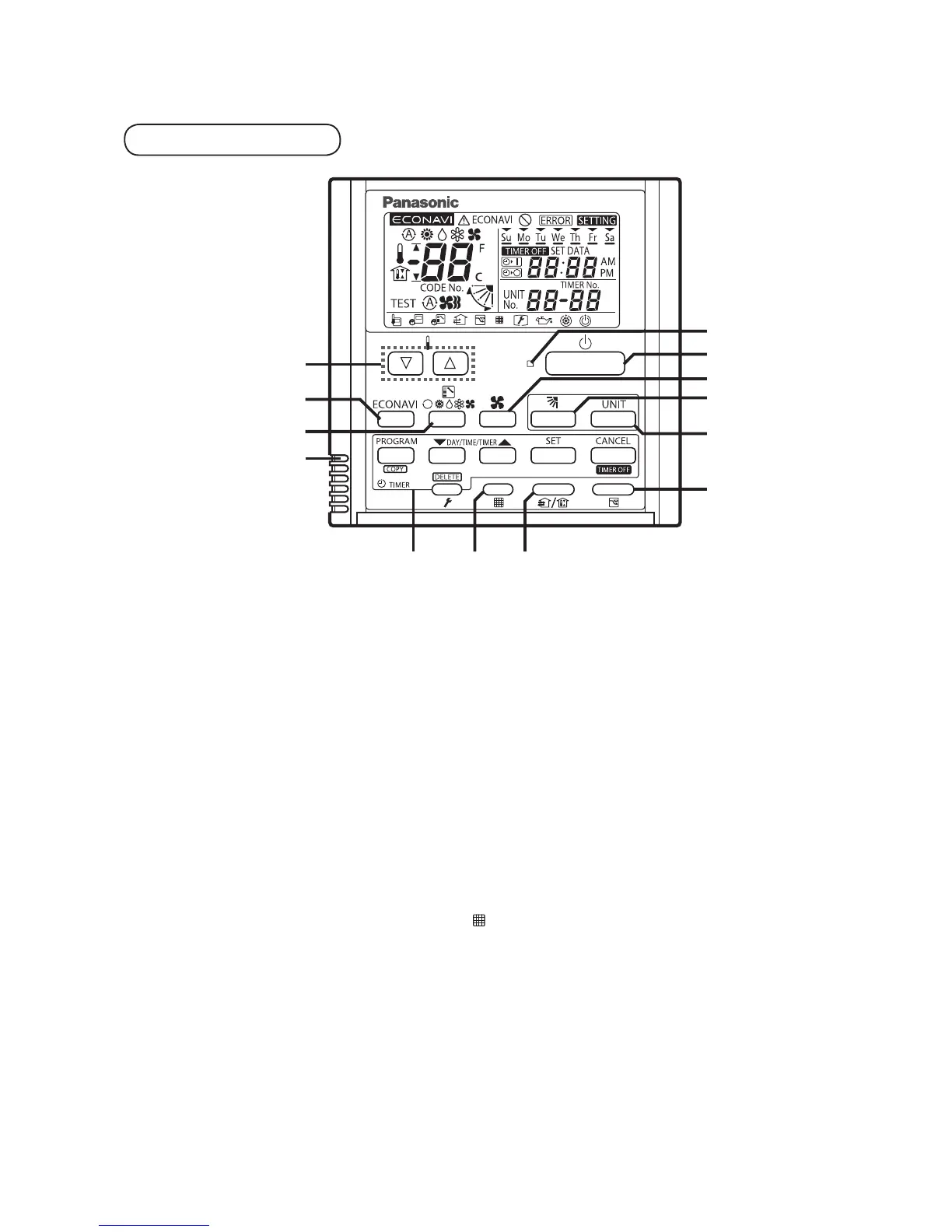

Part Names
1 Operation indicator
Illuminates during operation. Blinks during alarm.
2 Start/Stop button
Starts/Stops operation.
3 Fan speed
Changing the fan speed.
4 Swing/Air direction
Use this button to set the auto swing or air direction to a specifi c angle.
5 Unit select
When more than one indoor unit is operated by one remote control unit, this button is used to
select a unit when adjusting the air direction.
6 Sleeping
7 Ventilation
Use this button when you installed a fan available in the market. Pressing this button turns on
and off the fan. When turning off the air conditioner, the fan will be also turned off.
8 Filter reset
Use this button to reset the fi lter sign. When is displayed, press this button after cleaning the
fi lter.
9 Timer setting buttons
10 Remote control sensor
Normally, the temperature sensor of the indoor unit is used to detect the temperature.
However, it is also possible to detect the temperature around the remote control unit.
11 Mode select
Pushing this button selects an operation mode.
12 ECONAVI
Use this button to turn on/off the ECONAVI Function.
13 Temperature setting buttons
Changing the temperature setting.
Control panel
