5. Error occurring Disc type is displayedfor 5
seconds.
6. Disc Maker ID is displayed for 5 seconds.
7. Factor of Drive Erroroccurring is left displayed
Incase that the
supplier cannot be
identified, display is
black out.
Delete the Last Drive
Error
Delete the Last Drive Error
information stored on the DVD
RAM-Drive.
Press [9] [6] in
service mode.

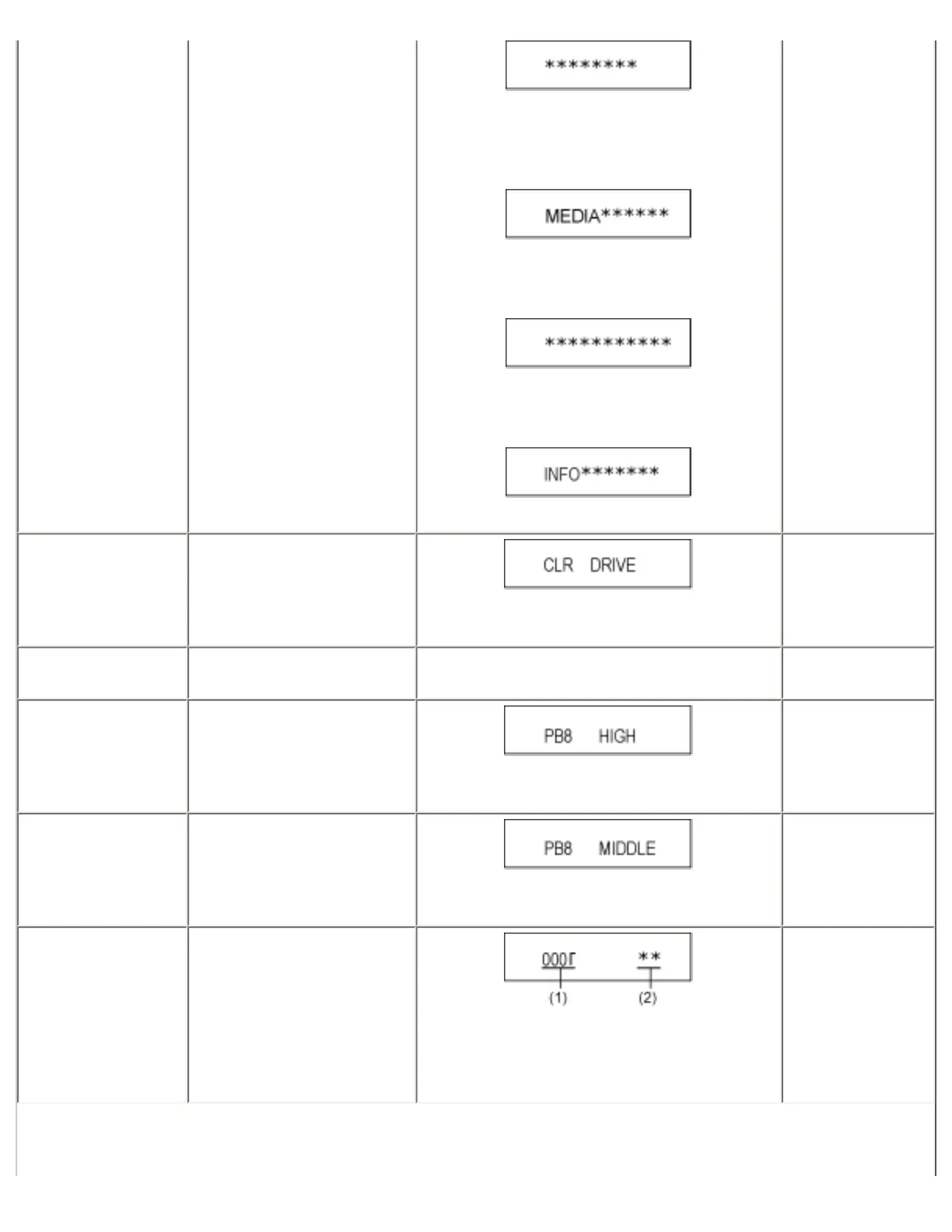

Turn on all FL/LEDs All segments of FL and all
LEDs are turned on.
All segments are turned on. Press [5] [1] in
service mode.
PB HIGH Signal
Output
8 pin of AV 1 Jack (PB HIGH
terminal) is High (approx. 11V
DC).
Press [5] [2] in
service mode.
PB MIDDLE Signal
Output
8 pin of AV 1 Jack (PB HIGH
terminal) is Middle (approx.
5.5V DC).
Press [5] [3] in
service mode.
Front connection
inspection
Press all front keys and check
the connection between Main P.
C.B. and Front P.C.B.
(1) Each time a key is pressed, segment turned on
increases one by one.
(2) Total umber of keys that have been pressed.
Press [5] [4] in
service mode.
