Panasonic DMR-E53EG - Page 44

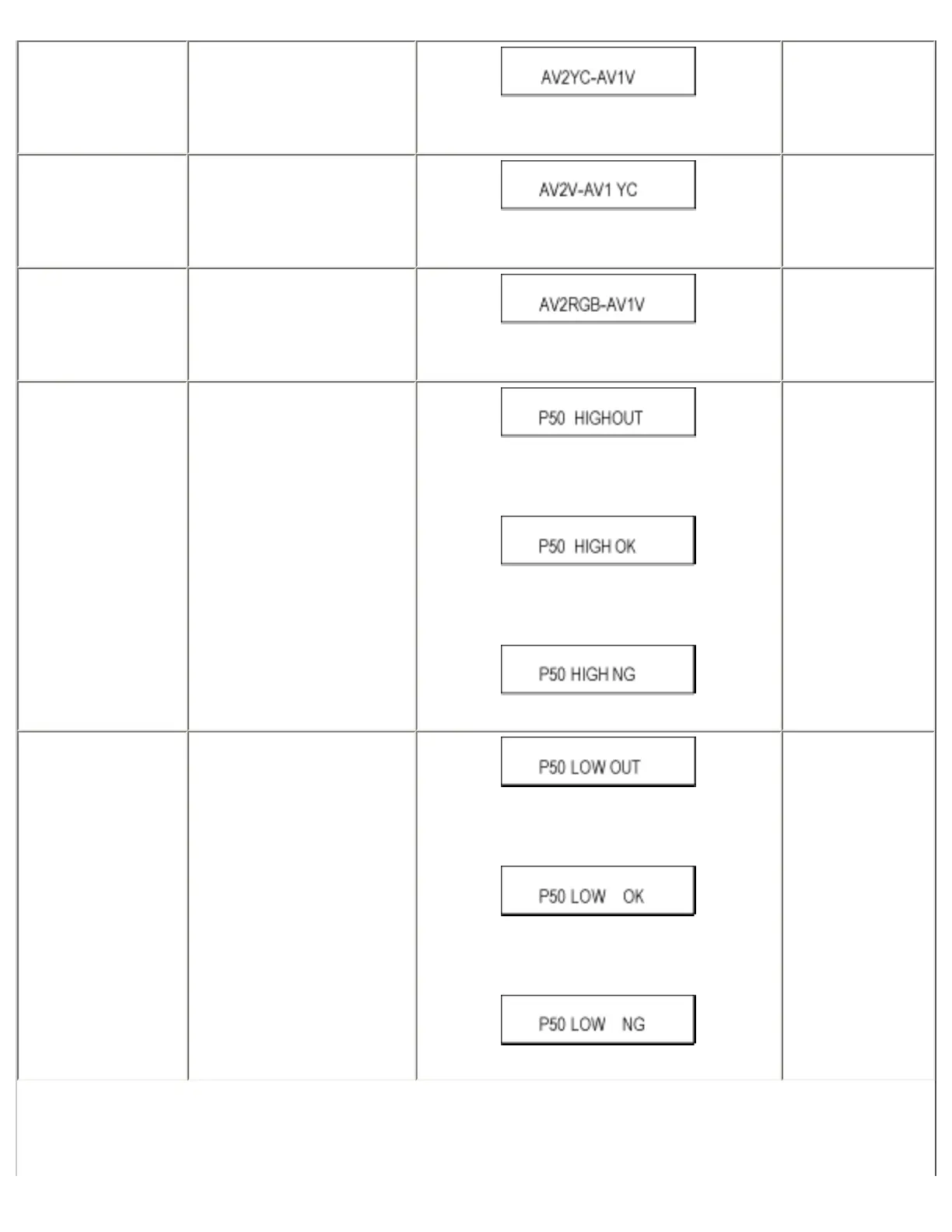

AV2(Y/C)/AV1(V) I/
O Setting
Set input to AV2(Y/C) and set
output to AV1(V) for I/O
checking
Press [8] [1] in
service mode.
AV2(V)/AV1(Y/C) I/
O Setting
Set input to AV2(V) and set
output to AV1(Y/C) for I/O
checking
Press [8] [2] in
service mode.
AV2(RGB)/AV1(V) I/
O Setting
Set input to AV2(RGB) and set
output to AV1(V) for I/O
checking
Press [8] [3] in
service mode.
P50 (H) Output Timer Microprocessor IC7501-
22 output High signal for AV1-
pin 10 passing through inverter
(approx. 0V DC at AV1-pin
10).
When OK.
When NG.
Press [8] [4] in
service mode.
P50 (L) Output Timer Microprocessor IC7501-
22 output Low signal for AV1-
pin 10 passing through inverter
(approx. 4.4 V DC at AV1-pin
10).
When OK.
When NG.
Press [8] [5] in
service mode.
