11
RQT8858

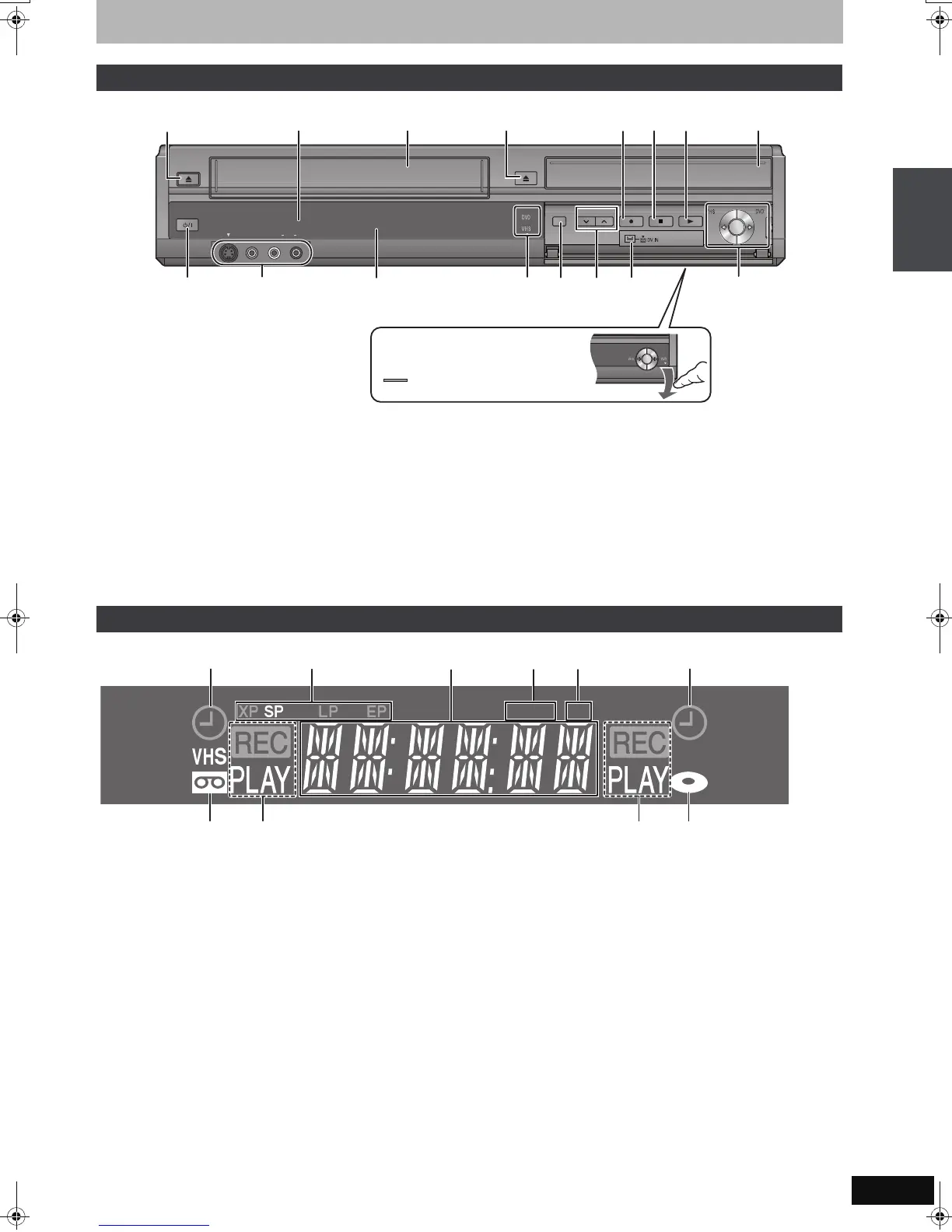

1 Cassette eject button (➡ 12)
2 Disc tray open/close button (➡ 12, 32)
3 Start recording button (➡ 22)
4 Stop button (➡ 22, 33, 40)
5 Play/x1.3 button (➡ 32, 40)
6 Standby/on switch (Í/I) (➡ 18)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
7 AV2 input terminals (➡ 54)
8 DVD/VHS drive indicator (➡ 22, 32, 40)
≥Lights when the DVD or VHS drive is selected.
9 DRIVE SELECT button (➡ 22, 32, 40)
≥Drive changes each time you press [DRIVE SELECT].
: Channel Select button (➡ 21, 22)
; DV IN terminal (for a digital video camcorder) (➡ 54)
< One Touch Copying operation button
≥From VHS to DVD (➡ 49)
≥From DVD to VHS (➡ 51)
Common to DVD/VHS
[A] Recording mode indicator (➡ 22, 23)
[B] Main display
≥Current time
≥Disc recording and play counter
≥VHS recording and play counter
≥Miscellaneous messages, etc.
[C] Copying indicator
[D] Digital broadcast indicator
Lights when the unit is receiving digital broadcast or TV Guide
data.
VHS
1 Timer recording indicator (
F
) (➡ 26)
On:
When a timer recording programme is registered and a
recordable video cassette is inserted.
Flashes:
When the unit cannot record a timer recording programme (e.g.,
there is no video cassette, etc.).
2 Tape indicator
3 Tape operation status
DVD
1 Timer recording indicator (
F
) (➡ 26)
On:
When a timer recording programme is registered and a
recordable disc is inserted.
Flashes:
When the unit cannot record a timer recording programme (e.g.,
there is no disc, etc.).
2 Disc operation status
3 Disc indicator
Main unit
S VIDEO
IN 2
VIDEO
/MONO
AUDIO
R
L
S VIDEO
VIDEO
/MONO
AUDIO
R
L
AV2 IN
DRIVE SELECT
REC
CH
OPEN/CLOSE
EJECT
COPYING
6
1
2
4
3
5
7
8
9
:
;
<
Opening the front panel
Press down on the
part with your finger.
Remote Control
signal sensor
Cassette
compartment
The unit’s display
Disc tray
The unit’s display
DCOPY
[A]
[D][C]
[B]
Control reference guide
