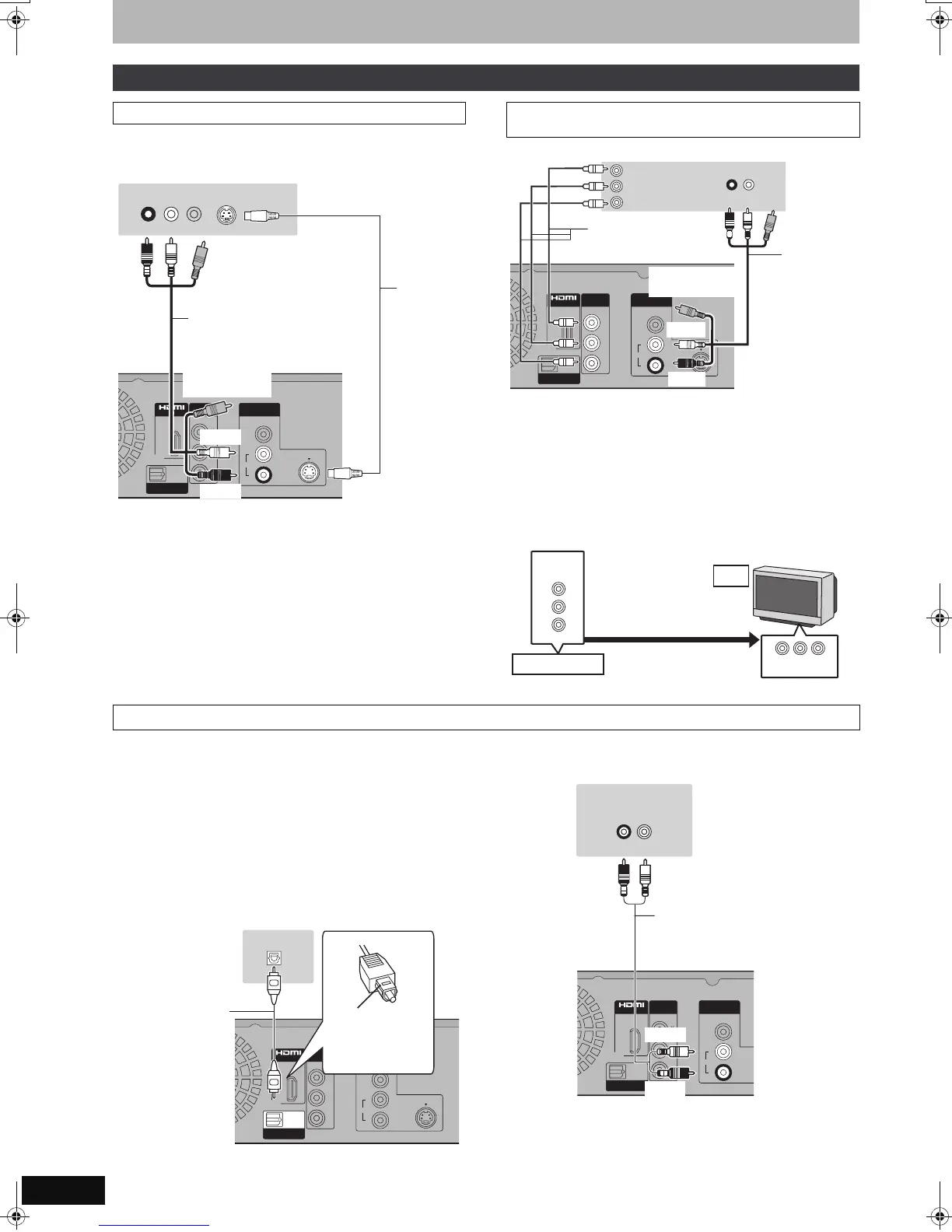

STEP 1 Connection
The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
COMPONENT VIDEO terminals can be used for either interlace or
progressive output (➡ 81) and provide a purer picture than the
S VIDEO OUT terminal.
≥Connect to terminals of the same colour.
If you have a regular television (CRT: cathode ray tube)
Use component output with progressive “Off” (The default setting
➡ 65), even if it is progressive compatible, because progressive
output can cause some flickering. This is the same for multi system
televisions using PAL mode.
For progressive output (➡ 19)
∫ Connecting an amplifier with a digital input
terminal
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
[Required]setting]
“Digital Audio Output” in the Setup menu (➡ 64)
≥When this unit is connected to an amplifier with an Optical digital
audio cable and connected to a television with an HDMI cable, you
can enjoy the highest quality of audio from the disc by setting
“Digital Audio Output” to “Optical Only” in the Setup menu (➡ 65).
In this case audio is only output from the amplifier not the
television.
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
∫ Connecting a stereo amplifier
Other connections
Connecting a television with S VIDEO terminals
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
A
A
V OU
V OU
T
T
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
Television’s rear panel
S Video
cable
Red White
Red
Audio/Video cable
(included)
This unit’s rear panel
White
Leave “Yellow”
unconnected.
Leave “Yellow”
unconnected.
Connecting a television with COMPONENT VIDEO
terminals
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
A
A
V OU
V OU
T
T
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
AUDIO IN
R L
PR
PB
Y
COMPONENT
VIDEO IN
Red White
Red
Component
Video cable
Audio/Video
cable
(included)
Television’s rear panel
This unit’s rear panel
White
Leave “Yellow”
unconnected.
Leave “Yellow”
unconnected.
COMPONENT
VIDEO IN
CRT
COMPONENT
VIDEO OUT
This unit
Progressive output
DO NOT
Connecting an amplifier or system component
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
A
A
V OU
V OU
T
T
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
OPTICAL IN
Optical digital
audio cable
Do not bend
sharply when
connecting.
This unit’s rear panel
Insert fully, with this
side facing up.
Amplifier’s
rear panel
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
A
A
V OU
V OU
T
T
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
AUDIO IN
R L
Red
Red White
Audio cable
This unit’s rear panel
Amplifier’s rear panel
White
