FP Web-Server V2.11
2.8 Mechanical Installation
25

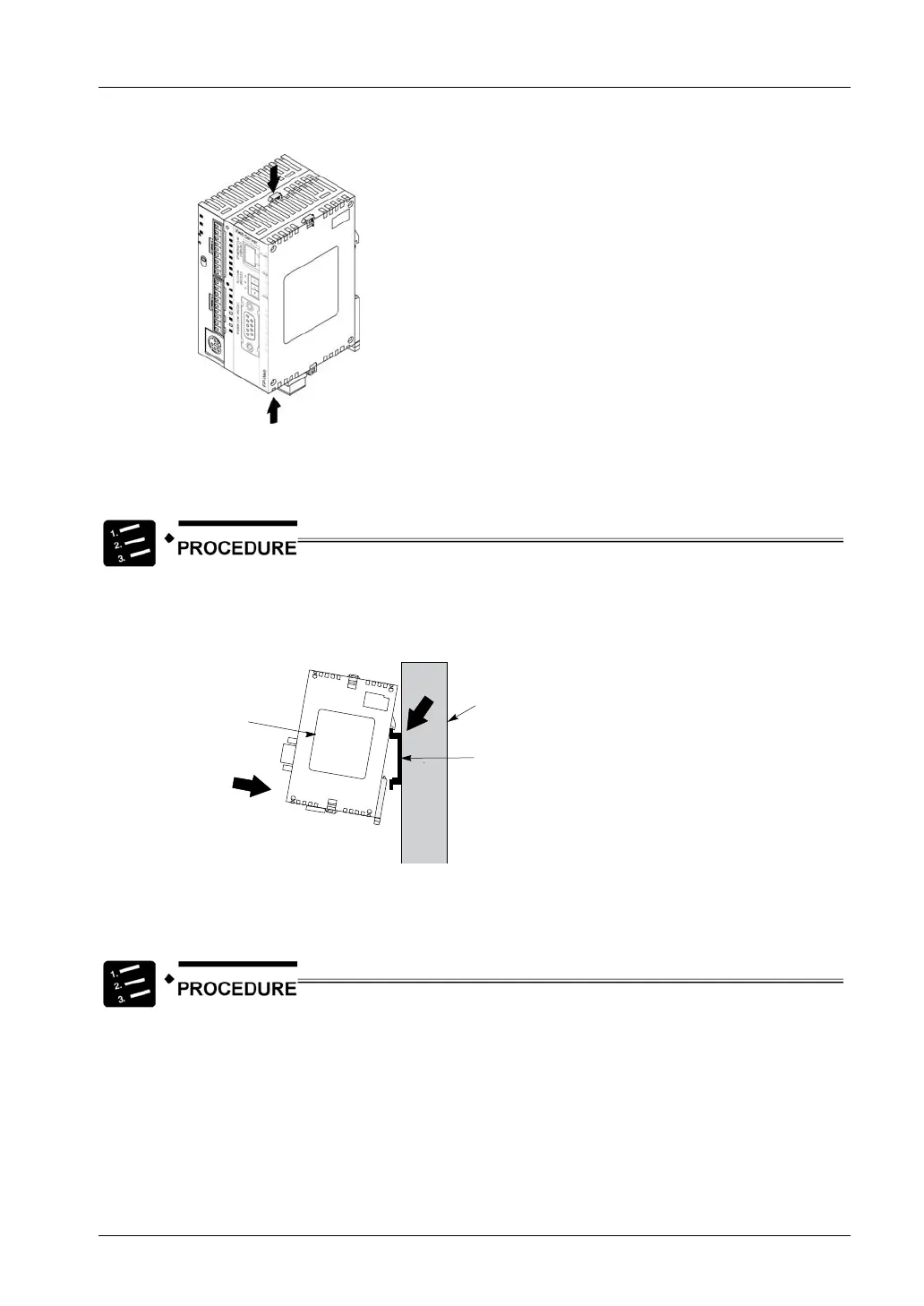

3. Press down the expansion hooks raised in step 2 to secure the unit
b) Attachment to DIN Rails:
• The FP Web-Server unit enables a one-touch attachment to DIN rails.
1. Fit the upper hook of the FP Web-Server onto the DIN rail
2. Without moving the upper hook, press on the lower hook to fit the FP
Web-Server into position
DIN rail
Device
Mounting panel
1
2
c) Removal from DIN Rail:
• You can easily remove the FP Web-Server as described below.
1. Insert a slotted screwdriver into the DIN rail attachment lever
2. Pull the attachment lever downwards
