FP Web-Server V2.11
2.8 Mechanical Installation
27
Example: Two Expansion Units
e) Installation Using FP0 Flat Type Mounting Plate

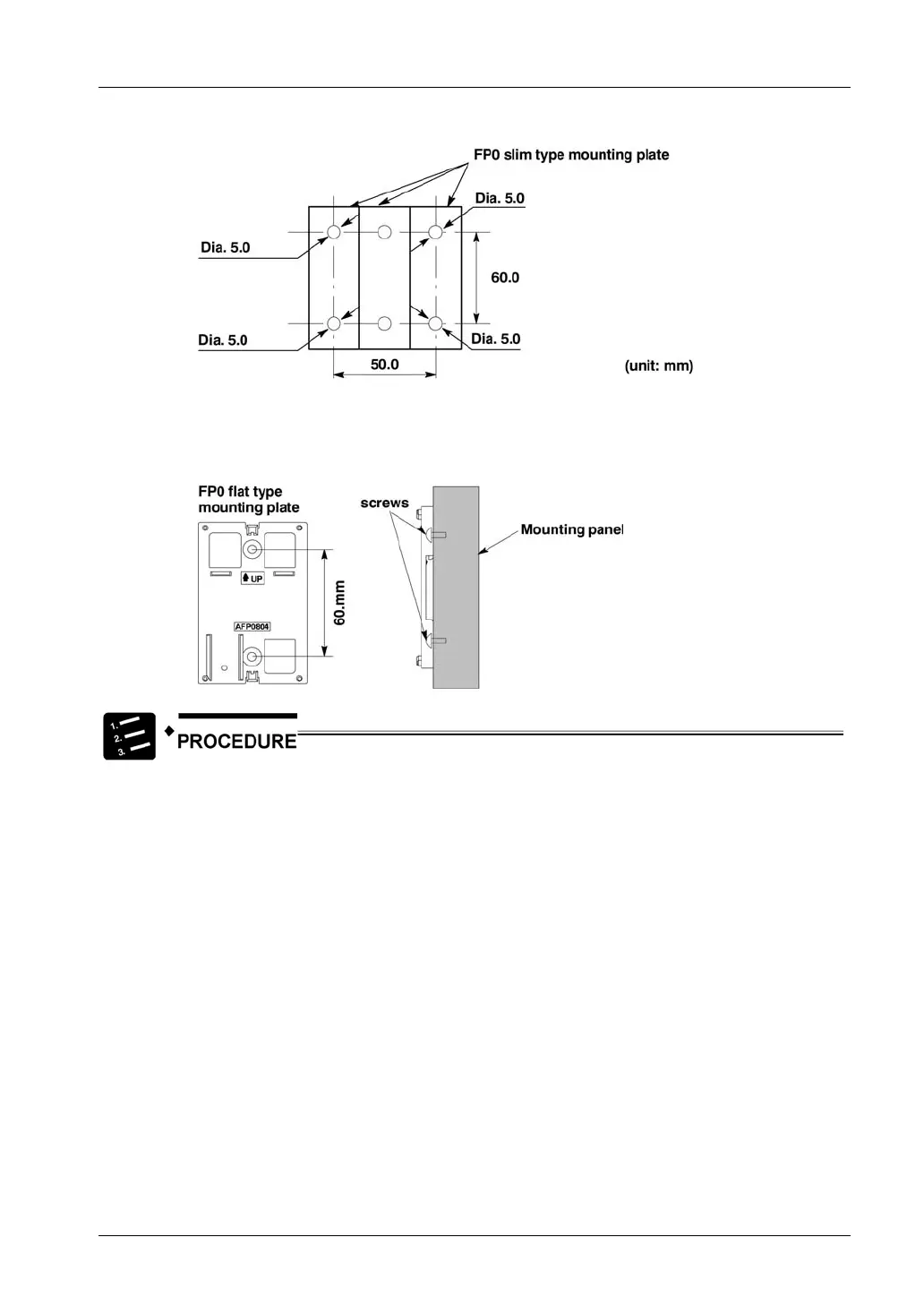

• Use M4 size pan-head screws to attach FP0 flat type mounting plate (AFP0804) and
install according to the dimensions shown below.
1. Raise the expansion hooks on the top and bottom of the unit
2. Install the FP0 Web-Server on the FP0 flat type mounting plate
