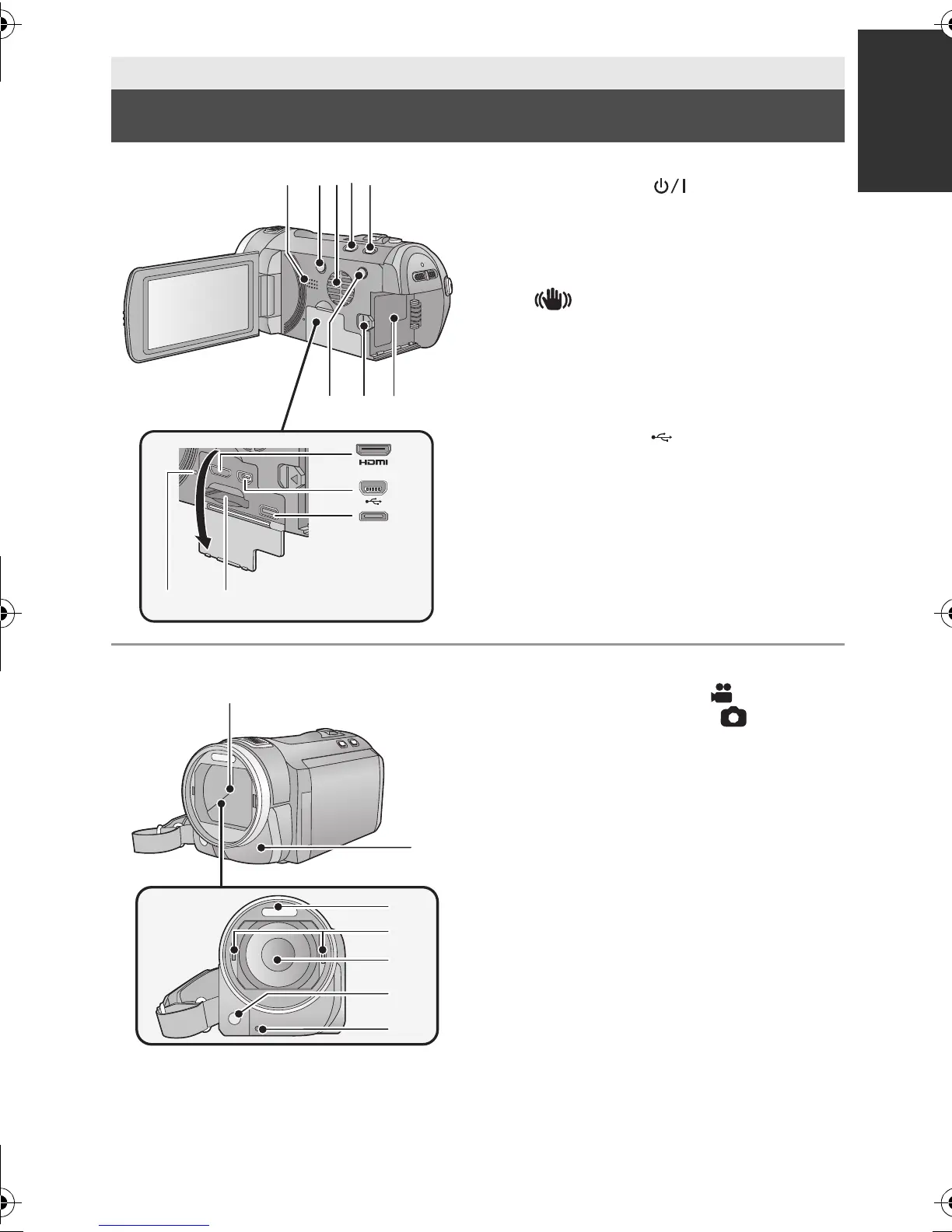

1 Speaker
2 Power button [ ] (l 20)
3 Inlet (cooling fan) (l 25)
4 Intelligent auto/Manual button
[iA/MANUAL] (l 31, 76)
5 Optical image stabilizer button
[ O.I.S.] (l 48)
6 1080/50p button [1080/50p] (l 49)
7 Battery release lever [BATT] (l 14)
8 Battery holder (l 14)
9 HDMI mini connector [HDMI]
(l 97, 101)
10 USB terminal [ ] (l 106, 111, 126)
11 AV multi connector (l 97, 114)
≥ Use the AV multi cable (only the supplied
cable).
12 Card slot (l 19)
13 Access lamp [ACCESS] (l 19)
14 Lens cover
≥ The lens cover opens in motion
picture recording mode or still picture
recording mode. (l 21)
15 Remote control sensor (l 46)
16 Built-in flash (l 56)
17 3D Conversion Lens attachment part
(concave) (l 80)
18 Lens (LEICA DICOMAR)
≥ Please refer to page 26 for details about
attaching the lens hood.
19 AF assist lamp (l 75)
20 Recording lamp (l 41)
Preparation
Parts identification and handling
78
2
3
4
5
6
9
10
11
1
1213
14
15
16
18
17
19
20
