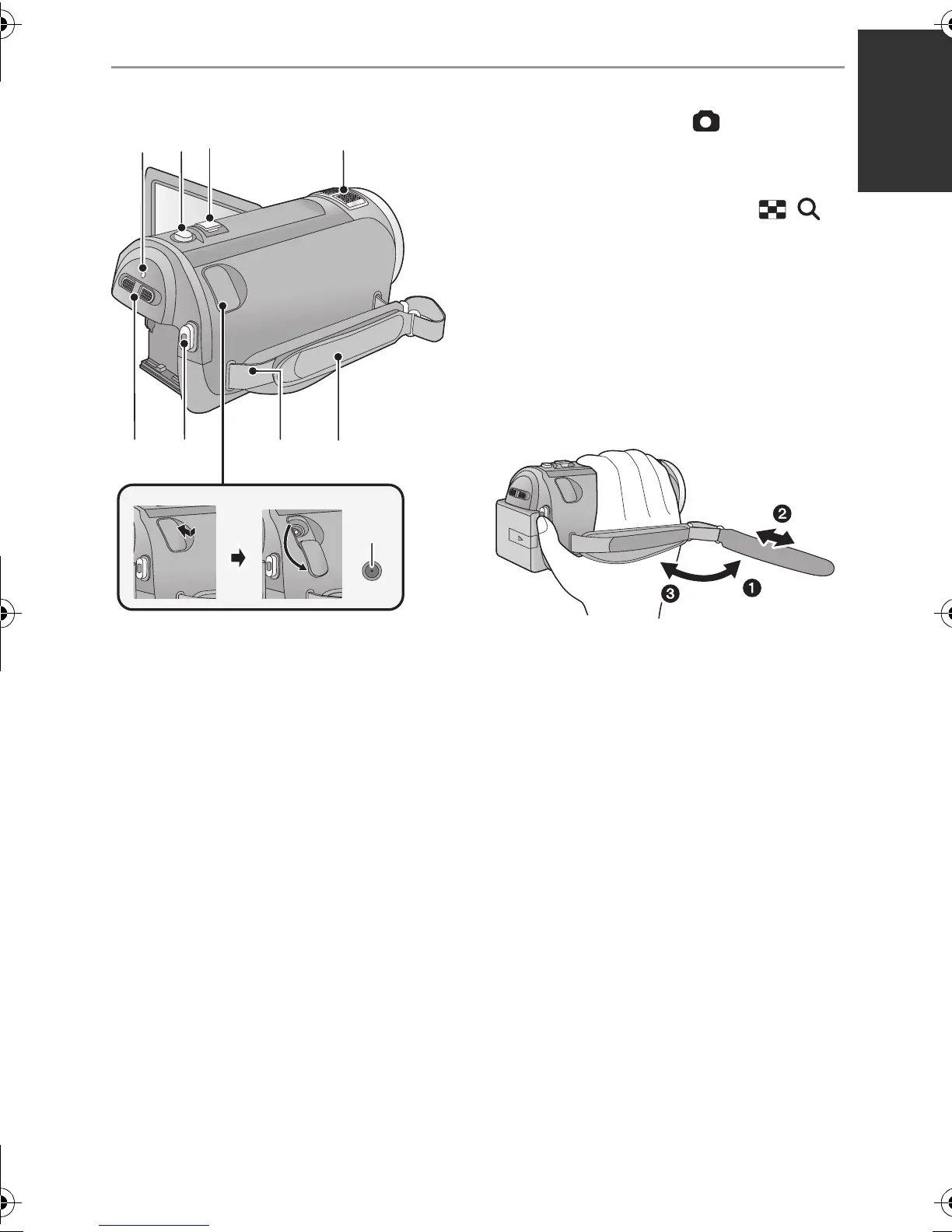

23 Status indicator (l 20)
24 Photoshot button [ ] (l 29)
25 Zoom lever [W/T] (In motion picture
recording mode or still picture
recording mode) (l 47)
Thumbnail display switch [ / ]/
Volume lever [sVOLr] (In playback
mode) (l 34)
26 Internal microphones
27 Mode switch (l 21)
28 Recording start/stop button (l 27)
29 Shoulder strap fixture
30 Grip belt
Adjust the length of the grip belt so that it fits
your hand.
1 Flip the belt.
2 Adjust the length.
3 Replace the belt.
31 DC input terminal [DC IN] (l 15)
≥ Do not use any other AC adaptors except
the supplied one.
262524
28
27
31
29 30
23
