24 VQT4F67
9

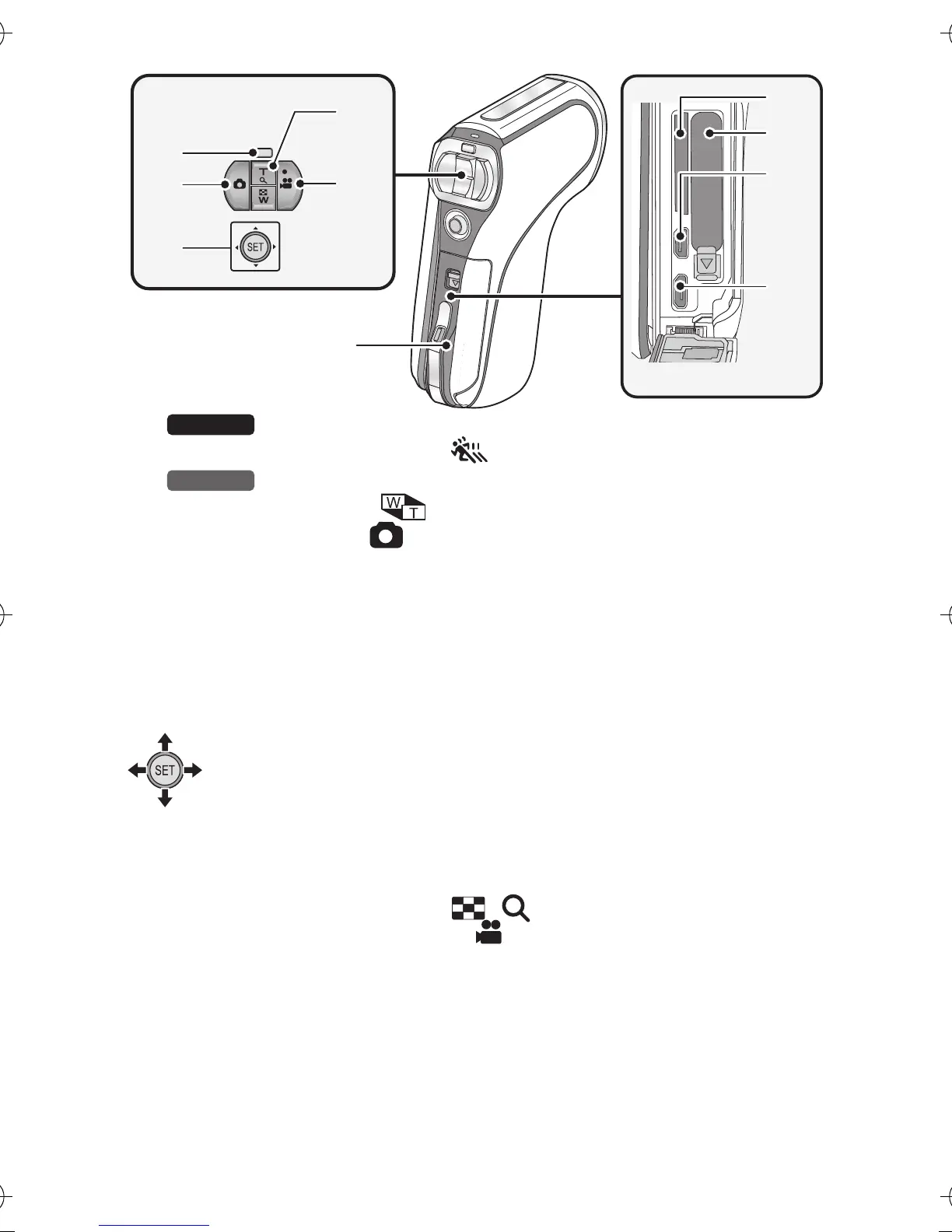

Slow motion mode button [ ] (l 81)
Zoom range button [ ] (l 77)
10 Photoshot button [ ] (l 55)
11 SET button [SET] (l 64, 68, 103, 114)
≥ Use the SET button to select the recording functions and playback
operations, and to operate the menu screen.
12 In Recording Mode: Zoom button [W/T] (l 76)
In Playback Mode: Volume button (l 66, 121)
Zoom button [W/T] (l 118)
Thumbnail display switch [ / ] (l 66)
13 Recording start/stop button [ ] (l 52)
14 Rear door (l 29, 40)
15 Card slot
16 Battery holder
17 HDMI micro connector (l 134, 141)
18 USB/AV connector (l 134, 145, 157)
≥ Use the USB cable/AV cable (only the supplied cable).
≥ In these operating instructions, the SET button is denoted as shown
below.
Example:
or Select using the SET button
9
10
11
12
18
17
16
15
14
13
