KW8M Eco-POWER METER
13
Mode 2…Mode for setting of each parameter for pulse measurement
Mode 3…Mode for setting of each parameter for serial communication
Mode 4…Mode for setting of each parameter for optional function
Mode 5…Mode for setting of calendar timer
*For AKW8111H, be sure to set calendar timer (Mode 5) and initialize memory of main unit (Mode 4)
before measuring.

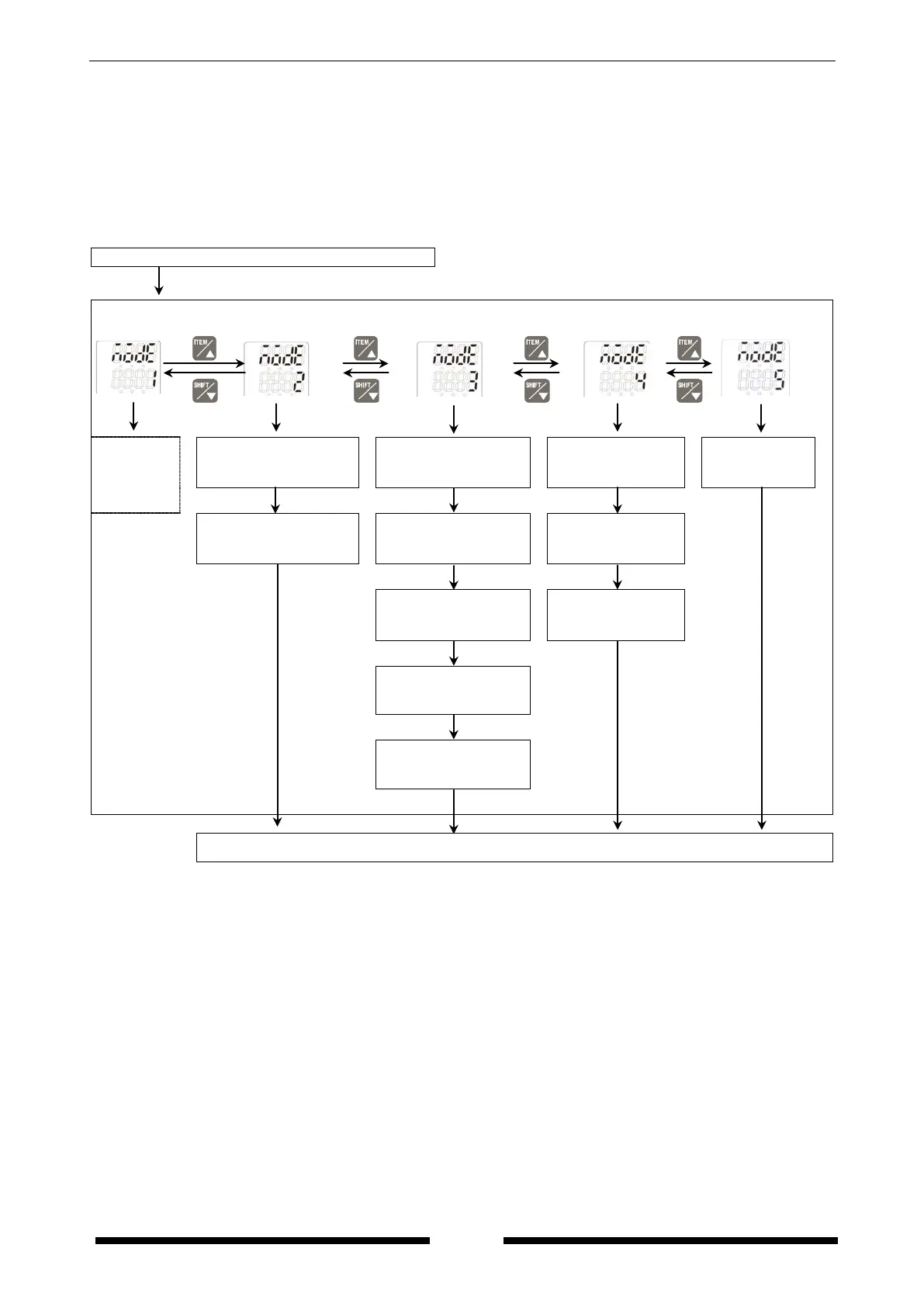

Monitor (Display when power on)
<MODE>
Setting mode
(Mode 1)
(Mode 2)
(Mode 3)
(Mode 4)
(Mode 5) *1
<SET> <SET> <SET> <SET> <SET>
Refer to
the
previous
page.
Max. counting speed
setting mode
Hz
Protocol setting mode
PROT
Auto-off setting mode
OFF
Calendar timer
setting mode
CAL *1
<SET> <SET> <SET> <SET>
Prescale setting mode
PSCL
Station number
setting mode
NO
Log cycle
setting mode
LOG *1
<SET> <SET> <SET>
Transmission speed
setting mode
SPD
Initialize memory of
main unit
S.FMT *1
<SET>
Transmission format
setting mode
FMT
<SET>
Response time
setting mode
RESP
<SET>
Monitor
Press <MODE> to return Monitor.
*1 Only for AKW8111H. It is not displayed for AKW8111.
