Panasonic KW8M - Panel Cutout; Panel Mounting

KW8M Eco-POWER METER
76

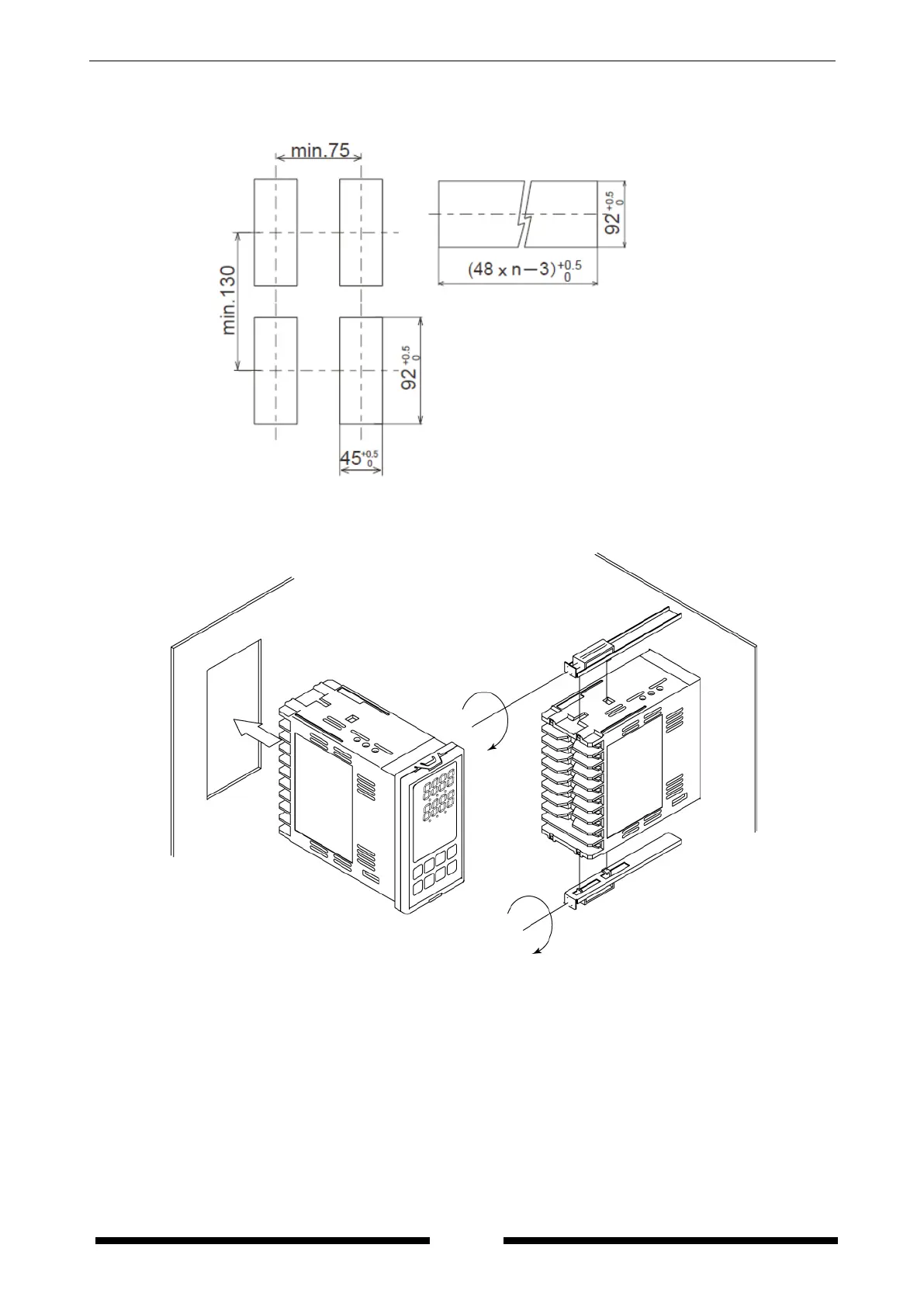

10.2 Panel cutout
(Unit: mm)
For connected mounting
n=numbers of mounting units
10.3 Panel mounting
1) Insert a unit from the front of the panel.
2) Attach the mounting bracket by the holes at the top and bottom of case and secure in place with
screws.
・Fastening torque: approx. 0.12N･m
・Panel thickness: 1 to 15mm
