KW8M Eco-POWER METER
41

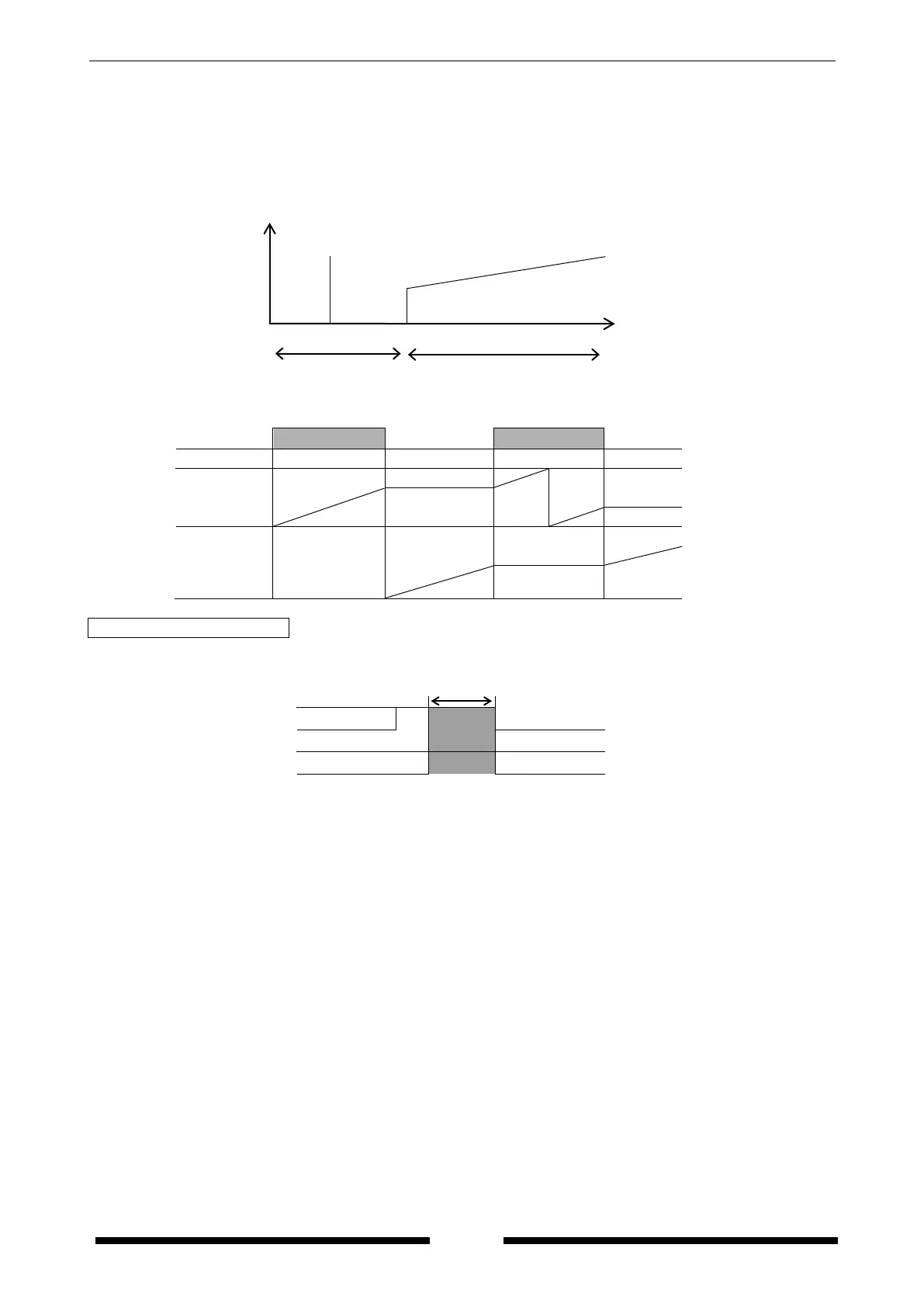

*When load current is under the setting current for time measurement (HM-A), it measures as
OFF-time. When load current is exceeded to the setting current for time measurement (HM-A), it
measures as ON-time. Current for time measurement (HM-A) is set to under cutoff current (CUTA),
all current is measured as OFF-time.
*Current flow of CT1
Load ON-time
[h]
0
HM-A CUTA
Ratio of load current [%]
Measured as OFF-h
Measured as ON-h
*After reaching the full scale (99999.9h), the value reverts to 0.0h but continues to measure.
ON
ON
CT Detection OFF OFF
Full scale
ON-time
OFF-time
How to Reset ON/OFF-time
・Hold down <SET> and press <MODE> makes ON-time or OFF-time clear.
(ON-time and OFF-time are reset by each.)
Reset
<SET>
ON
OFF
<MODE>
ON
OFF
