KX-FLB802CX/KX-FLB812CX/KX-FLB802CXS/KX-FLB812CXS

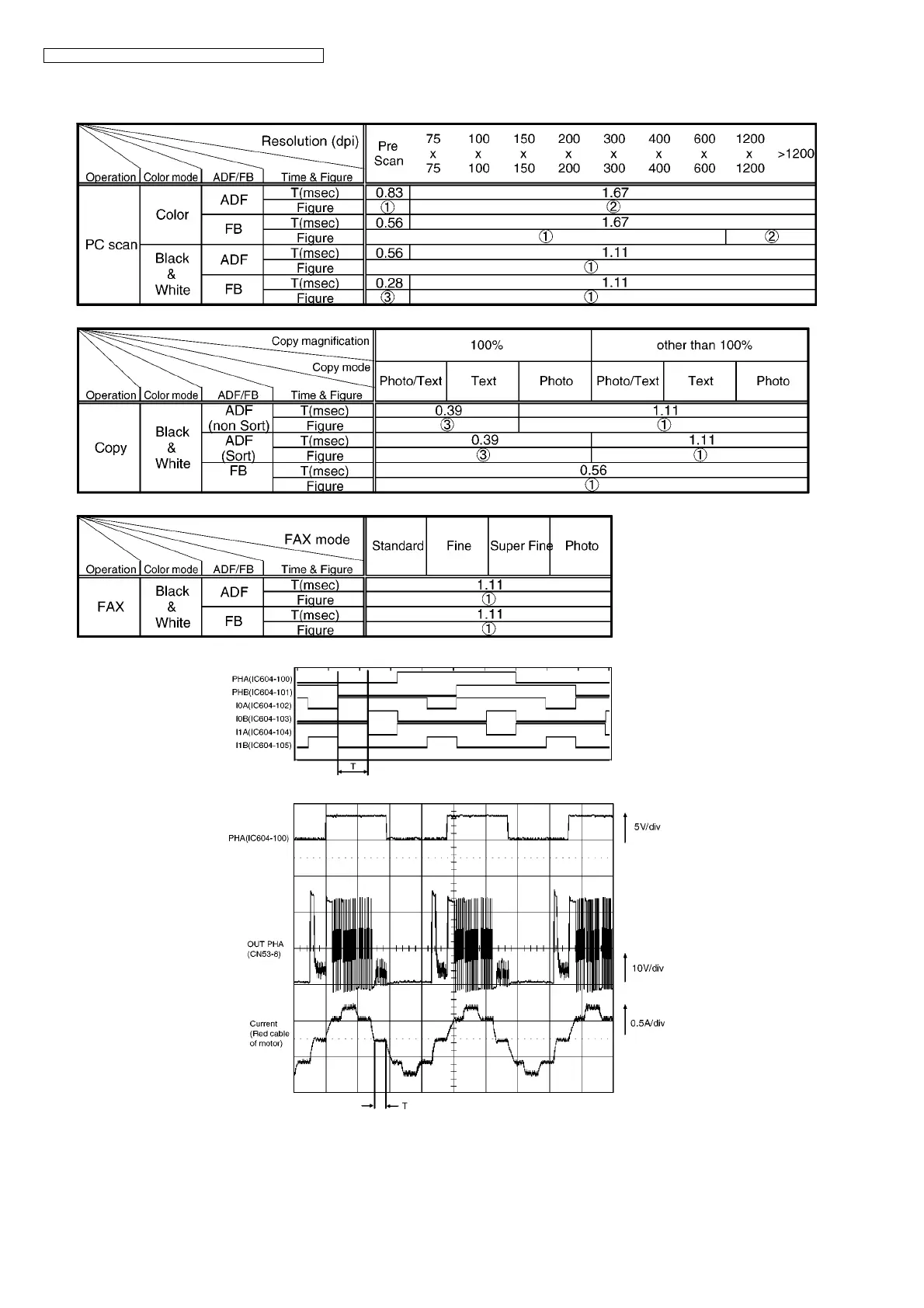

6.9. DRIVE MODE AND WAVEFORM OF ADF AND FB MOTOR
(1) Correspondent table of operation mode and waveform
(2) Waveform
Figure (1) (phase pattern : Flat torque 1-2 phase excitation)
