E. Copy mode (See Fig. E.):
“Copy mode” = “Transmit mode“ + “Receive mode“
The Swing Gear A engages with the next gear to drive Document Separation Roller and Document Exit Roller.
The Swing Gear B engages with the next gear to drive Platen Roller gear and Ribbon Drive Gear.
The Swing Gear C engages with the next gear to drive Paper Exit Roller.

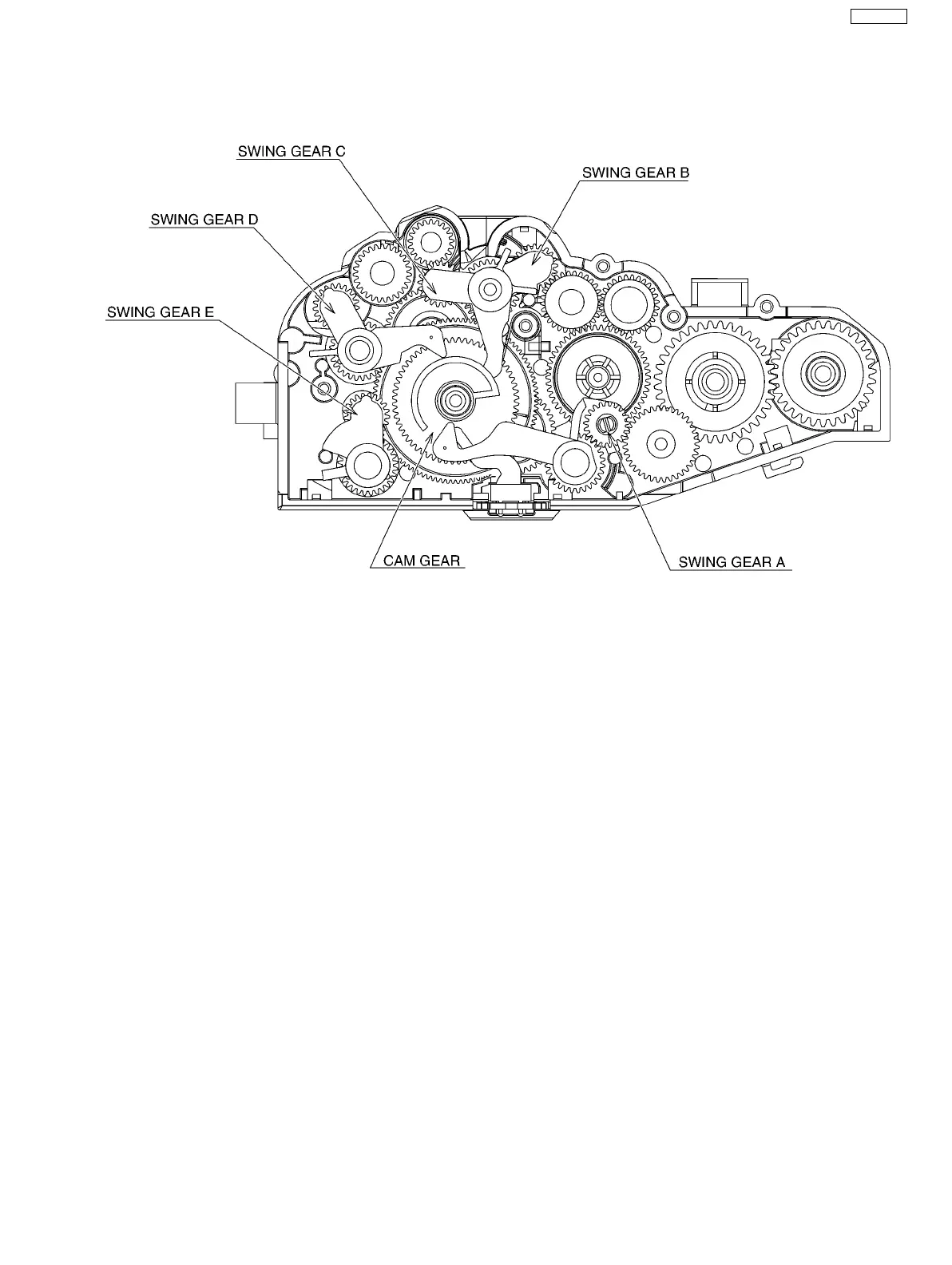

Fig. E: Copy mode
