2. Preparation
18
For Fax Advantage assistance, call 1-800-435-7329.
2 Preparat ion2For Fax Advantage ass istance, call 1-800-4 35-7329.Connecti ons and Setup

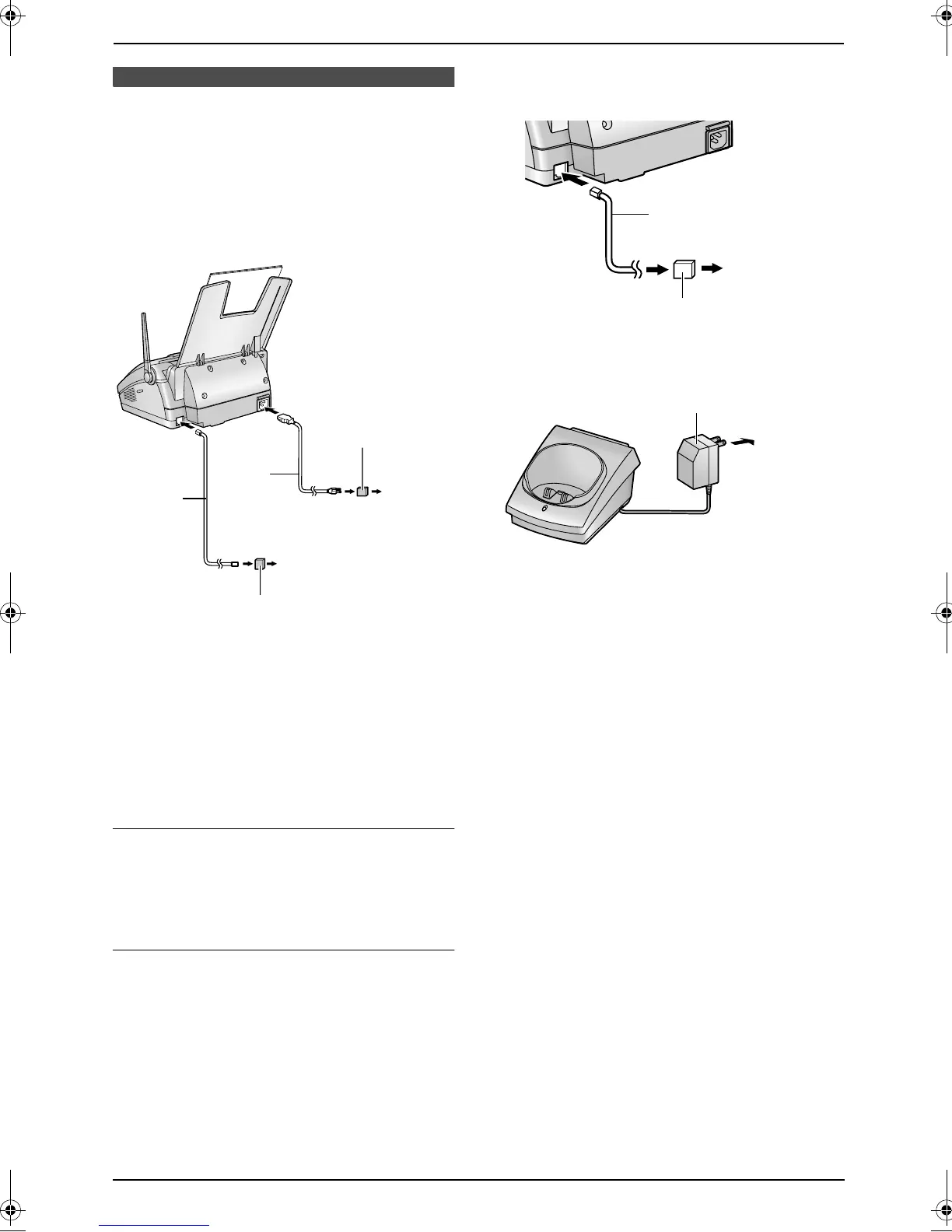

2.1 Connections
Caution:
L When you operate this product, the power
outlet should be near the product and
easily accessible.
2.1.1 Base unit
Note:
L To avoid malfunction, do not position the fax
machine near appliances such as TVs or
speakers which generate an intense
magnetic field.
L This unit may disturb the performance of
other devices connected to the same
telephone line.
Using surge protectors
L The warranty does not cover damage due to
power line surges or lightning. For additional
protection, we recommend the use of a surge
protector.
If you use this unit with a computer or
subscribe to an xDSL service
Fax transmission/reception may be disturbed, or
you may hear interference noise during
telephone conversation. A filter to prevent this is
provided from your service company. Please
attach the filter to the telephone line cord of the
fax machine.
2.1.2 Charger unit
Note:
L USE ONLY WITH the included Panasonic AC
adaptor.
L The AC adaptor must remain connected at all
times. (It is normal for the adaptor to feel
warm during use.)
To a
power
outlet
(120 V, 60 Hz)
Telephone
line cord
Power
cord
( )
Power surge
protector
To a single telephone
line jack (RJ11C)
( )
Line surge
protector
Telephone
line cord
Filter
To a single
telephone
line jack
To a power
outlet
AC adaptor
(120 V, 60 Hz)
0519_FPG381.book Page 18 Monday, May 19, 2003 6:46 PM
