Installation (Base Unit)
1.8 Ink film
1.8.1 Installing the ink film

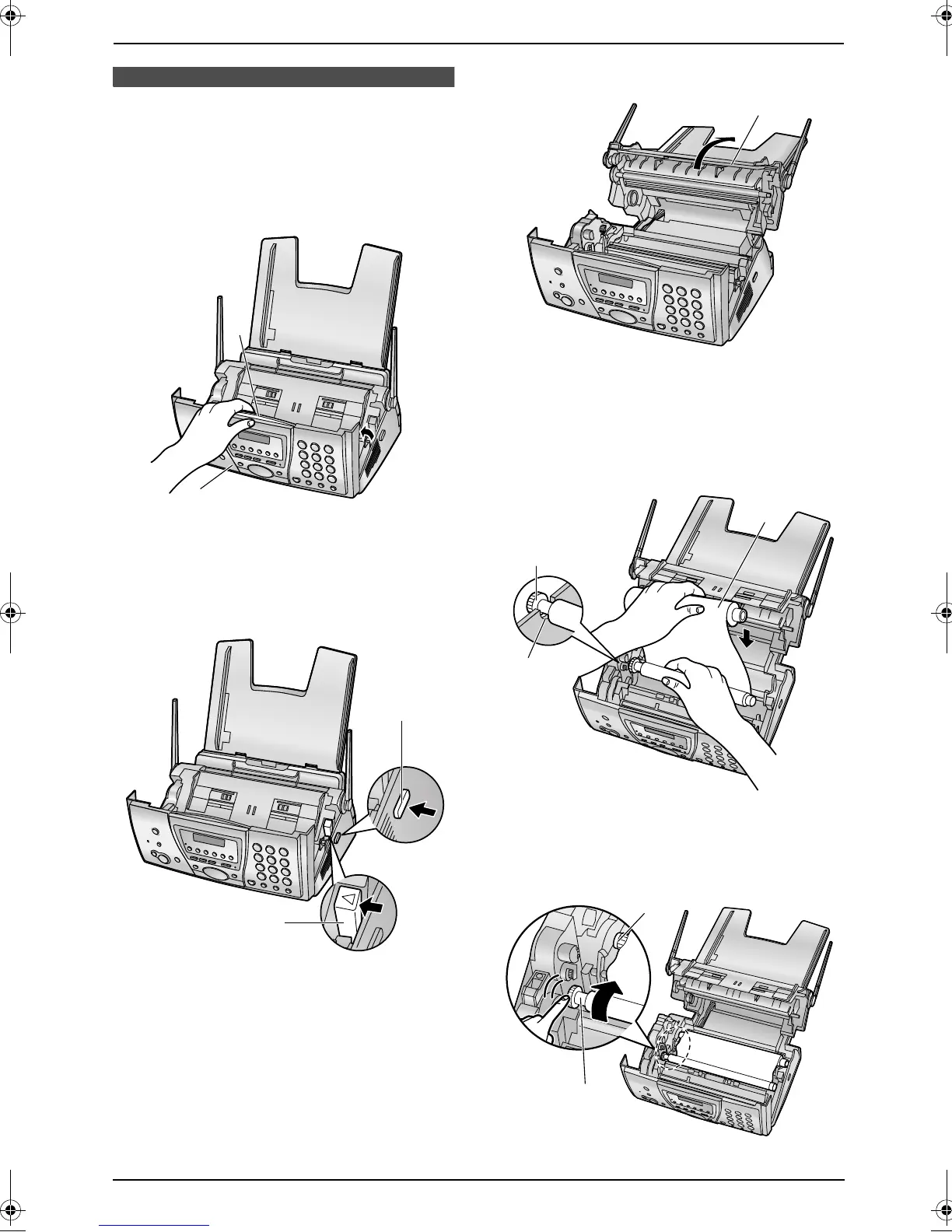

1 Open the front cover (1) by pulling up the
center part (2).
2 Release the back cover by pushing the green
button (1) on the right side of the unit.
OR
Release the back cover by pushing in the
green lever (2) in the unit.
3 Open the back cover (1).
4 Insert the gear of the blue core (1) into the
left slot of the unit (2). Insert the rear ink film
roll (3).
L The ink film is safe to touch, and will not
rub off on your hands like carbon paper.
5 Turn the gear of the blue core (1) in the
direction of the arrow until the white core (2)
begins to turn.
1
2
2
1
1
3
2
1
1
2
