2.1 Installation
14 Getting Started
2.1 Installation

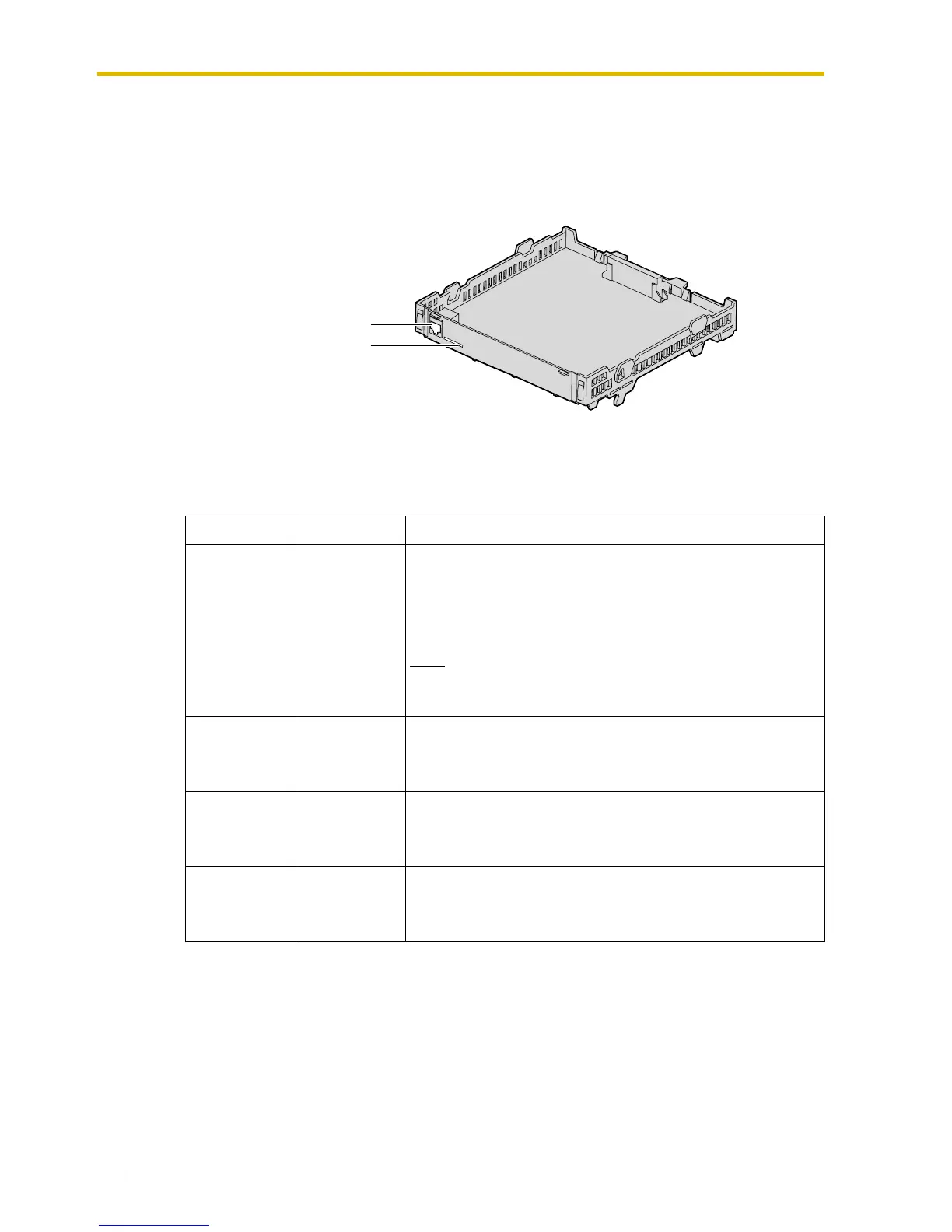

2.1.1 Names and Locations
Indication Light (LED)
When the VoIP Gateway Card is operating, each LED should show the status identified in bold-
face letters under normal conditions.
Indication Color Description
ONLINE Green
On-line status indication
• ON: On-line mode
• OFF: Off-line mode
• Flashing: Maintenance mode
Note
If the LINK indicator is OFF, the ONLINE indicator will
also be OFF.
ALARM Red
Alarm indication
• ON: Alarm
• OFF: Normal
LINK Green
Link status indication
• ON: Normal connection
• OFF: Connection error
DATA Green
Data transmission indication
• ON: Data transmitting
• OFF: No data transmitted
RJ45
(10BASE-T/100BASE-TX)
LEDs
