24
8.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.

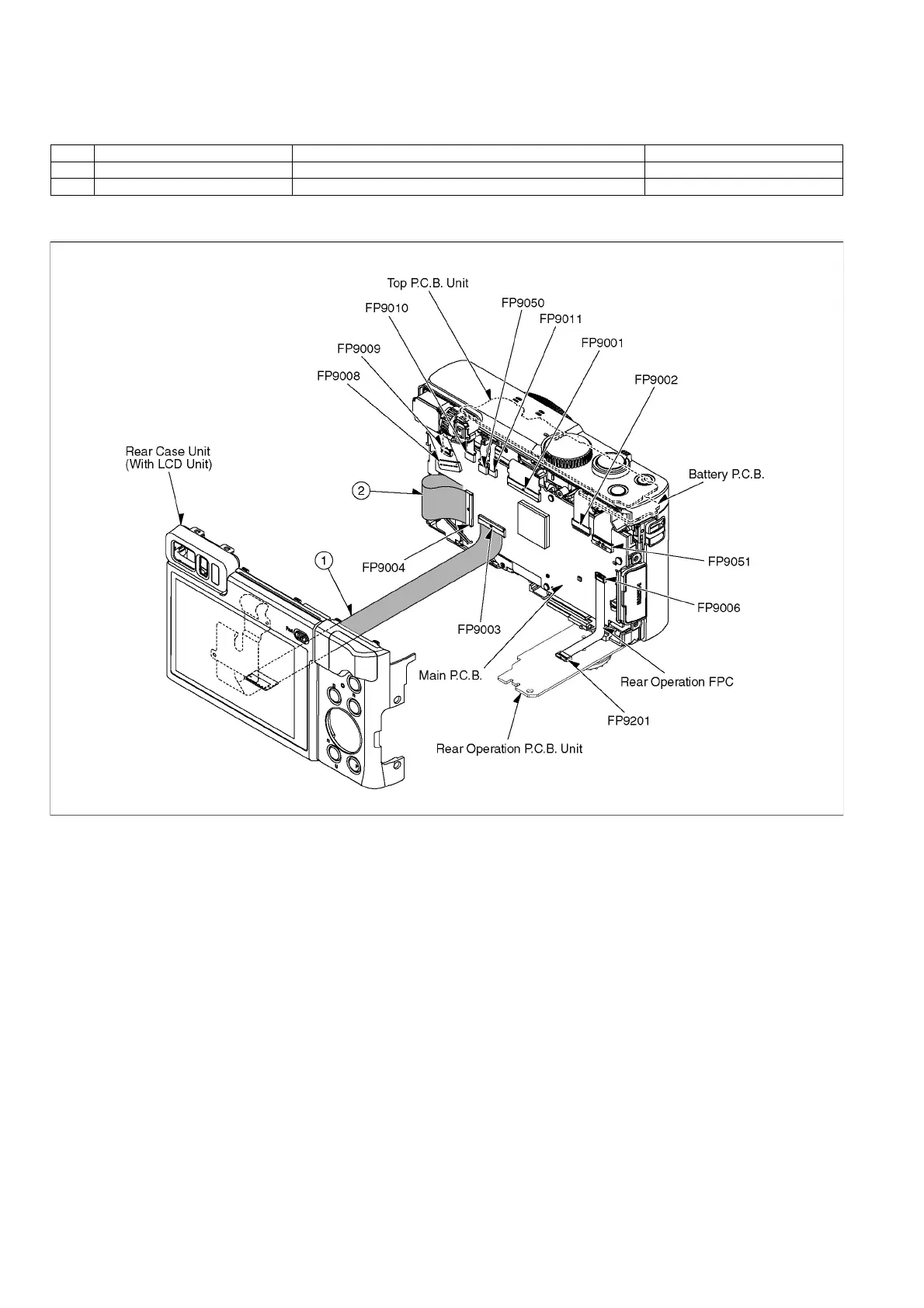

8.3.1. Extension Cable Connections
CAUTION (When servicing Top P.C.B. Unit)
1. Be sure to discharge the capacitor on Top P.C.B. Unit.
Refer to "HOW TO DISCHARGE THE CAPACITOR ON Top P.C.B. Unit".
The capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on Top P.C.B. Unit.
3. DO NOT allow other parts to touch the high voltage circuit on Top P.C.B. Unit.
No. Parts No. Connection Form
1 RFKZ0416 FP9003 (Main P.C.B.)  LCD Unit 41PIN / 0.3 FFC
2 RFKZ0477 FP9004 (Main P.C.B.)  Lens Unit 45PIN / 0.3 FFC
