10.2.2. Flash-Rom Data Backup
Number of necessary adjustment items decreases by copying the backup data to new Main P.C.B. when adjustment data in old
Main P.C.B. can be read by ROM_BACKUP "DSCSD".
It is recommended to backup the Flash-rom data as the way of return when trouble occurs before disassembling the unit depending
on each case.
[ROM_BACKUP (Method of Non-PC backup)]
1. Insert the Memory Card into the camera.
2. Set the camera to "Temporary cancellation of the initial settings".
3. Select the "SETUP" menu.
From the "SETUP" menu, select "ROM BACKUP".
Note:
This item is not listed on the customer's "SET UP" menu.

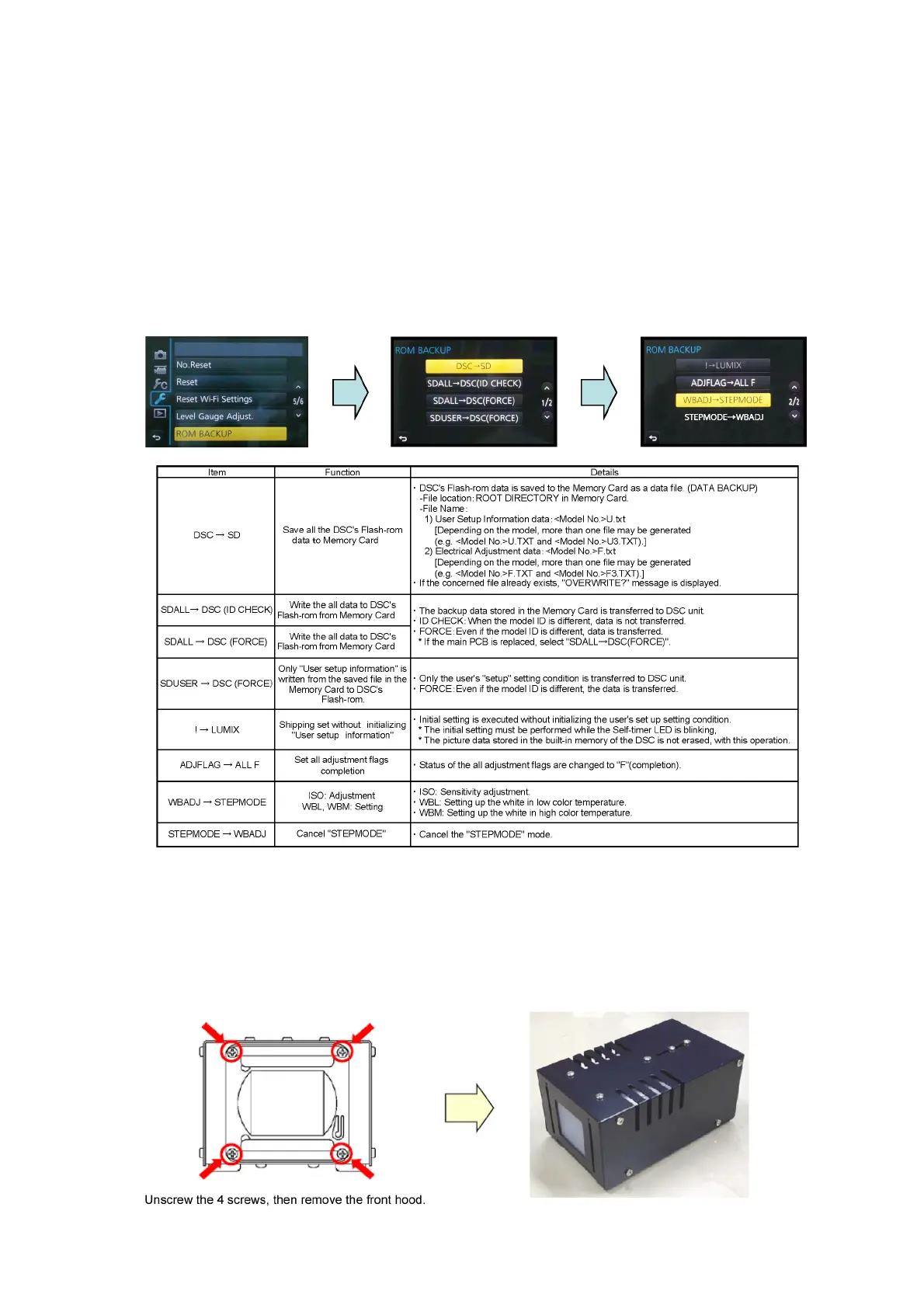

4. When this "ROM_BACKUP" item is selected, the following submenus are displayed.
10.2.3. About Light Box
How to remove the Front Hood
In order to utilize maximum of the diffusing surface of light box, some adjustment items need the distance between diffusing
surface of light box and camera body becomes several cent-meters.
Before the adjustments, remove the front hood of light box following steps below.
[ For RFKZ0523 Light Box ]
