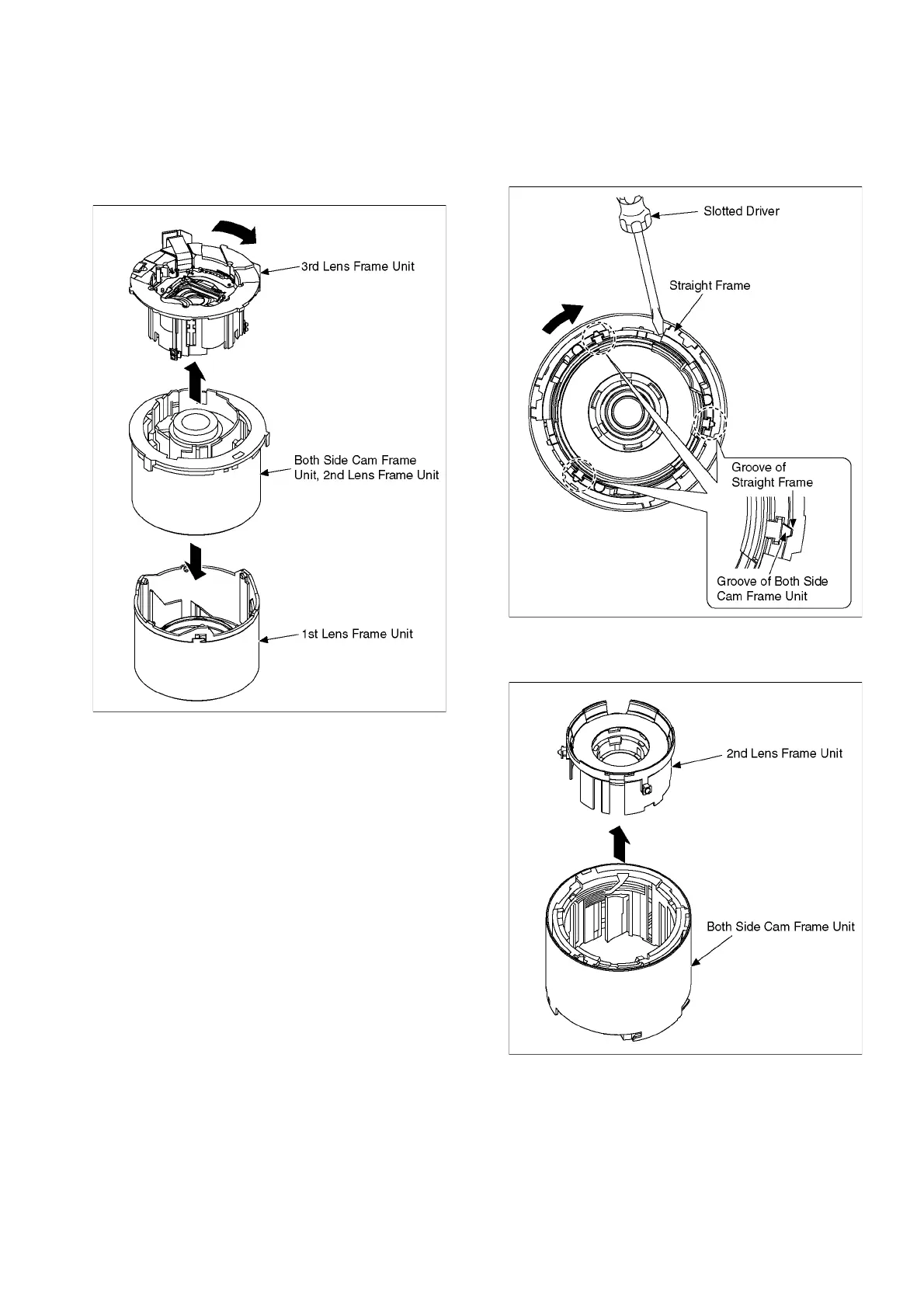

9.4.3. Removal of the 1st Lens Frame Unit
and 3rd Lens Frame Unit
1. Turn the 3rd Lens Frame Unit in the direction of arrow
fully.
2. Remove the 1st Lens Frame Unit and 3rd Lens Frame
Unit from the Both Side Cam Frame Unit.
9.4.4. Removal of the 2nd Lens Frame
Unit
1. Turn the Straight Frame using Slotted Driver, etc. and
then align the Groove of Straight Frame and Groove of
Both Side Cam Frame Unit.
2. Remove the 2nd Lens Frame Unit from the Both Side
Cam Frame Unit.
