31

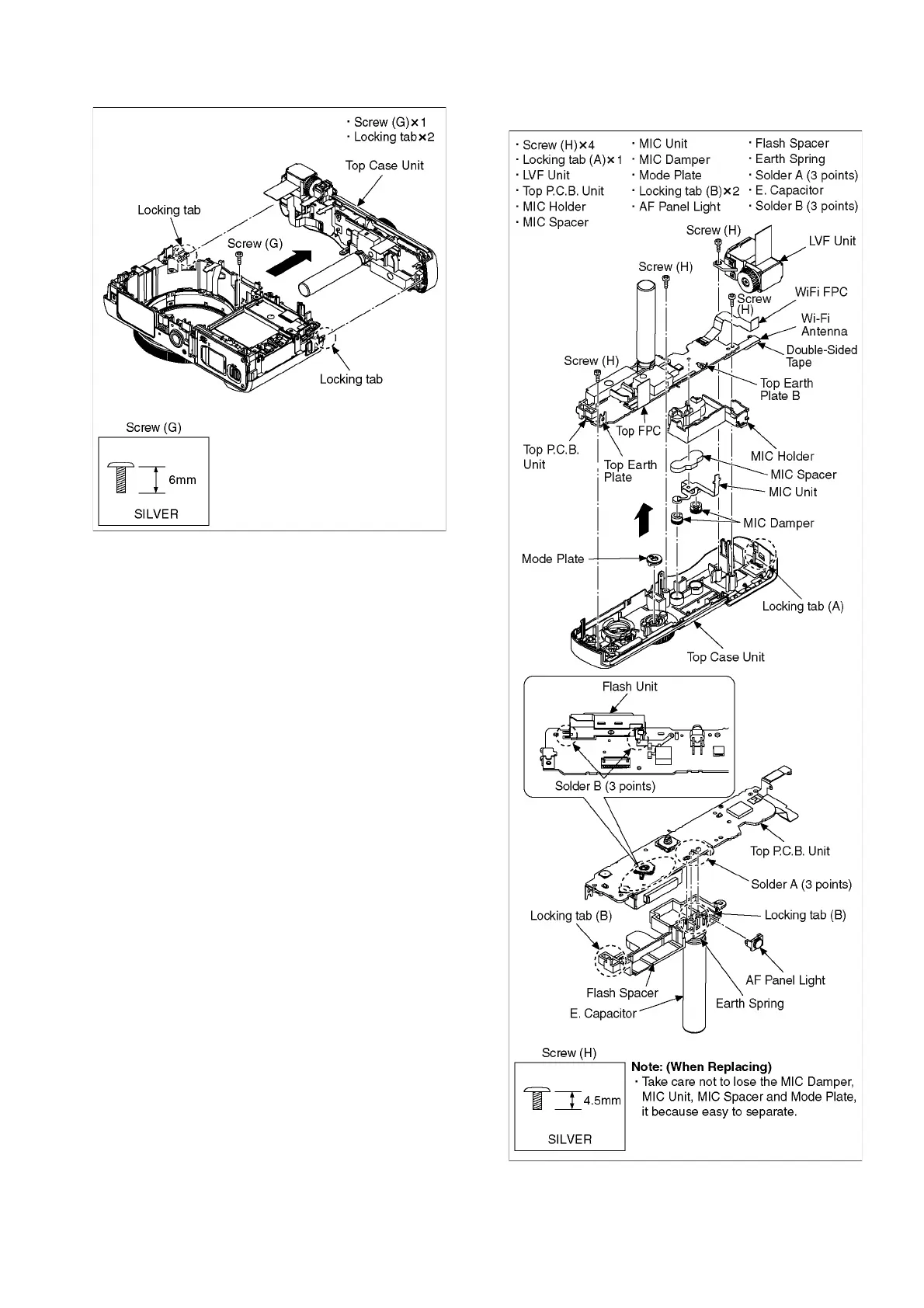

9.3.7.
Removal of the T
op Case Unit
Fig. D9
9.3.8.
Removal
of
the
L
VF
Unit,
T
op
P
.C.B.
Unit, Flash Unit
Fig. D10
30
32
Table of Contents
ORDER NO.DSC1706014CE
1
Digital Camera
1
Model No. DC-TZ90EB DC-TZ90EF DC-TZ90EG DC-TZ90EP DC-TZ90GA DC-TZ90GC DC-TZ90GN DC-TZ91EG DC-TZ92EF DC-TZ93EB DC-ZS70P DC-ZS70PP DC-ZS70GH DC-ZS70GK DC-ZS70GT
1
1 Safety Precautions
3
1.1. General Guidelines
3
1.2. Leakage Current Cold Check
3
1.3. Leakage Current Hot Check (See Figure 1)
3
1.4. How to Discharge the Capacitor on Top P.C.B. Unit
4
2 Warning
5
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
5
2.2. How to Recycle the Lithium Ion Battery (U.S. Only)
5
2.3. How to Replace the Lithium Battery
6
2.3.1. Replacement Procedure
6
3 Service Navigation
7
3.1. Introduction
7
3.2. Important Notice
7
3.2.1. About lens block
7
3.2.2. About VENUS ENGINE (IC6001) < Located on the Main P.C.B. >
8
3.2.3. About Flash ROM (IC6004) and Charging Control Microcomputer (IC1502)
8
3.2.4. About Flexible Cable and Connector
8
3.3. Service Notes
9
3.3.1. About Wi-Fi Function
9
3.3.2. Important Notice of Servicing
9
3.4. General Description About Lead Free Solder (PbF)
10
3.5. How to Define the Model Suffix (NTSC or PAL model)
11
3.5.1. Defining methods
11
3.5.2. INITIAL SETTINGS:
12
4 Specifications
16
5 Location of Controls and Components
17
6 Service Mode
18
6.1. Error Code Memory Function
18
7 Troubleshooting Guide
22
7.1. Wi-Fi Module (Top P.C.B. Unit)
22
7.1.1. How to Remove Wi-Fi Password Protection
22
7.1.2. Checking of trouble caused by Wi-Fi Module on Top P.C.B. Unit or not
22
8 Service Fixture & Tools
23
8.1. Service Fixture and Tools
23
8.2. When Replacing the Main P.C.B.
23
8.3. Service Position
24
8.3.1. Extension Cable Connections
24
9 Disassembly and Assembly Instructions
25
9.1. Disassembly Flow Chart
25
9.2. P.C.B. Location
25
9.3. Disassembly Procedure
26
9.3.1. Removal of the Rear Case Unit (With LCD Unit)
27
9.3.2. Removal of the Rear Operation P.C.B. Unit
28
9.3.3. Removal of the Frame Plate
28
9.3.4. Removal of the Main P.C.B., Speaker
29
9.3.5. Removal of the Eye Sensor FPC
30
9.3.6. Removal of the Lens Unit
30
9.3.7. Removal of the Top Case Unit
31
9.3.8. Removal of the LVF Unit, Top P.C.B. Unit, Flash Unit
31
9.3.9. Removal of the PCB Spacer, Front Case Unit, Control Ring Unit
33
9.3.10. Removal of the Battery Door Unit
33
9.3.11. Removal of the Strap Cover (R), Strap Plate (R), Front Earth Plate
34
9.3.12. Removal of the Battery P.C.B., Strap Cover (L), Strap Plate (L)
34
9.3.13. Removal of the Battery Case
35
9.3.14. Removal of the LCD Unit
35
9.4. Lens Disassembly Procedure
36
9.4.1. Removal of the Master Flange Unit
36
9.4.2. Both Side Cam Frame, 1st Lens Unit, 2nd Lens Unit and 3rd Lens Unit
36
9.4.3. Removal of the 1st Lens Frame Unit and 3rd Lens Frame Unit
37
9.4.4. Removal of the 2nd Lens Frame Unit
37
9.5. Assembly Procedure for Lens (Revised Version)
38
9.5.1. Insert the 2nd Lens Frame Unit
38
9.5.2. Insert the 1st Lens Frame Unit
38
9.5.3. Insert the 3rd Lens Frame Unit
39
9.5.4. Insert the Fix Frame Unit
40
9.5.5. Insert the Master Flange Unit
40
9.6. Removal of the MOS Unit
41
10 Measurements and Adjustments
42
10.1. Introduction
42
10.2. Before Disassembling the unit
42
10.2.1. Initial Setting Release
42
10.2.2. Flash-Rom Data Backup
43
10.2.3. About Light Box
43
10.3. Details of Electrical Adjustment
44
10.3.1. How to execute the Electrical Adjustment
44
10.3.1.1. Startup Electrical Adjustment mode
44
10.3.1.2. Status Adjustment Flag Setting
44
10.3.1.3. Execute Adjustment
45
10.3.1.4. Attention point during Adjustment
45
10.3.1.5. Finalizing the Adjustment
45
10.3.2. Adjustment Specifications
46
10.4. After Adjustment
51
10.4.1. Initial Setting
51
11 Maintenance
52
11.1. Cleaning Lens, Viewfinder and LCD Panel
52
12 Block Diagram
53
12.1. Overall Block Diagram
53
12.2. System Control Block Diagram
54
12.3. Audio/Video Process/ HDMI Block Diagram
55
12.4. Lens/Flash Block Diagram
56
12.5. Power (1) Block Diagram
57
12.6. Power (2) Block Diagram
58
13 Wiring Connection Diagram
59
13.1. Interconnection Schematic Diagram
59
14 Schematic Diagram
61
15 Printed Circuit Board
61
16 Exploded View and Replacement Parts List
61
