Mini VRF SYSTEM
Remote Controller Functions
5 - 15

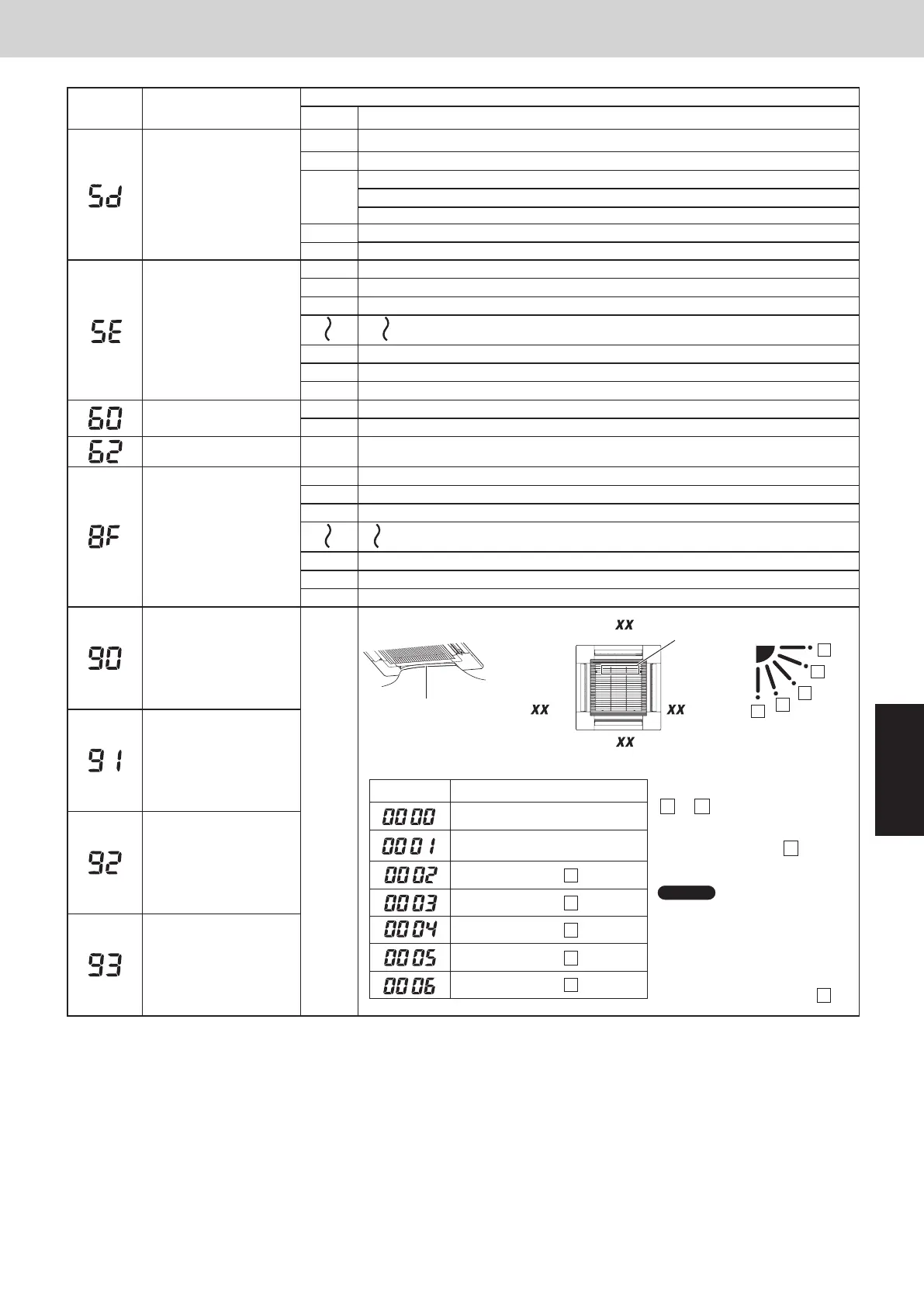

2. Detailed Settings Function
5
2. Detailed Settings Function
VRF SYSTEMS Indoor Unit
Item code Item
Setting data
No. Description
Fan tap setting
(Fan tap change in order
to prevent drop in air
discharge caused by
filter installation)
Purpose
0000 Standard (setting at shipment)
0001
High ceiling setting 1 (Type U2)
Air-flow blocking kit (when a duct is connected : Type U2)
Air-flow blocking kit (for 3-way airflow : Type U2)
0003
High ceiling setting 2 (Type U2)
0006 Air-flow blocking kit (for 2-way airflow : Type U2)
Humidifier ON time
(ON time per 60
seconds)
0000 No humidifier output
0001 1 second
0002 2 seconds
0058 58 seconds
0059 59 seconds
0060 Continuously ON
Timer function change
prohibit
0000 Function disabled
0001 Function enabled
Smudging control 0000 No smudging control
Waiting time for
dew condensation
prevention control
0000 Without dew condensation prevention control
0001 Dew condensation prevention control after 10 minutes
0002 Dew condensation prevention control after 20 minutes
0010 Dew condensation prevention control after 100 minutes
0011 Dew condensation prevention control after 110 minutes
0012 Dew condensation prevention control after 120 minutes
Setting the Flap
Separately
*Only for 4-Way
Cassette type
0000
0001
0002
0003
0004
0005
0006
Setting the Flap
Separately
*Only for 4-Way
Cassette type
Setting the Flap
Separately
*Only for 4-Way
Cassette type
Setting the Flap
Separately
*Only for 4-Way
Cassette type
Flap position
1
2
3
4
5
Flap position during operationSetting data
Move to position 1 and stay
Without separate setting
Swing
Move to position 2 and stay
Move to position 3 and stay
Move to position 4 and stay
Move to position 5 and stay
When the flap position is set to
4 or 5 and the unit is in the
cooling or dry mode, the flap
position is moved to 3 and the
operation is started.
The flap swings during the
operation under "Setting the
Flap Separately".
At this time, the unselected flaps
are moved to the position 1 .
NOTE
Air outlet flap
(adjustment for up-down
airflow direction)
=91
=90Flap 1
(Motor No. 4)
(Motor No. 1)
(Motor No. 2) (Motor No. 3)
Flap 3
Flap 2Flap 4
=92
=93
Electrical
component
box
