Chapter 2 Getting Started — Connecting
ENGLISH - 47

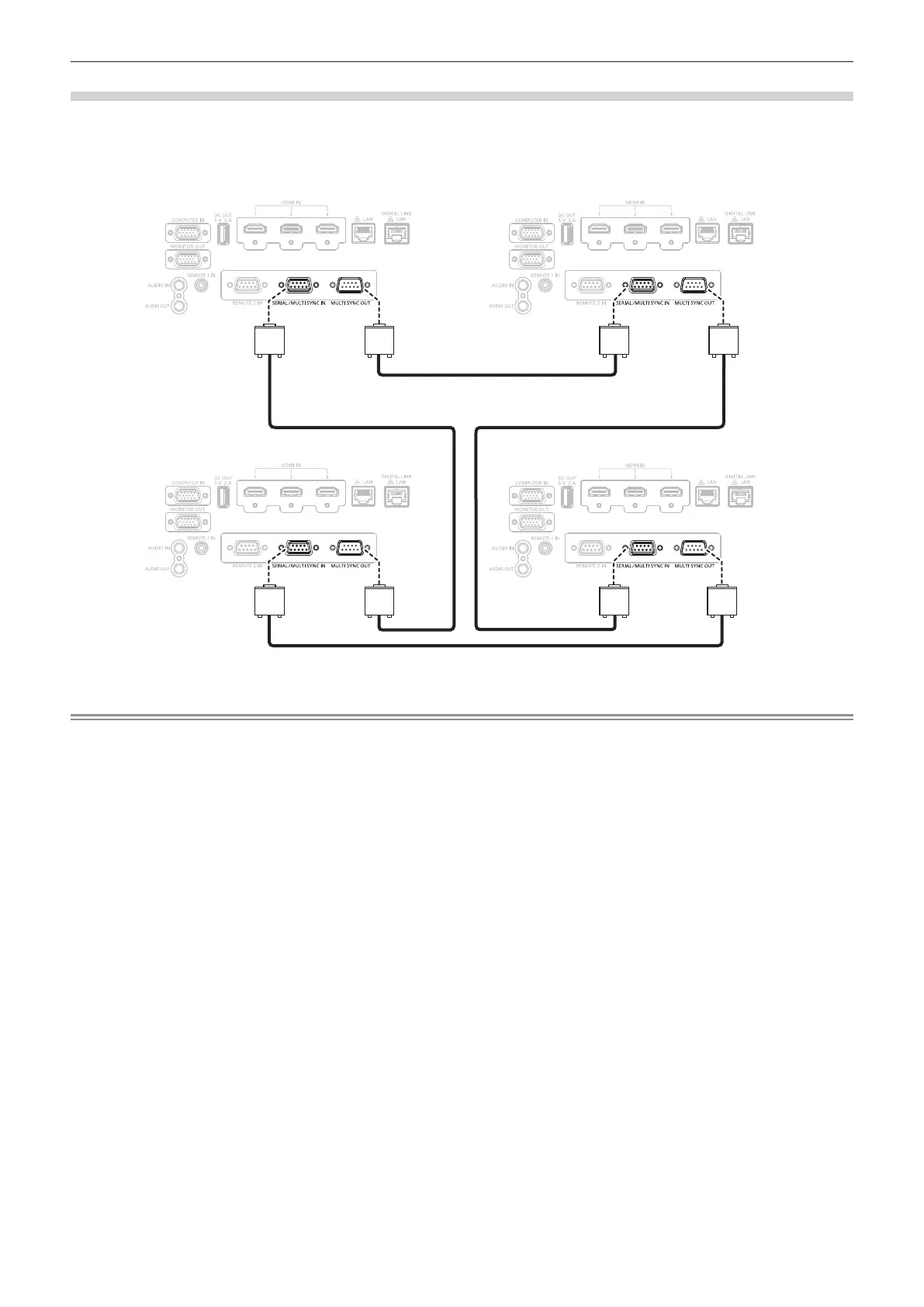

Connecting example
Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization
function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64
projectors.
Connecting terminals of the rst projector
Connecting terminals of the fourth projector
Connecting terminals of the second projector
Connecting terminals of the third projector
Communication cable (straight all connected)
Communication cable (straight all connected)
Note
f
The contrast synchronization function and the shutter synchronization function can be used simultaneously.
f
For details on the settings of the contrast synchronization function and the shutter synchronization function, refer to the [PROJECTOR
SETUP] menu → [MULTI PROJECTOR SYNC] (
x
page 113).
f
If there are any projectors which you do not want to synchronize within the linked projectors, set [CONTRAST SYNC] and [SHUTTER
SYNC] to [OFF] individually.
