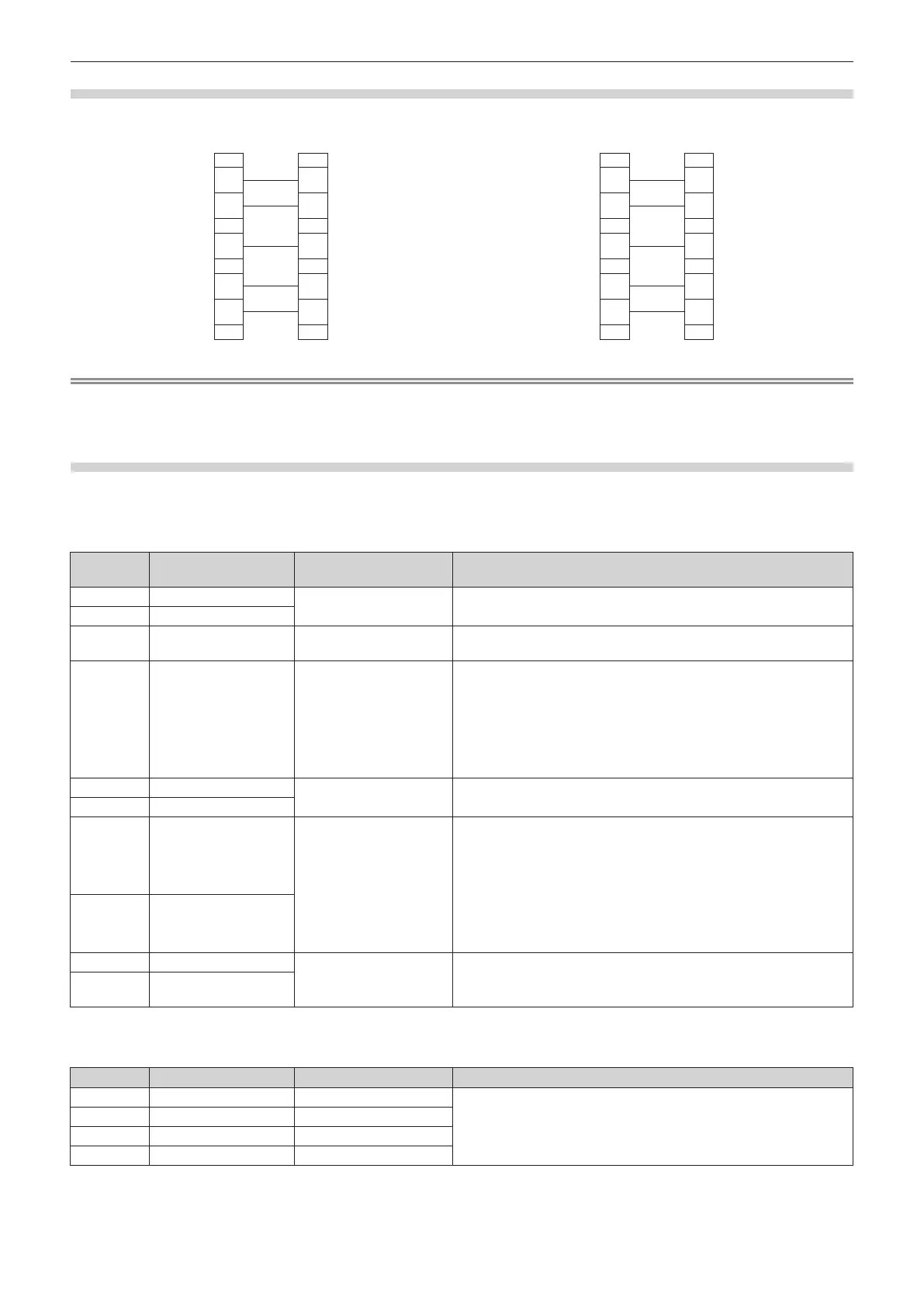

Cable specication
1 NC NC 1
2 2
3 3
4 4
5 5
6 NC NC 6
7 7
8 8
9 NC NC 9
1 NC NC 1
2 2
3 3
4 4
5 5
6 NC NC 6
7 7
8 8
9 NC NC 9
When connected to a computer
Projector
(<SERIAL/MULTI PROJECTOR
SYNC IN> terminal)
Computer
(DTE specifications)
When multiple projectors are connected
Projector 1
(<SERIAL/MULTI PROJECTOR
SYNC OUT> terminal)
Projector 2
(<SERIAL/MULTI PROJECTOR
SYNC IN> terminal)
Note
f A cable with pin (4) connected to each other such as full wired straight cable is required as the cable when using the contrast
synchronization function or the shutter synchronization function. Also, set the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC]
when using the contrast synchronization function or the shutter synchronization function.
Control command
The following table lists the commands that can be used to control the projector using a computer.
r Projector control command
Command Details
Parameter/response
string
Remark (parameter)
PON Power on
― To check if the power is on, use the “Power query” command.
POF Power standby
QPW Power query
000
001
STANDBY
Power on
IIS
Switching the input
signal
RG1 RGB1
RG2 RGB2
DVI DVI-D
HD1 HDMI
DL1 DIGITAL LINK
SD1 SDI
OSH Shutter control 0 OPEN
QSH Shutter status query 1 CLOSE
VSE Aspect ratio switch
0 DEFAULT/AUTO
1 4:3
2 16:9
5 THROUGH
QSE
Aspect ratio settings
query
6 HV FIT
9 H FIT
10 V FIT
OCS Sub memory switch
01 - 96 Sub memory number
QSB
Sub memory status
query
r Lens control command
Command Sub command Details Remark
VXX LNSI2 Lens H shift
+00000 = Fine adjustment 1+, +00001 = Fine adjustment 1
- , +00100
= Fine adjustment 2+, +00101 = Fine adjustment 2 - , +00200 = Coarse
adjustment+, +00201 = Coarse adjustment -
VXX LNSI3 Lens V shift
VXX LNSI4 Lens focus
VXX LNSI5 Lens zoom
