Panasonic PT-RZ120

Chapter 1 Preparation — About your projector
30 - ENGLISH

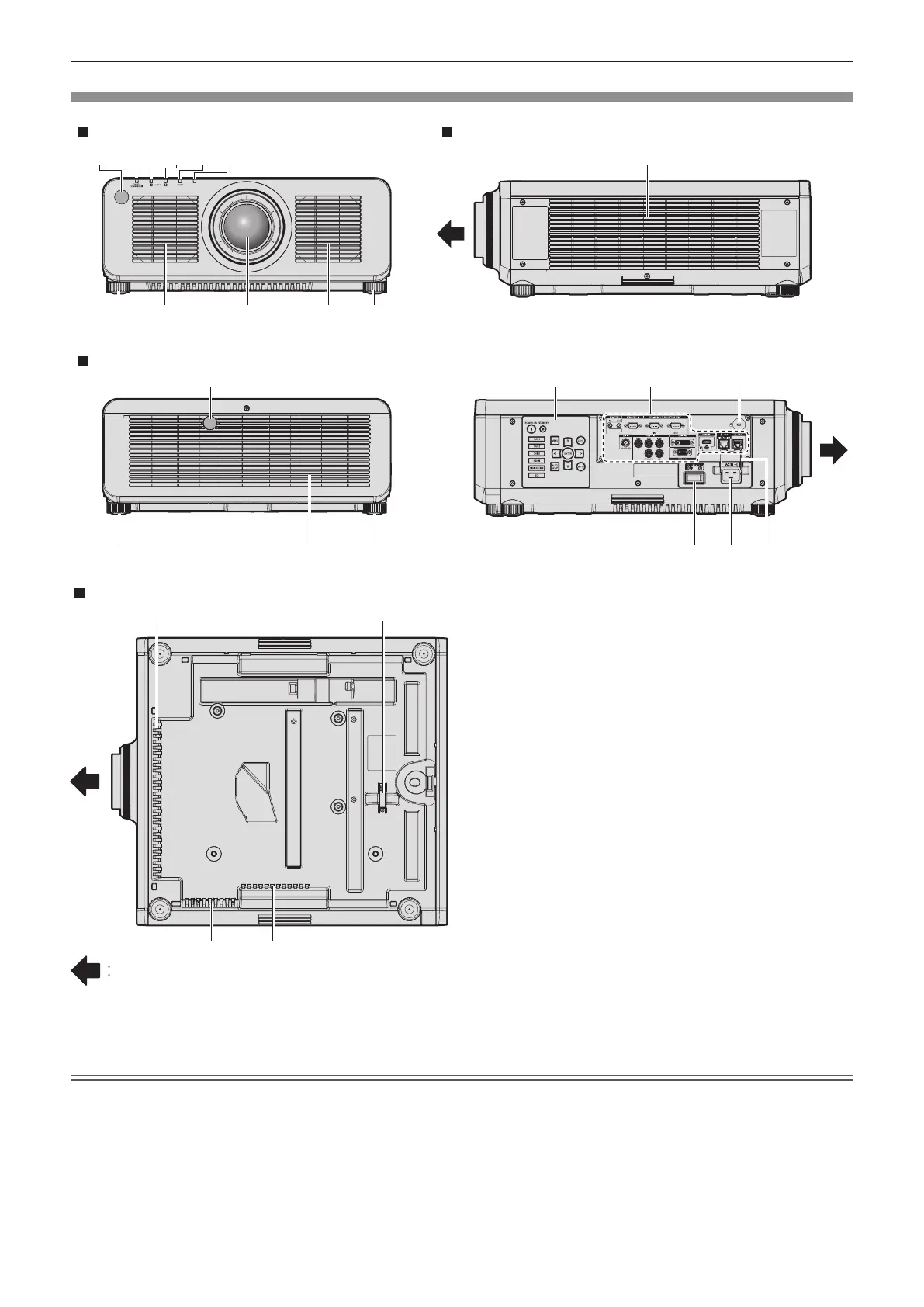

Projector body
1 2 3 4 5 6
7 7
10
8
8
11
8
9
16 17
1413 15
18
77
Front
Side
Rear
8
8 8
12
Projection direction
Bottom
1 Remote control signal receiver (front)
2 Power indicator <ON (G)/STANDBY (R)>
Indicates the status of the power.
3 Light source indicator <LIGHT1>
Indicates the status of light source 1.
4 Light source indicator <LIGHT2>
Indicates the status of light source 2.
5 Temperature indicator <TEMP>
Indicates the internal temperature status.
6 (Not used with this projector)
7 Adjustable feet
Adjusts the projection angle.
8 Air intake port
9 Projection lens
(Only models with lens)
10 Remote control signal receiver (rear)
11 Air exhaust port
12 Burglar hook port
Attaches a burglar prevention cable, etc.
13 Control panel (x page 31)
14 Connecting terminals (x page 32)
15 Security slot
This security slot is compatible with the Kensington security
cables.
16 <MAIN POWER> switch
Turns on/off the main power.
17 <AC IN> terminal
Connect the supplied power cord.
18 Power cord holder
Attention
f Do not block the ventilation ports (intake and exhaust) of the projector.
