6 Disassembly and Assembly Instructions
Caution Note:
• This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo-
nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service
manual)
• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.

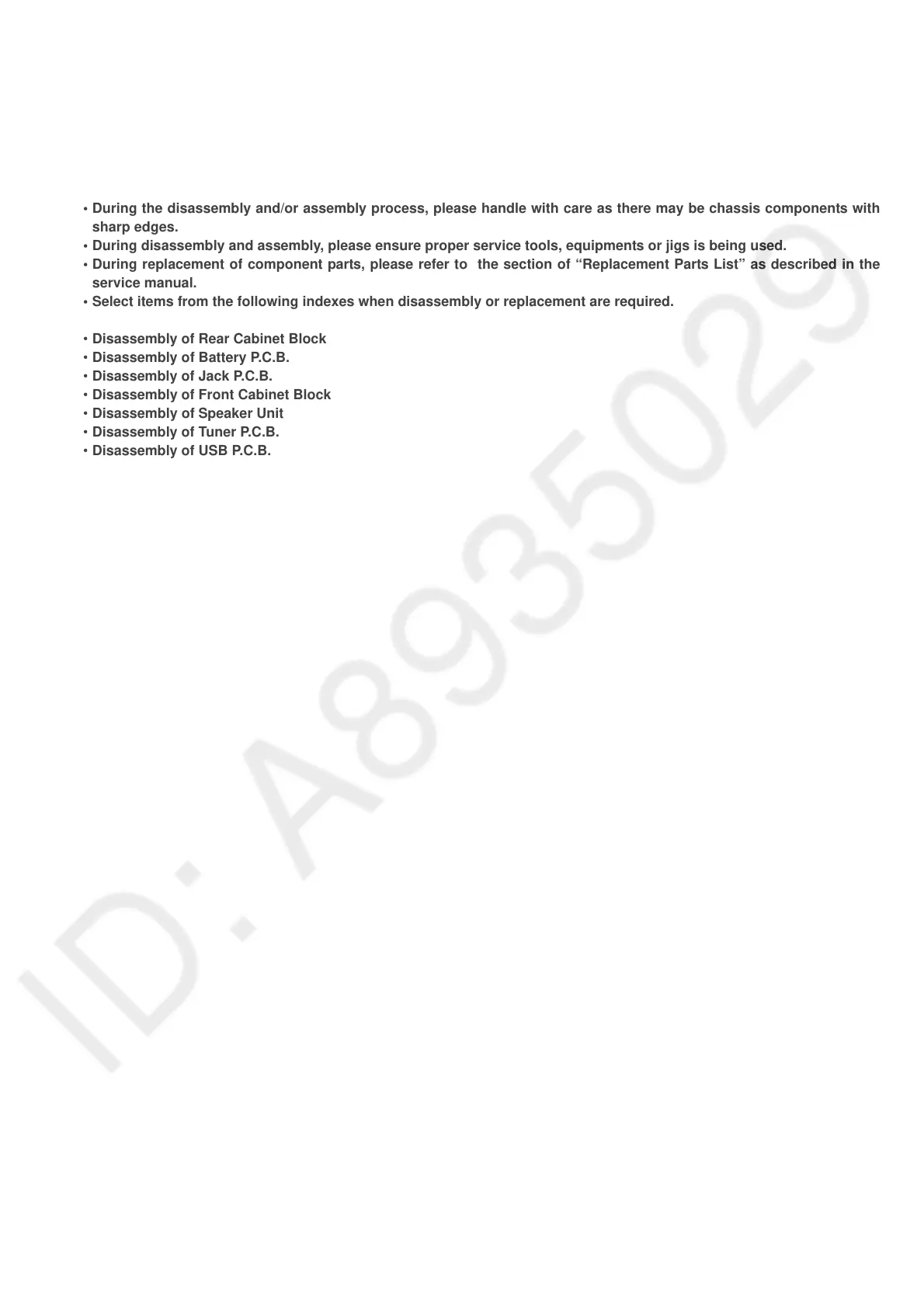

• During the disassembly and/or assembly process, please handle with care as there may be chassis components with
sharp edges.
• During disassembly and assembly, please ensure proper service tools, equipments or jigs is being used.
• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the
service manual.
• Select items from the following indexes when disassembly or replacement are required.
• Disassembly of Rear Cabinet Block
• Disassembly of Battery P.C.B.
• Disassembly of Jack P.C.B.
• Disassembly of Front Cabinet Block
• Disassembly of Speaker Unit
• Disassembly of Tuner P.C.B.
• Disassembly of USB P.C.B.
