6.6. Disassembly of Jack P.C.B.
• Refer to “Disassembly of Rear Cabinet Block”.

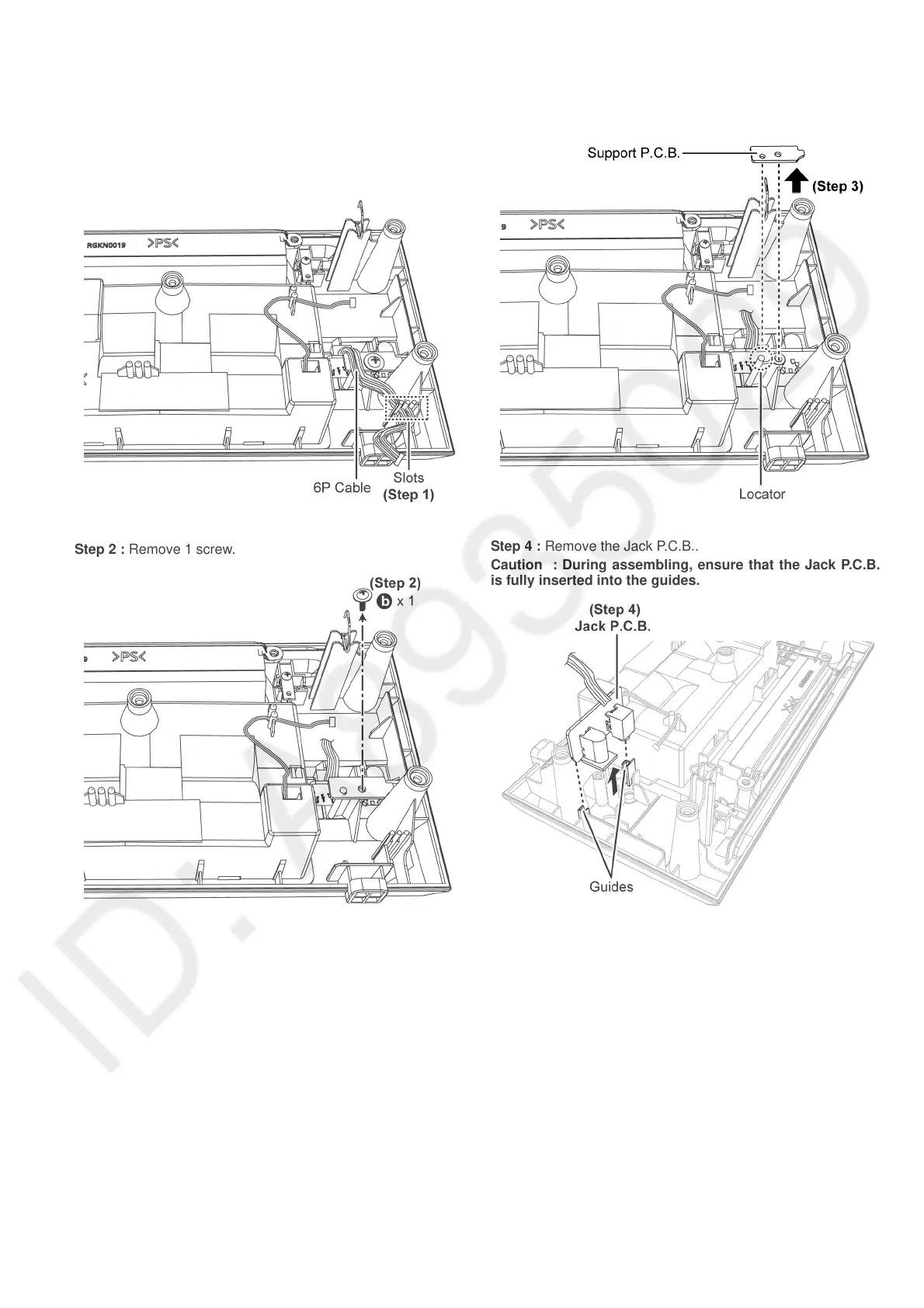

Step 1 : Release the 6P Cable from the slots.
Caution : During assembling, ensure that the 6P cable is
properly inserted into the slots.
Step 2 : Remove 1 screw.
Step 3 : Remove the Support P.C.B..
Caution 1 : Keep the Support P.C.B. in safe place and place
it back during assembling.
Step 4 : Remove the Jack P.C.B..
Caution : During assembling, ensure that the Jack P.C.B.
is fully inserted into the guides.
To Next Page
