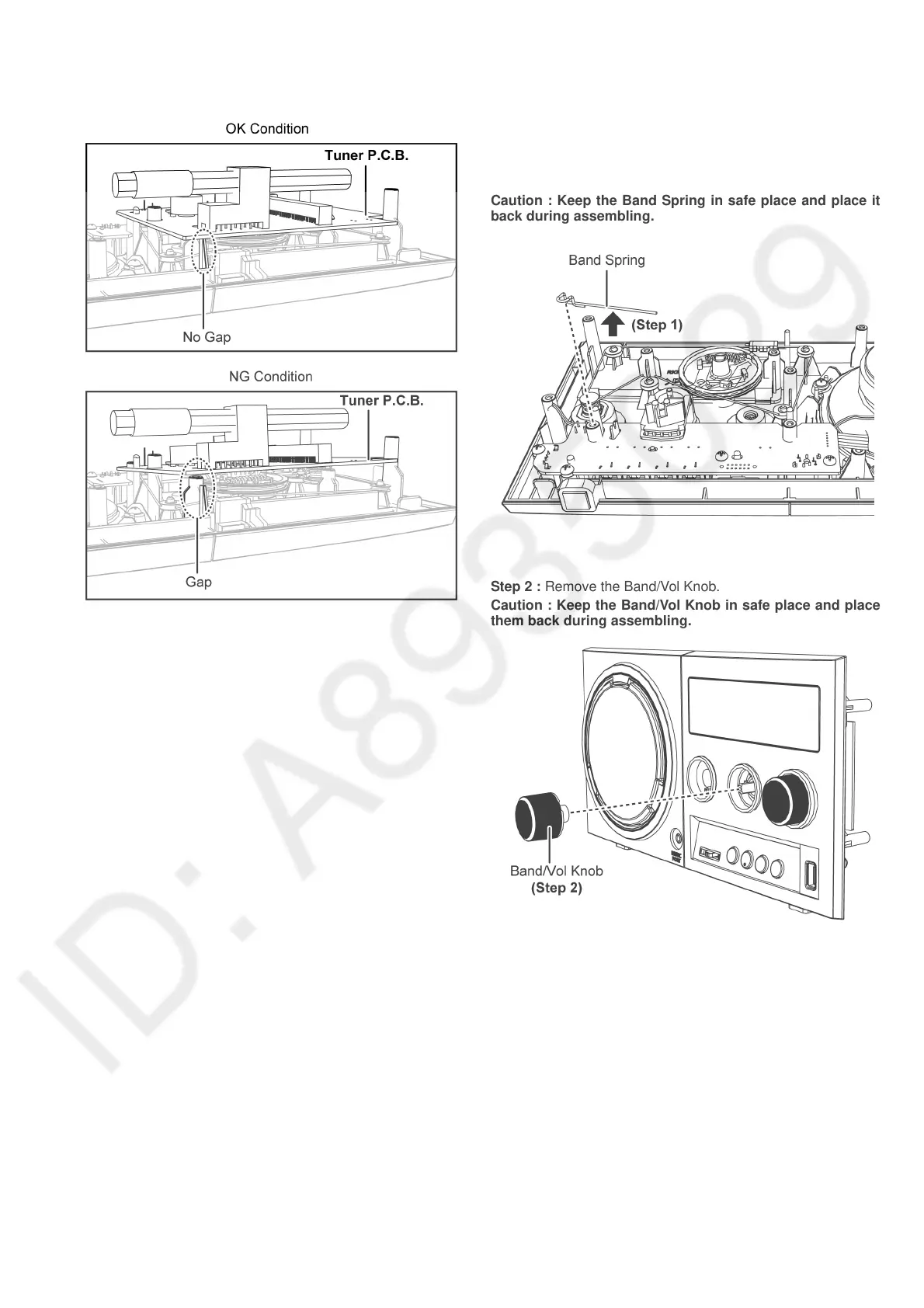

Caution : Ensure that the Tuner P.C.B. is fully seated on to
the guide as shown.
6.10. Disassembly of USB P.C.B.
• Refer to “Disassembly of Rear Cabinet Block”.
• Refer to “Disassembly of Front Cabinet Block”.
• Refer to “Disassembly of Tuner P.C.B.”.
Step 1 : Remove the Band Spring.
Caution : Keep the Band Spring in safe place and place it
back during assembling.
Step 2 : Remove the Band/Vol Knob.
Caution : Keep the Band/Vol Knob in safe place and place
them back during assembling.
