Panasonic RF-800UGA - Page 18

18

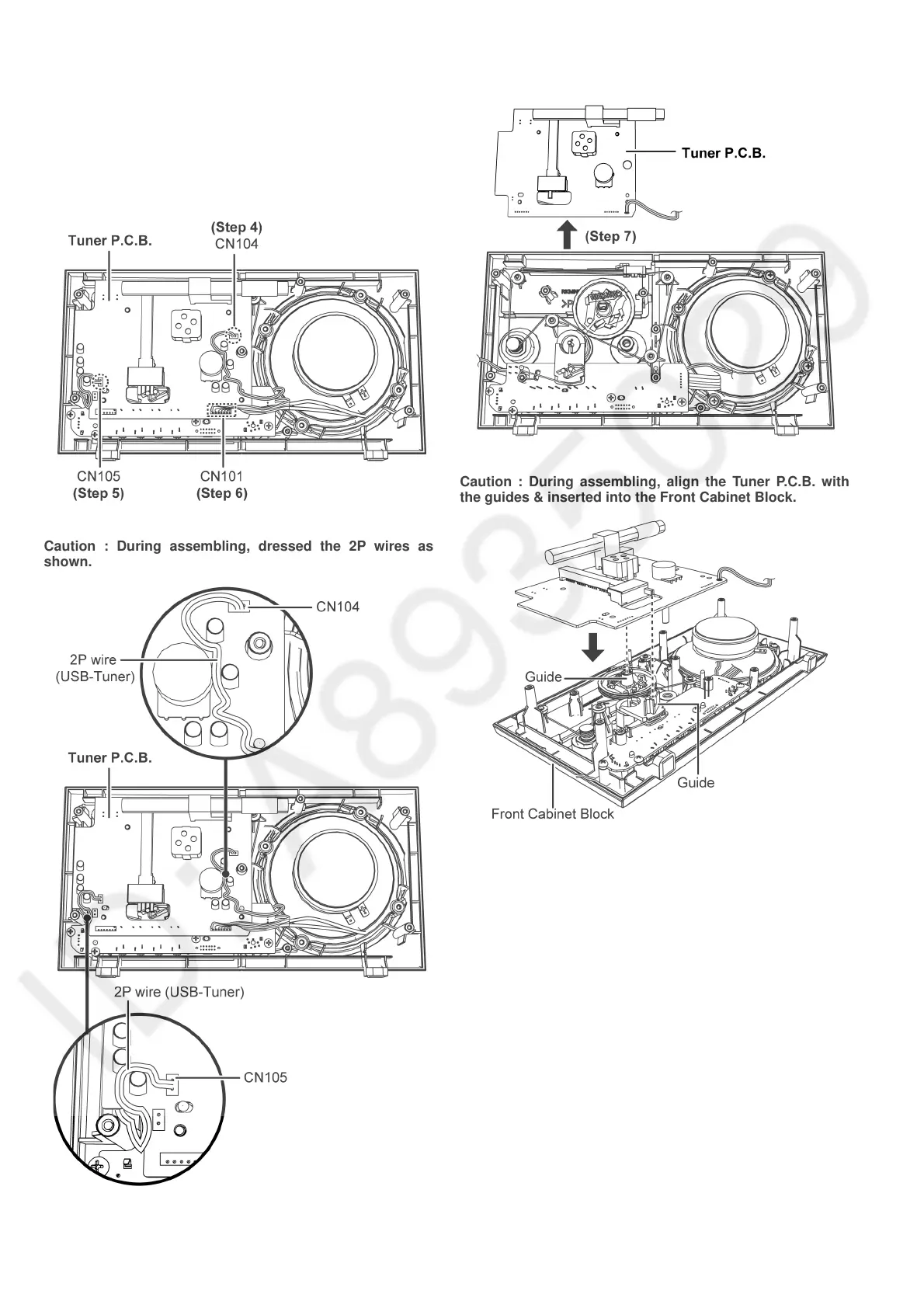

Step 4 : Detach 2P cable at the connector (CN104) on the
Tuner P.C.B..
Step 5 : Detach 2P cable at the connector (CN105) on the
Tuner P.C.B..
Step 6 : Detach 6P cable at the connector (CN101) on the
Tuner P.C.B..
Caution : During assembling, dressed the 2P wires as
shown.
Step 7 : Remove the Tuner P.C.B..
Caution : During assembling, align the Tuner P.C.B. with
the guides & inserted into the Front Cabinet Block.
