6.7. Disassembly of Front Cabinet
Block
• Refer to “Disassembly of Rear Cabinet Block”.

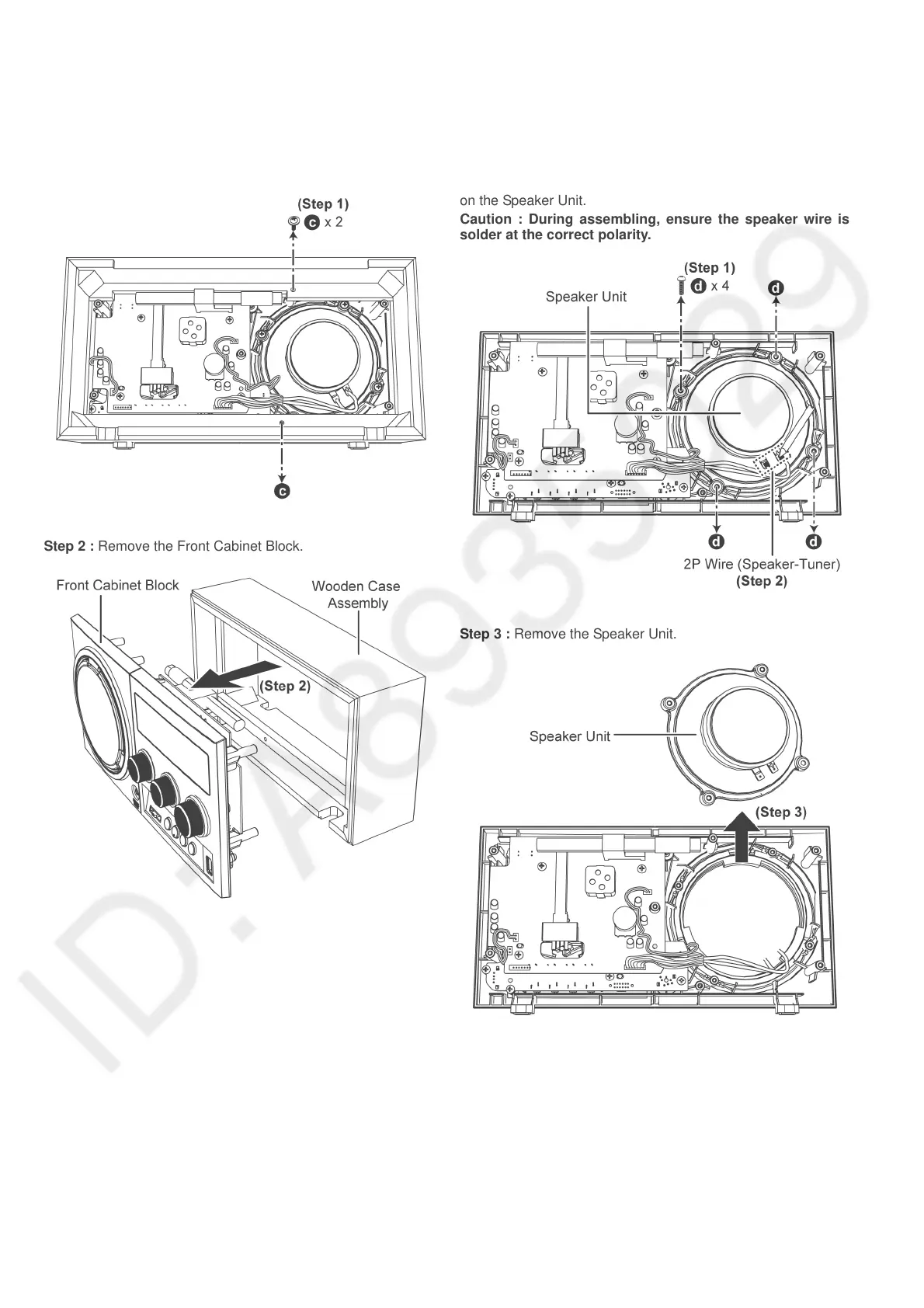

Step 1 : Remove 2 screws.
Step 2 : Remove the Front Cabinet Block.
6.8. Disassembly of Speaker Unit
• Refer to “Disassembly of Rear Cabinet Block”.
• Refer to “Disassembly of Front Cabinet Block”.
Step 1 : Remove 4 screws.
Step 2 : Desolder the 2P Wire (Speaker-Tuner) at the terminals
on the Speaker Unit.
Caution : During assembling, ensure the speaker wire is
solder at the correct polarity.
Step 3 : Remove the Speaker Unit.
