Panasonic RF-800UGA - Electrical Replacement Parts List

40

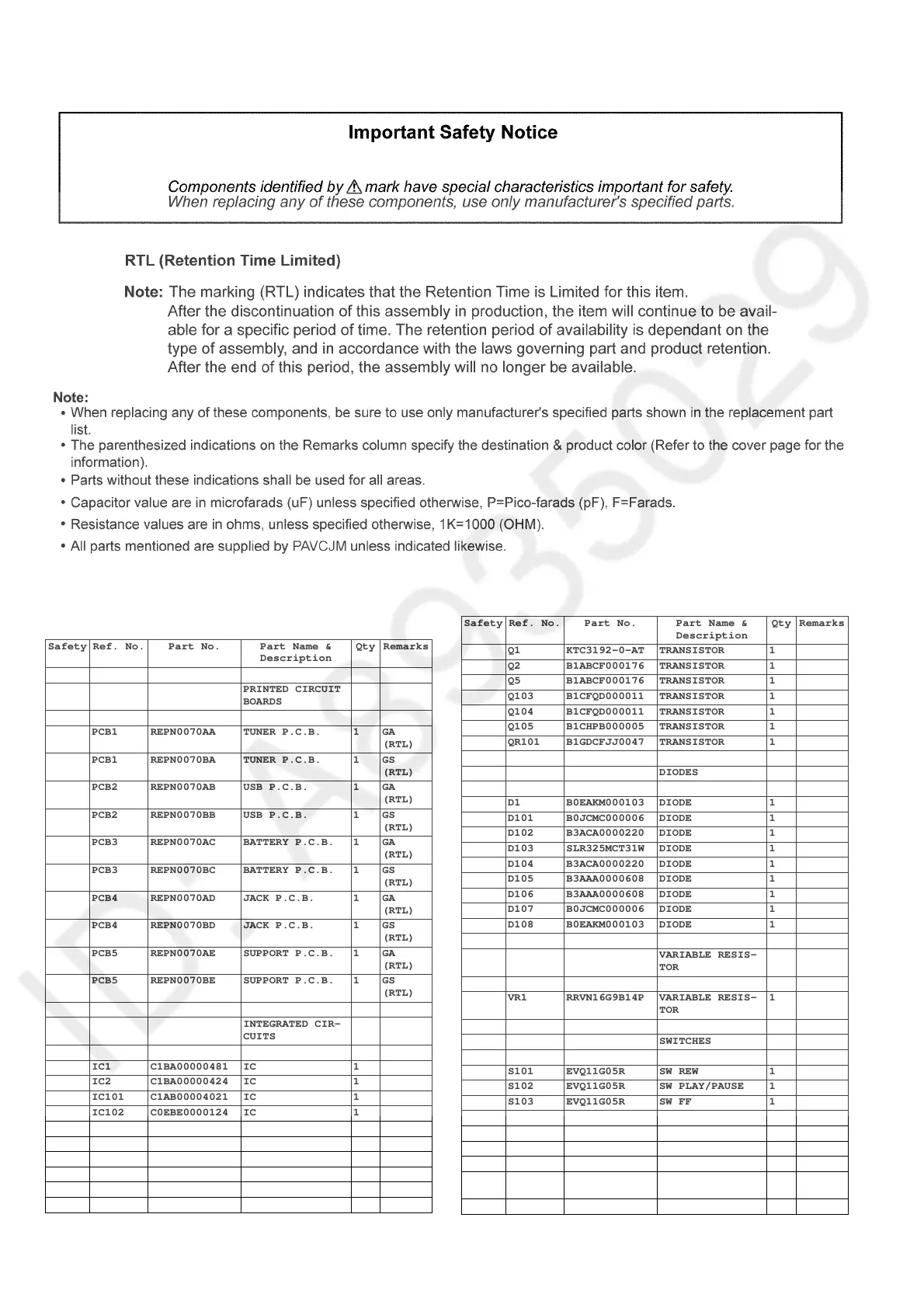

12.2. Electrical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 REPN0070AA TUNER P.C.B. 1 GA
(RTL)
PCB1 REPN0070BA TUNER P.C.B. 1 GS
(RTL)
PCB2 REPN0070AB USB P.C.B. 1 GA
(RTL)
PCB2 REPN0070BB USB P.C.B. 1 GS
(RTL)
PCB3 REPN0070AC BATTERY P.C.B. 1 GA
(RTL)
PCB3 REPN0070BC BATTERY P.C.B. 1 GS
(RTL)
PCB4 REPN0070AD JACK P.C.B. 1 GA
(RTL)
PCB4 REPN0070BD JACK P.C.B. 1 GS
(RTL)
PCB5 REPN0070AE SUPPORT P.C.B. 1 GA
(RTL)
PCB5 REPN0070BE SUPPORT P.C.B. 1 GS
(RTL)
INTEGRATED CIR-
CUITS
IC1 C1BA00000481 IC 1
IC2 C1BA00000424 IC 1
IC101 C1AB00004021 IC 1
IC102 C0EBE0000124 IC 1
IC104 C0CBABE00023 IC 1
IC105 C1AB00004024 IC 1
IC106 RSB12JS2T2R IC 1
TRANSISTORS
Q1 KTC3192-0-AT TRANSISTOR 1
Q2 B1ABCF000176 TRANSISTOR 1
Q5 B1ABCF000176 TRANSISTOR 1
Q103 B1CFQD000011 TRANSISTOR 1
Q104 B1CFQD000011 TRANSISTOR 1
Q105 B1CHPB000005 TRANSISTOR 1
QR101 B1GDCFJJ0047 TRANSISTOR 1
DIODES
D1 B0EAKM000103 DIODE 1
D101 B0JCMC000006 DIODE 1
D102 B3ACA0000220 DIODE 1
D103 SLR325MCT31W DIODE 1
D104 B3ACA0000220 DIODE 1
D105 B3AAA0000608 DIODE 1
D106 B3AAA0000608 DIODE 1
D107 B0JCMC000006 DIODE 1
D108 B0EAKM000103 DIODE 1
VARIABLE RESIS-
TOR
VR1 RRVN16G9B14P VARIABLE RESIS-
TOR
1
SWITCHES
S101 EVQ11G05R SW REW 1
S102 EVQ11G05R SW PLAY/PAUSE 1
S103 EVQ11G05R SW FF 1
S104 EVQ11G05R SW REPEAT 1
SW1 RSSN4H005-C SW SELECTOR 1
SW101 RSSN4A006-B SW FUNCTION 1
VARIABLE CAPACI-
TOR
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
