Panasonic RF-800UGA - Mechanical Repacement Parts List

39

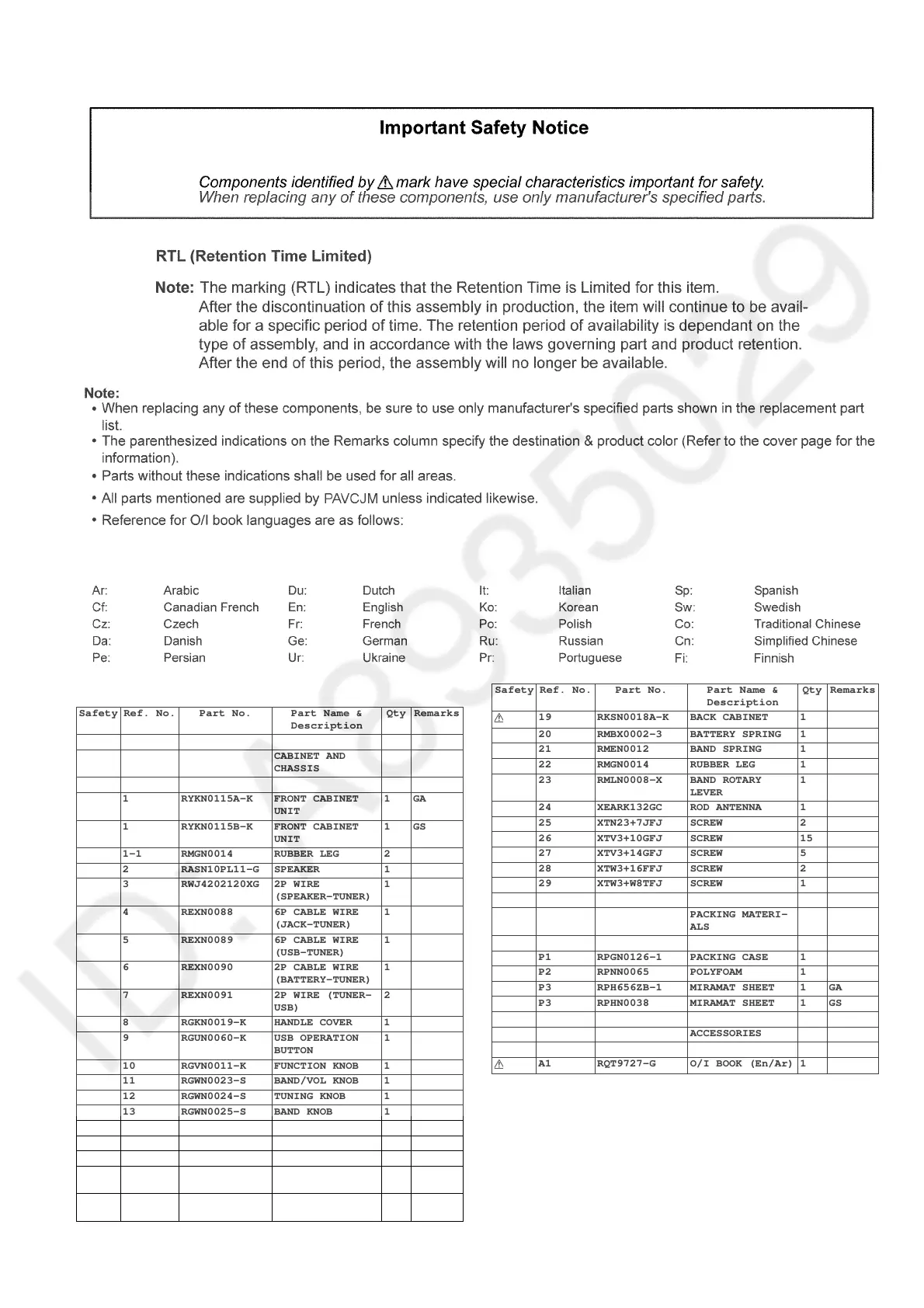

12.1.3. Mechanical Repacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 RYKN0115A-K FRONT CABINET
UNIT
1GA
1 RYKN0115B-K FRONT CABINET
UNIT
1GS
1-1 RMGN0014 RUBBER LEG 2
2 RASN10PL11-G SPEAKER 1
3 RWJ4202120XG 2P WIRE
(SPEAKER-TUNER)
1
4 REXN0088 6P CABLE WIRE
(JACK-TUNER)
1
5 REXN0089 6P CABLE WIRE
(USB-TUNER)
1
6 REXN0090 2P CABLE WIRE
(BATTERY-TUNER)
1
7 REXN0091 2P WIRE (TUNER-
USB)
2
8 RGKN0019-K HANDLE COVER 1
9 RGUN0060-K USB OPERATION
BUTTON
1
10 RGVN0011-K FUNCTION KNOB 1
11 RGWN0023-S BAND/VOL KNOB 1
12 RGWN0024-S TUNING KNOB 1
13 RGWN0025-S BAND KNOB 1
14 RHWN0002 WASHER 1
15 RJCN0013 BATTERY TERMINAL 1
16 RJRN0018 ANTENNA TERMINAL 1
17 RYKN0117-K BATTERY COVER
ASS’Y
1
18 RKMN0028-K WOODEN CASE
ASS’Y
1
19 RKSN0018A-K BACK CABINET 1
20 RMBX0002-3 BATTERY SPRING 1
21 RMEN0012 BAND SPRING 1
22 RMGN0014 RUBBER LEG 1
23 RMLN0008-X BAND ROTARY
LEVER
1
24 XEARK132GC ROD ANTENNA 1
25 XTN23+7JFJ SCREW 2
26 XTV3+10GFJ SCREW 15
27 XTV3+14GFJ SCREW 5
28 XTW3+16FFJ SCREW 2
29 XTW3+W8TFJ SCREW 1
PACKING MATERI-
ALS
P1 RPGN0126-1 PACKING CASE 1
P2 RPNN0065 POLYFOAM 1
P3 RPH656ZB-1 MIRAMAT SHEET 1 GA
P3 RPHN0038 MIRAMAT SHEET 1 GS
ACCESSORIES
A1 RQT9727-G O/I BOOK (En/Ar) 1
