Panasonic RF-800UGA - Disassembly Flow Chart; Types of Screws; Main Parts Location Diagram

12

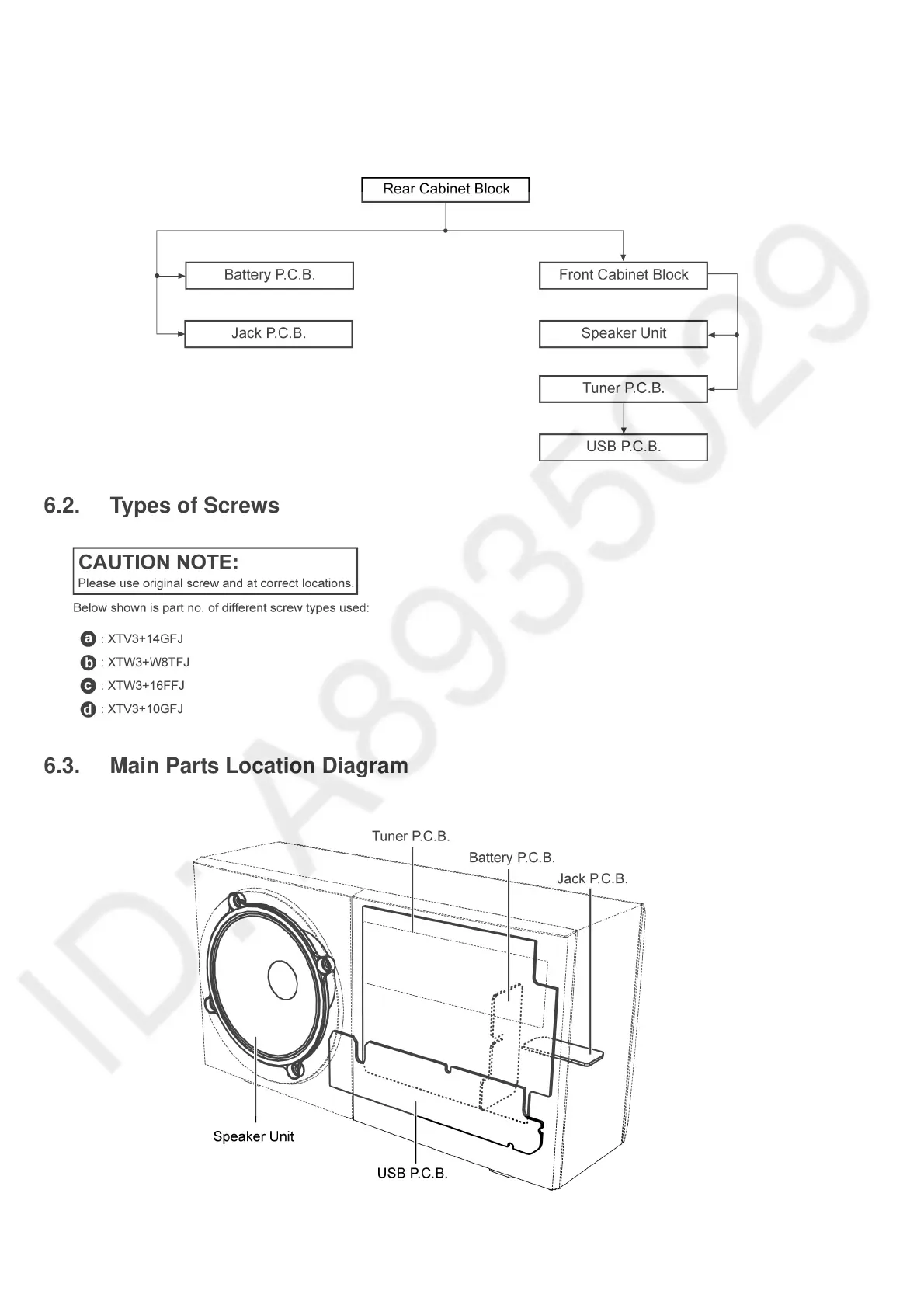

6.1. Disassembly flow chart
The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the ser-
vicing.
To assemble the unit, reverse the steps shown in the chart below.
6.2. Types of Screws
6.3. Main Parts Location Diagram
