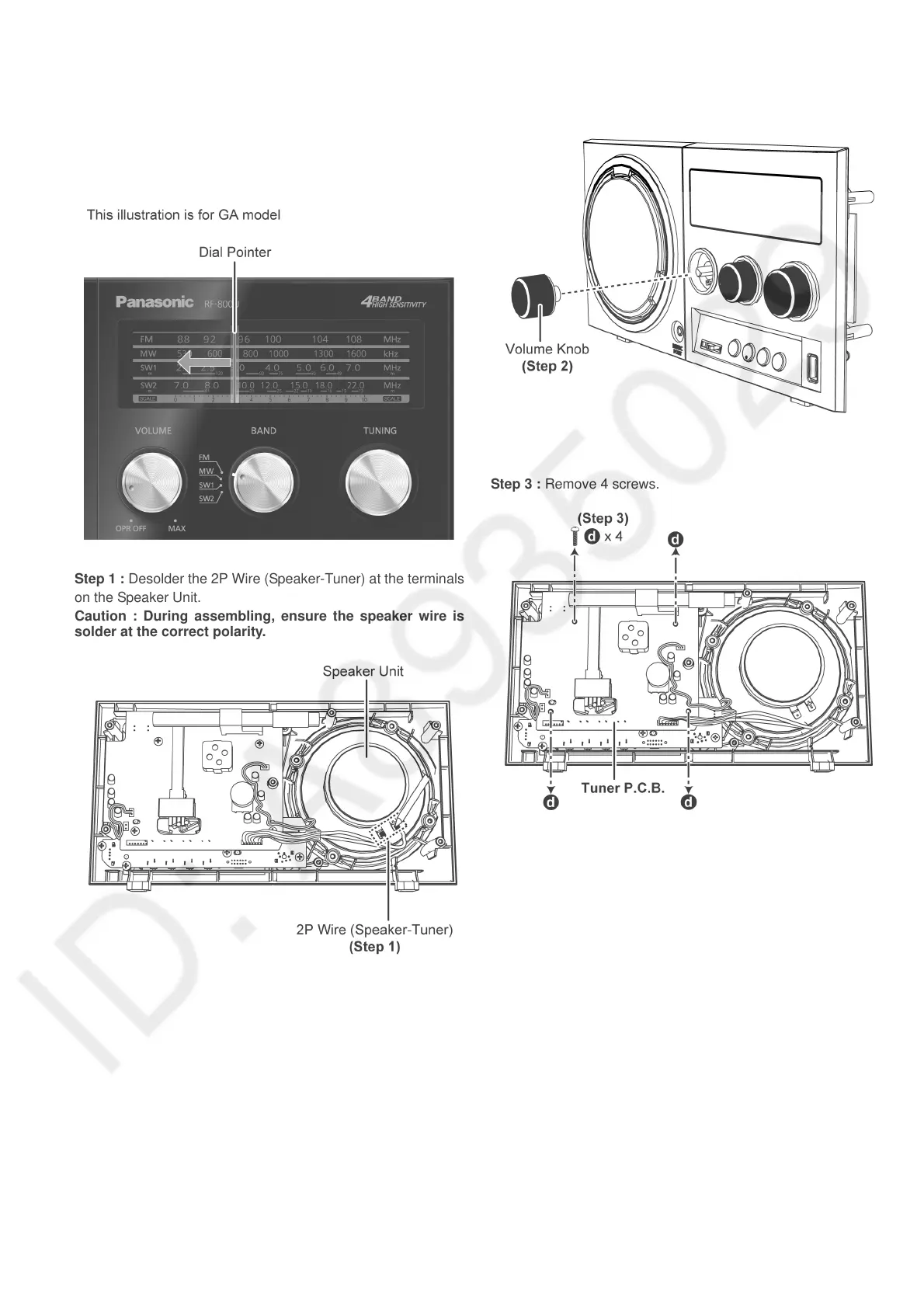

6.9. Disassembly of Tuner P.C.B.
• Refer to “Disassembly of Rear Cabinet Block”.
• Refer to “Disassembly of Front Cabinet Block”.
Preparation before assembling:
Turn the Dial Pointer to the end position.
Step 1 : Desolder the 2P Wire (Speaker-Tuner) at the terminals
on the Speaker Unit.
Caution : During assembling, ensure the speaker wire is
solder at the correct polarity.
Step 2 : Remove the Volume Knob.
Caution : Keep the Volume Knob in safe place and place it
back during assembling.
Step 3 : Remove 4 screws.
To Next Page
