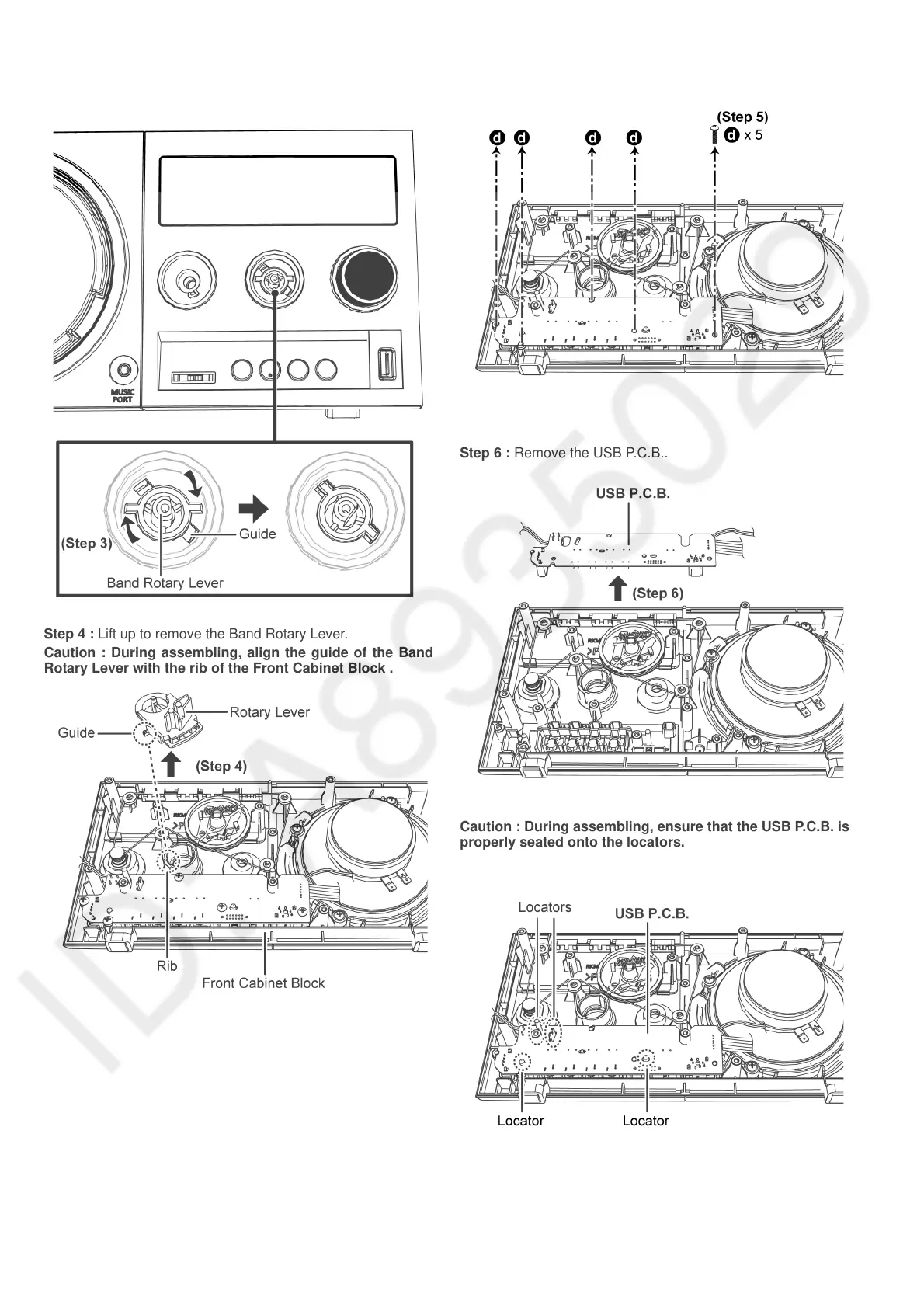

Step 3 : Turn the Band Rotary Lever clockwise towards to the
guide as shown.
Step 4 : Lift up to remove the Band Rotary Lever.
Caution : During assembling, align the guide of the Band
Rotary Lever with the rib of the Front Cabinet Block .
Step 5 : Remove 5 screws.
Step 6 : Remove the USB P.C.B..
Caution : During assembling, ensure that the USB P.C.B. is
properly seated onto the locators.
To Next Page
