Panasonic RF-800UGA - Page 23

23

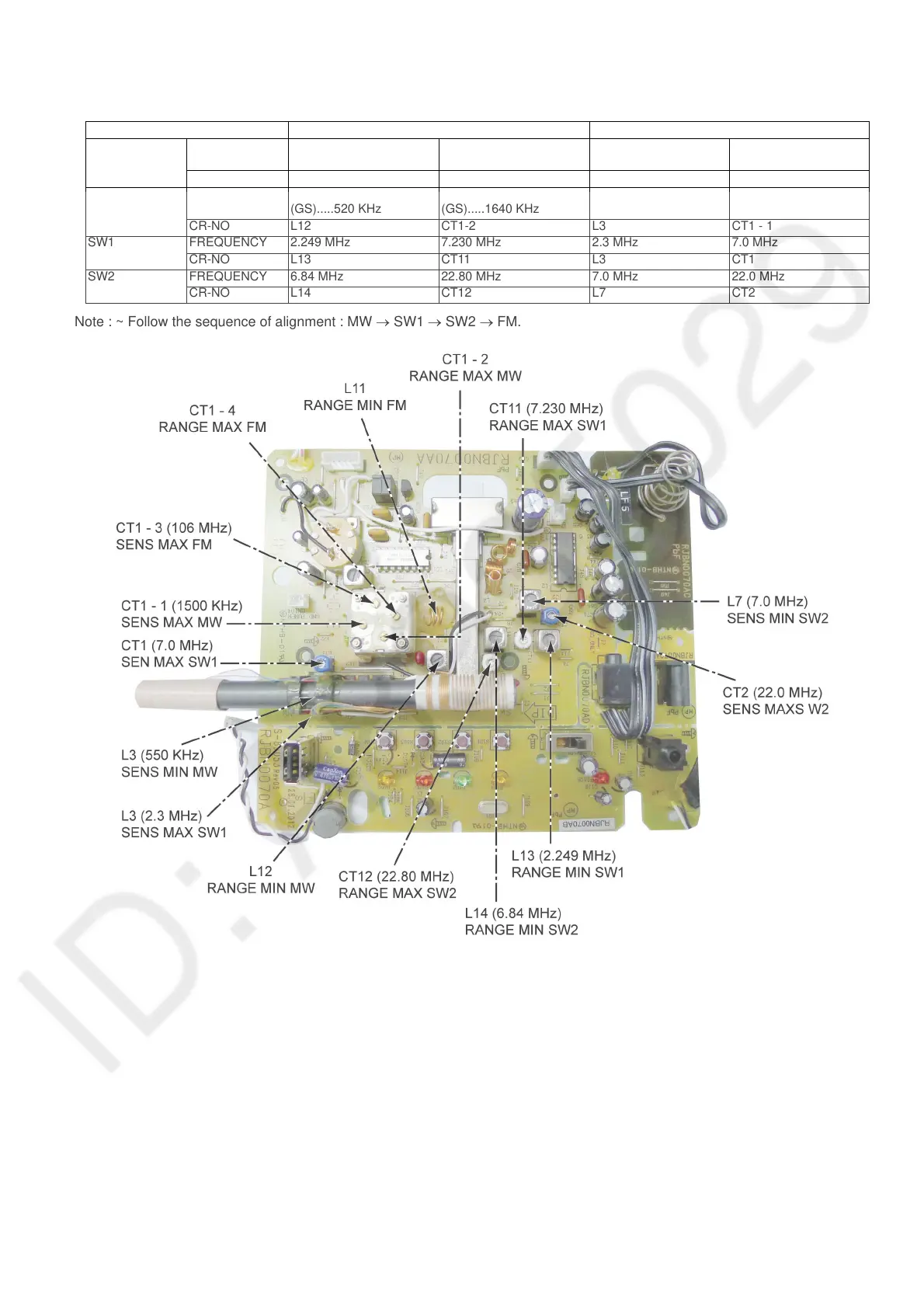

7.2.3. Alignment frequencies
Note : ~ Follow the sequence of alignment : MW → SW1 → SW2 → FM.
BAND OSC BLOCK LOCATION (RANGE ALIGNMENT) ANT BLOCK LOCATION (SENS ALIGNMENT)
FM FREQUENCY (GA).....86,2 MHz
(GS).....87,40 MHz
(GA).....109,2 MHz
(GS).....108,30 MHz
106 MHz
CR-NO L11 CT1 - 4 CT1-3
MW FREQUENCY (GA).....511 KHz
(GS).....520 KHz
(GA).....1650 KHz
(GS).....1640 KHz
550 KHz 1500 KHz
CR-NO L12 CT1-2 L3 CT1 - 1
SW1 FREQUENCY 2.249 MHz 7.230 MHz 2.3 MHz 7.0 MHz
CR-NO L13 CT11 L3 CT1
SW2 FREQUENCY 6.84 MHz 22.80 MHz 7.0 MHz 22.0 MHz
CR-NO L14 CT12 L7 CT2
