54
[^, RECEIVER]
Standby/on button.
Remote control
[1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
To enter radio frequencies and
channels.
[
≧
10, -/--]
To enter two digit channels.
[TUNER DIRECT TUNING]
To enable selection of radio stations by
frequency.

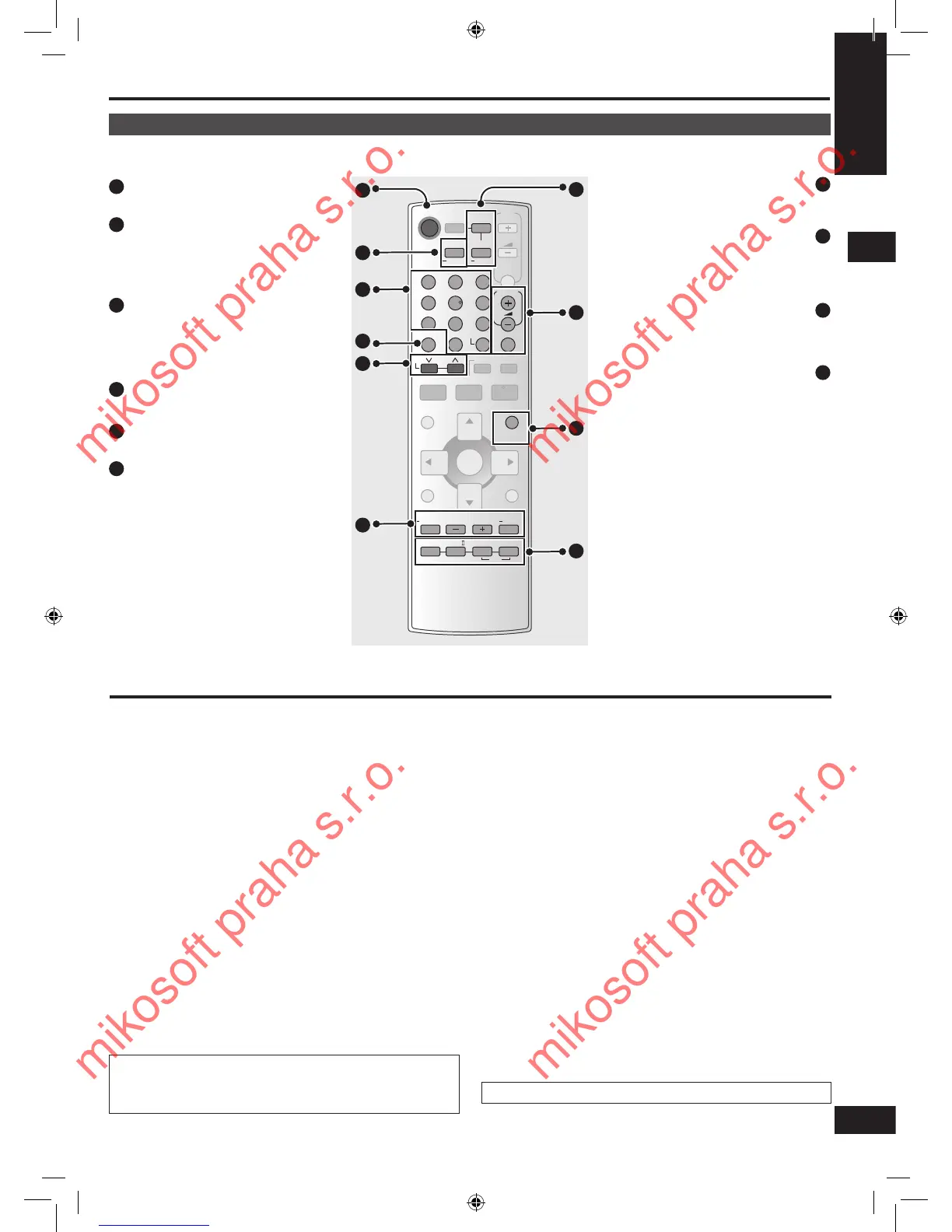

This page describes the buttons used to control this unit.
See the guide at page 21 for the buttons that control other units.
[OFF]
To cancel Dolby Pro Logic ΙΙ and SFC.
[% PLΙΙ]
For selecting a Dolby Pro Logic ΙΙ
mode: MOVIE, MUSIC or PANORAMA.
[MUSIC]
For selecting SFC modes: LIVE,
POP/ROCK, VOCAL, JAZZ, DANCE or
PARTY.
[MOVIE]
For selecting SFC modes: DRAMA,
ACTION, SPORTS, MUSICAL, GAME
or MONO.
[TUNER,
―
BAND]
For switching the remote control to
TUNER mode and selecting TUNER.
After selecting TUNER, press and hold
to switch between FM and AM.
[AUTO SETUP]
For auto speaker setup.
[u, 2, i, 1, SKIP]
For selecting preset radio channels.
[-EFFECT,
―
C.FOCUS]
Use when adjusting Dolby Pro Logic ΙΙ
effects.
Press and hold to select center focus
mode.
[-, +]
First select [-EFFECT] or [-LEVEL,
—
TEST], then press [-] or [+] to adjust.
[-LEVEL,
―
TEST]
Use when adjusting speaker level.
Press and hold to start the speaker test
signal.
[TV] [BD/DVR,
―
DVD-P]
Input mode and remote control mode
buttons.
[+, -, VOLUME]
To adjust the volume.
[MUTING]
To mute the volume.
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Specifications (DIN 45 500)
g AMPLIFIER SECTION
RMS output power: Dolby Digital Mode
T.H.D. 10% (Each channel driven)
1 kHz front CH 150 W per channel (6 Ω)
1 kHz surround CH 80 W per channel (4 Ω)
1 kHz center CH 80 W per channel (4 Ω)
Total RMS output power 540 W
RMS output power: STEREO Mode
T.H.D. 10%
1 kHz front CH 150 W per channel (6 Ω)
Total harmonic distortion
Half power at 1 kHz (Front CH) 0.5 % (6 Ω)
Input sensitivity
DVD-P, TV, BD/DVR 450 mV, IHF'66
S/N at rated power (6 Ω)
DVD-P, TV, BD/DVR 80 dB (85 dB, IHF'66)
Input impedance
DVD-P, TV, BD/DVR 47 kΩ
Tone controls
BASS 50 Hz, +6 dB to -6 dB
TREBLE 20 kHz, +6 dB to -6 dB
Load impedance
Front (L/R) 6 Ω to 8 Ω
Surround (L/R) 4 Ω to 8 Ω
Center 4 Ω to 8 Ω
g FM TUNER SECTION
Frequency range 87.50 MHz to 108.00 MHz
Sensitivity
S/N 30 dB 1.9 µV/75 Ω
S/N 26 dB 1.8 µV/75 Ω
S/N 20 dB 1.6 µV/75 Ω
IHF usable sensitivity (IHF'58) 2.2 µV/75 Ω
IHF 46 dB stereo quieting sensitivity 22 µV/75 Ω
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 60 dB (71 dB, IHF)
STEREO 58 dB (65 dB, IHF)
Frequency response 20 Hz to 15 kHz, +1 dB, -2 dB
Image rejection at 98 MHz 40 dB
IF rejection at 98 MHz 70 dB
Stereo separation (1 kHz) 40 dB
Antenna terminal 75 Ω (unbalanced)
g AM TUNER SECTION
Frequency range 522 kHz to 1611 kHz (9 kHz steps)
530 kHz to 1620 kHz (10 kHz steps)
Sensitivity 500 µV/m
Selectivity (at 999 kHz) 35 dB
g GENERAL
Power supply AC 230 V to 240 V, 50 Hz
Power consumption 125 W
Dimensions (W x H x D) 430 mm x 105 mm x 389 mm
Mass approx. 4.0 kg
Power consumption in standby mode: 1 W
Notes:
1. Specifications are subject to change without notice.
2. Total harmonic distortion is measured by the digital spectrum
analyser.
Digital input OPTICAL 2
COAXIAL
1
HDMI Input
2
HDMI Output
1
Control guide
Control guide/Specifications
