Panasonic SA-HR50 - HDMI and VIERA Link HDAVI ControlTM; High-Quality Audio and Video with HDMI; HDMI Signal Flow; Using VIERA Link HDAVI Control

RQTV0259
6 7
ENGLISH
6 7

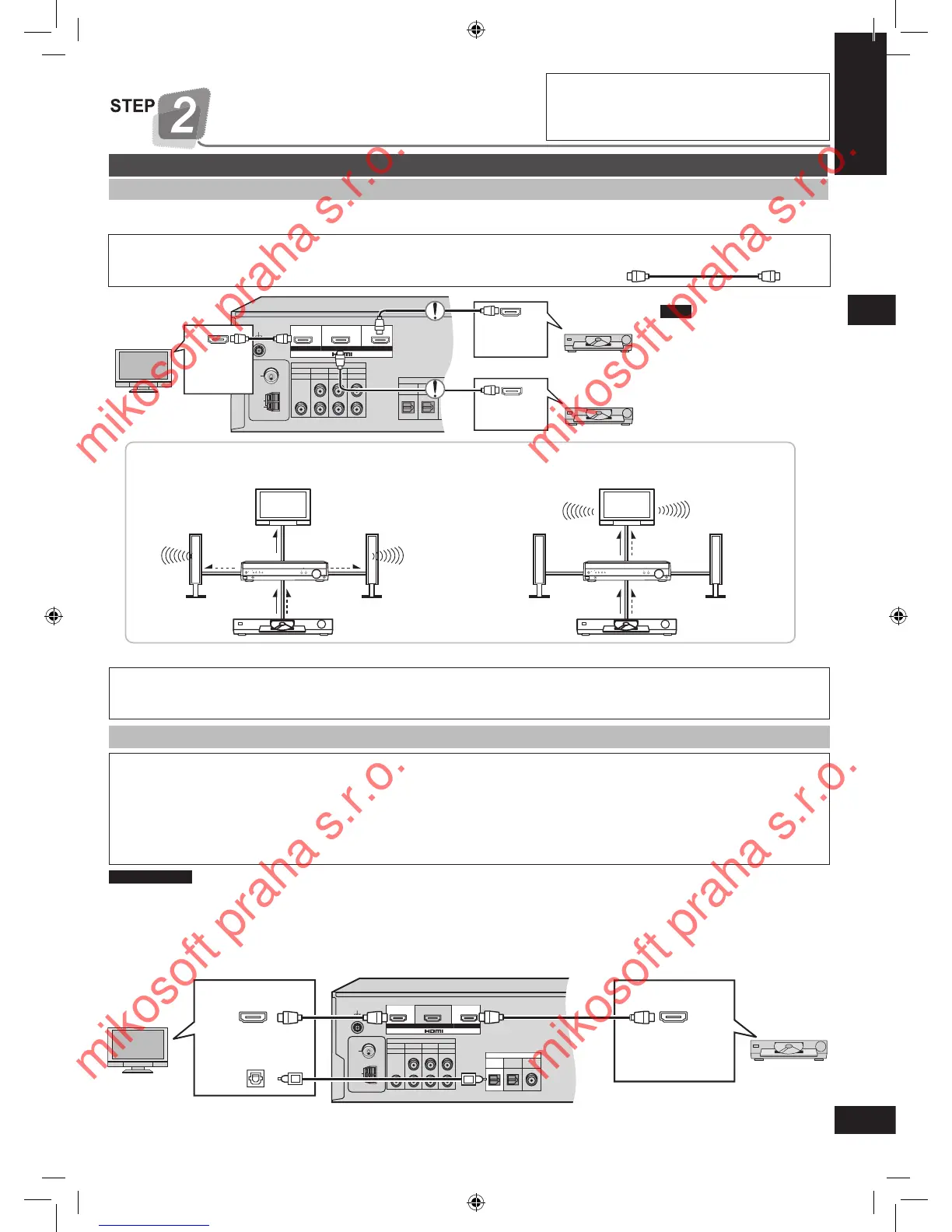

STEP 2 Home theater connections
76
INPUT SELECTOR
TUNE
MENU
RETUR
N
SETUP
SETUP MIC
VOLUME
ENTER
INPUT SELECTOR
TUNE
MENU
RETUR
N
SETU
P
SETUP MIC
VOLUME
ENTER
出力
(
D V
D
レ コ ーダー)
SU BWOO FER
OUT
LOOP
ANT
GND
FM
ANT
AM
ANT
75 Ω
LOOP
EXT
AUDIO
R
L
R
L L
R
DVD- P
TV
BD/D VR
IN
IN
IN
OPT 2 OPT 1 COAXIAL
BD/DVR DVD-P
TV
DIGITAL IN
OUT
(DVD-P) IN
(BD/DVR) IN
High-quality audio and video simply with HDMI connection
The HDMI (High Definition Multimedia Interface) connection means you only need one cable to transmit digital audio and video
between two pieces of equipment.
•
Rear panel
DVD player
TV HDMI
DVD HDMI
Audio and video signal flow when you have used HDMI connections
The audio and video signals from DVD equipment pass through to the television even if this unit is set to standby.
When this unit is on
TV
Speakers
This unit
DVD equipment
Video
Audio
Audio
Video Audio
When this unit is in
standby mode
(in standby ON condition,
➡ page 13)
TV
Speakers
This unit
DVD equipment
Video
Audio
Video
Audio
Audio signals from HDMI connection takes priority to digital terminal connections (➡ page 8).
This unit’s HDMI can carry video signals up to 1125p (1080p) (even when this unit is in standby mode).
1125p: a progressive (non-interlace) scanning system that sends 1,125 scan lines every 1/60 second.
•
•
Connect only DVD equipment
to the HDMI input terminal
of the unit. Connecting other
equipment may prevent the
output of sounds or show
distorted pictures.
(AV IN)
(AV OUT)
For your reference
DVD HDMI
(AV OUT)
BD player/
DVD recorder
出力
(
D V
D
レ コ ーダ ー)
SUB WOOFE R
OUT
LOOP
ANT
GN
D
FM
ANT
AM
ANT
75 Ω
LOOP
EXT
AUDIO
R
L
R
L L
R
DVD-P
TV
BD/DV R
IN
IN
IN
OPT 2 COAXIAL
BD/DVR DVD-P
OUT
(DVD-P) IN
(BD/DVR) IN
DIGITAL IN
OPT 1
TV
VIERA Link “HDAVI Control”
This convenient feature links control of your receiver and your other Panasonic home theater equipment. VIERA televisions and
DIGA DVD recorders connected with an HDMI cable can be controlled in this way. For details, refer to the operating instructions of
your other equipment.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI
CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other
manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
•
1. Connect your other Panasonic home theater equipment (VIERA Link “HDAVI Control” compatible VIERA television or
DIGA DVD recorder) with an HDMI cable (above).
2. Read your television’s operating instructions and make the settings necessary to activate the VIERA Link “HDAVI Control”.
3. Switch on all your equipment, then switch your television off then on again and check that images from DIGA appear
correctly. (Do this whenever you change connections or settings.)
TV (VIERA)
Rear panel
DVD recorder
(DIGA)
TV HDMI
(AV IN)
DIGITAL AUDIO
OUT (OPTICAL)
DVD HDMI
(AV OUT)
To take advantage of the multi-channel sounds now available with digital television, use a digital connection if your TV has a
digital output terminal.
To turn off VIERA Link “HDAVI Control”, “HDMI settings”, ➡ page 13.
•
•
Note
Using the VIERA Link “HDAVI Control”
Home theater connections
Preparation
HDMI and VIERA Link “HDAVI Control
TM
”
Use only HDMI cables that have the HDMI logo (as shown on the cover).
[Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m) etc.]
HDMI Cable (Use a Panasonic HDMI cable for best results.)
Turn off all components before making any connections.
Peripheral equipment and cables sold separately
unless otherwise indicated.
To connect equipment, refer to the appropriate
operating instructions.
•
•
•
