28

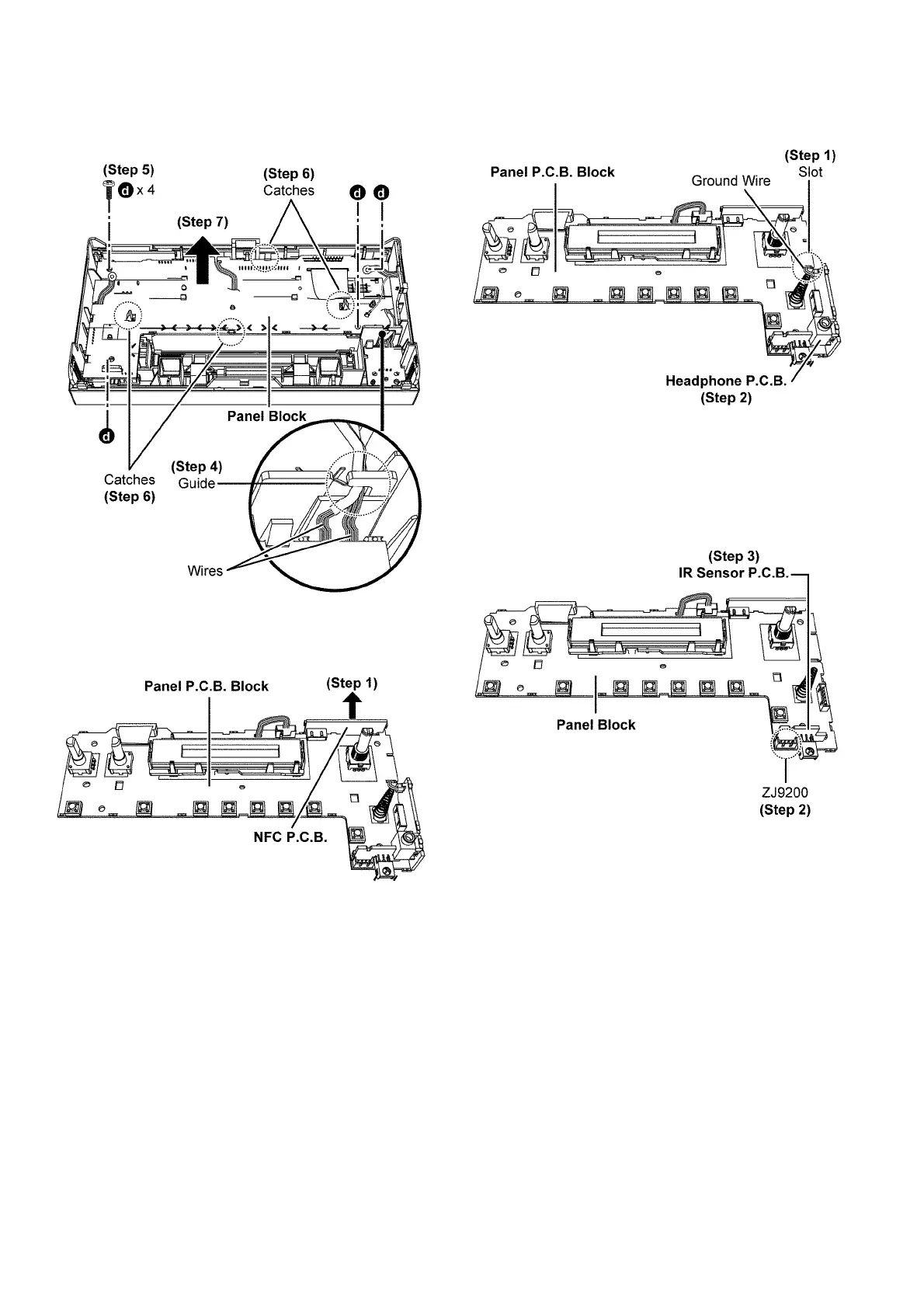

Step 4 : Release wires from the guide.
Step 5 : Remove 4 screws.
Step 6 : Release catches.
Step 7 : Remove Panel Block.
8.7.1. Disassembly of NFC P.C.B.
Step 1 : Remove NFC P.C.B. from Panel P.C.B..
8.7.2. Disassembly of Headphone P.C.B.
Step 1 : Release ground wire from slot.
Step 2 : Remove Headphone P.C.B..
8.7.3. Disassembly of IR Sensor P.C.B.
Step 1 : Remove Headphone P.C.B..
Step 2 : Detach IR Sensor P.C.B. at connector (ZJ9200) from
Panel Block.
Step 3 : Remove IR Sensor P.C.B..
